Product Overview
The Siemens 6ES7972-0AA02-0XA0 is a SIMATIC DP RS485 repeater for PROFIBUS and MPI bus systems. Siemens specifies connection of bus segments with up to 31 nodes, a maximum transmission rate of 12 Mbit/s and IP20 protection. The device is intended for electrical RS485 network extension and segmentation within supported SIMATIC communication architectures. Its official lifecycle is PM400: Announcement of product phase-out, with product phase-out since 01.10.2024. Procurement should verify the complete suffix, bus topology, transmission rate, node count, termination arrangement, power supply, mounting environment and existing network diagnostics before replacing or adding the repeater.
Commercial Status
Product Condition
Original new
Availability
In stock
Official Lifecycle
PM400: Announcement of product phase-out; Product phase-out since: 01.10.2024
Warranty
With 1 year warranty
Shipping
Worldwide shipping options available
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
Manufacturer
Siemens
Complete Part Number
6ES7972-0AA02-0XA0
Product Type
SIMATIC DP RS485 repeater
Product Family
RS 485 repeater for PROFIBUS
Supported Bus Systems
PROFIBUS and MPI
Maximum Nodes
31
Maximum Transfer Rate
12 Mbit/s
Degree of Protection
IP20
Official Lifecycle
PM400: Announcement of product phase-out
Product Phase-Out Since
01.10.2024
Net Weight
0.244 kg
Country of Origin
Germany

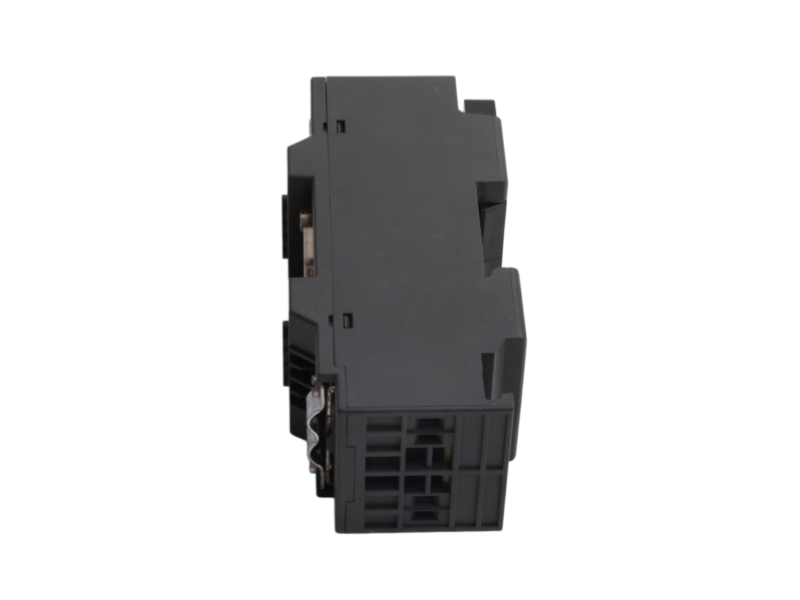

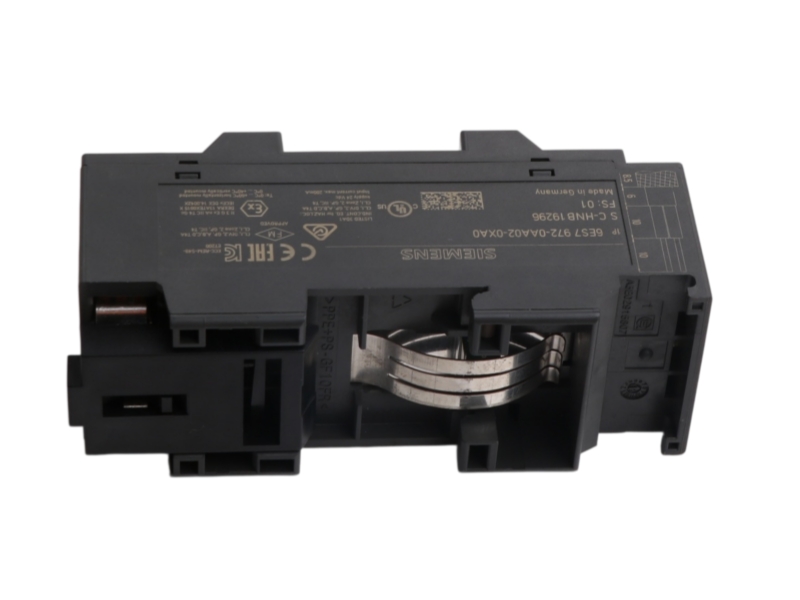

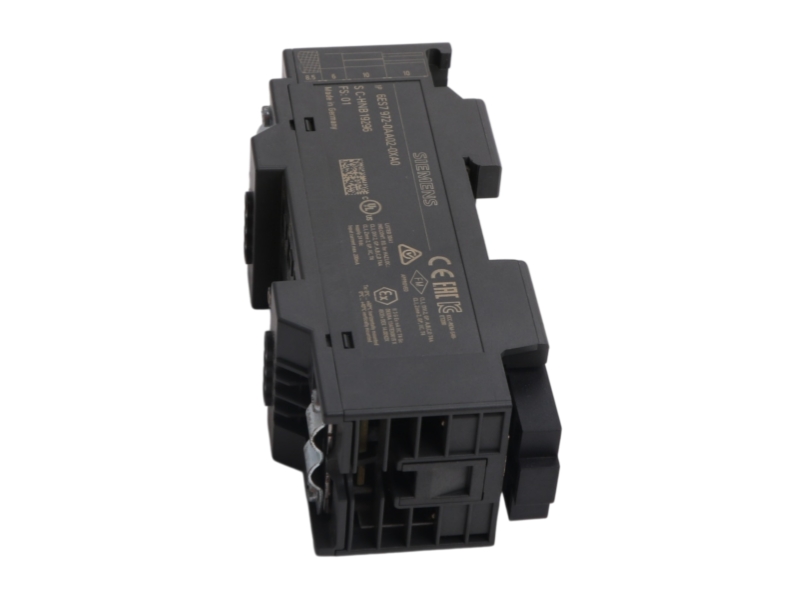

Product Photo Evidence
System Fit and Applications
System Fit
PROFIBUS and MPI electrical RS485 bus systems using the exact repeater variant
System Role
Extends and segments supported RS485 network sections between connected bus nodes
Typical Applications
PLC networks, distributed I/O communication, MPI service links, maintenance and repeater replacement
Critical Checks
Complete suffix, bus protocol, baud rate, node count, termination, segment length, power supply, mounting and diagnostic requirements
Compatibility and Procurement Checks
Verify the exact order number, PROFIBUS or MPI topology, maximum baud rate, node count per segment, cable type, termination, power wiring, mounting location and diagnostic requirements. Similar repeaters and earlier suffixes can have different lifecycle status or operating details and are not automatic replacements.
Lifecycle Note
Siemens lists PM400: Announcement of product phase-out for 6ES7972-0AA02-0XA0, with product phase-out since 01.10.2024. This status is not Discontinued. Confirm current support conditions and the existing PROFIBUS or MPI network configuration before procurement.
Frequently Asked Questions
What does 6ES7972-0AA02-0XA0 identify?
It identifies a Siemens SIMATIC DP RS485 repeater for PROFIBUS and MPI bus systems.
How many nodes can be connected?
Siemens specifies connection of bus systems with up to 31 nodes.
What is the maximum transfer rate?
The official product data states a maximum transmission rate of 12 Mbit/s.
What degree of protection is specified?
The exact repeater is specified with IP20 protection.
What is the official lifecycle status?
Siemens lists PM400: Announcement of product phase-out, effective from 01.10.2024; it is not Discontinued.
What should be checked before replacement?
Review the suffix, topology, baud rate, node count, cable, termination, supply and mounting conditions.
