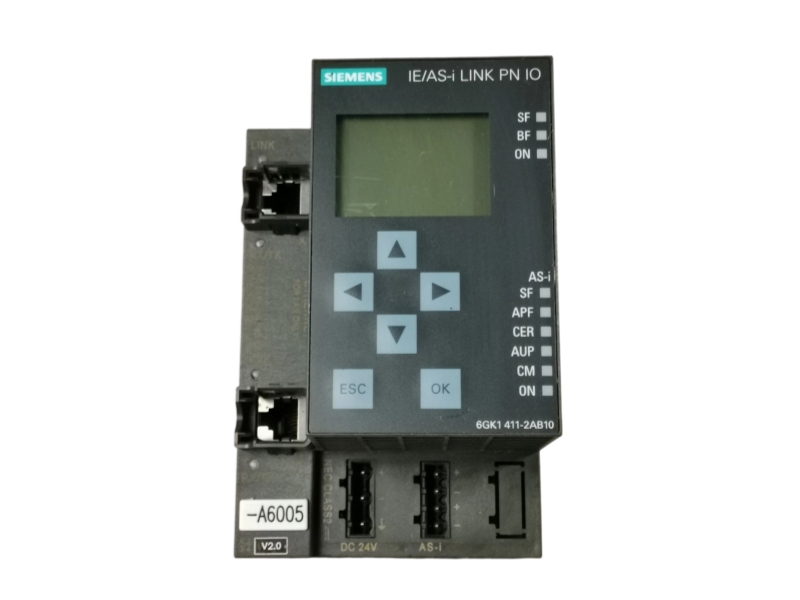

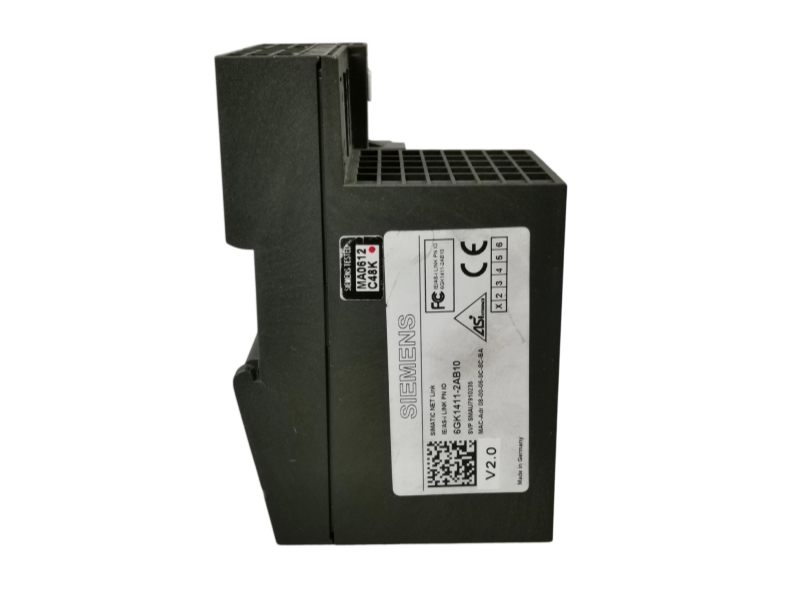

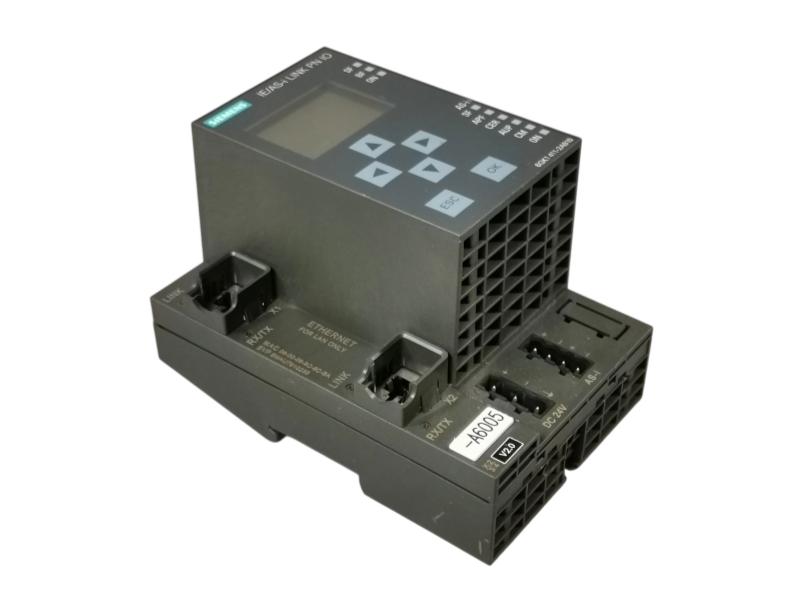

A single-master gateway integrating an AS-Interface field network into PROFINET IO with local configuration and diagnostic functions.
Siemens 6GK1411-2AB10 is the single-master IE/AS-i Link PN IO. The official Siemens manual describes a gateway that connects one AS-Interface network to PROFINET IO and provides local display operation, web-based management, STEP 7 or GSDML engineering, and a user-program data-record interface. Its two RJ45 ports operate as equal 10/100 Mbps switch ports, while the AS-i network can be powered from line 1 or supported by an optional external 24 V DC supply.
| Order code | 6GK1411-2AB10 |
|---|---|
| Official catalog description | IE/AS-INTERFACE LINK PN IO, single AS-i master |
| Lifecycle evidence | Official Siemens manual identification |
| Procurement action | Confirm the complete -2AB10 suffix, hardware version, firmware level and required AS-i accessories. |
| Parameter | Official value |
|---|---|
| Product type | IE/AS-i Link PN IO gateway |
| AS-i master configuration | Single master |
| Supported AS-i master profiles | M1 to M4 |
| PROFINET interfaces | 2 × RJ45, 10/100 Mbps, full duplex, equal switch ports |
| AS-i cycle time | 5 ms for 31 standard-addressed slaves; 10 ms for 62 A/B-addressed slaves |
| AS-i line supply | 29.5 to 31.6 V DC |
| AS-i current consumption | Maximum 320 mA at 30 V |
| Power consumption | Maximum 9.6 W |
| Optional external supply | 24 V DC; 18 to 32 V DC; SELV/LPS or NEC Class 2 |
| AS-i connection | 4-pin plug-in screw contacts; maximum 3 A through paired pins |
| Maximum AS-i cable length | 100 m |
| Configuration methods | Local display, STEP 7, GSDML, WBM or user-program data records |
| Operating temperature | 0 °C to +60 °C for vertical installation |
| Storage and transport temperature | −30 °C to +70 °C |
| Maximum operating altitude | 3,000 m above sea level |
Plan the AS-i topology, line power, optional 24 V DC auxiliary supply, PROFINET addressing and firmware before commissioning. Verify vertical mounting and the official ambient limits.
Verify every character and the complete -2AB10 suffix.
Confirm that a single AS-i master is sufficient.
Record firmware and compare the required diagnostics and engineering functions.
Confirm device name, IP parameters and GSDML or STEP 7 workflow.
Check AS-i line power and any optional 18–32 V DC auxiliary supply.
Verify screw connectors, AS-i cable, addressing tools and documentation.
It is the single-master Siemens IE/AS-i Link PN IO used to connect one AS-Interface network to PROFINET IO.
The official manual specifies two equal RJ45 switch ports supporting 10/100 Mbps full-duplex operation.
Siemens lists AS-i master profiles M1 through M4.
Configuration is available through the local display, STEP 7, a GSDML file, web-based management or user-program data records.
Match the complete suffix, single-master requirement, firmware, PROFINET configuration, AS-i power design and supplied connectors.
Send the complete 6GK1411-2AB10 order code, quantity, hardware or firmware details, destination and required delivery date. Our team can review visible condition, configuration fit, warranty terms and global shipping options before quotation.
For 6GK1411-2AB10, our service workflow focuses on traceable identification, practical compatibility review, careful handling and clear communication from enquiry through dispatch.
We translate the requested 6GK1411-2AB10 order code, single-master profinet gateway role and interface requirements into a clear sourcing brief.
Visible labels, packaging details and supplied accessories can be checked against the purchase requirement.
Industrial components are handled, protected and prepared for shipment with attention to condition and documentation.
We check the entire Siemens article number, including every suffix, before matching available units.
AS-i master scope, PROFINET addressing, firmware, line power and mounting are reviewed against the intended system.
Available photos, labels, accessories and packaging can be reviewed before the order is finalized.
Export packing, destination details, shipping options and delivery expectations are coordinated clearly.
Warranty scope is stated with the quotation so buyers can compare commercial risk and coverage.
Email and WhatsApp channels support fast clarification of quantities, revisions and urgent replacement needs.
| Step | Action | What we confirm |
|---|---|---|
| 01 | Requirement review | Full order code, quantity, system role, required date and destination. |
| 02 | Availability check | Stock position, visible condition, revision data and included accessories. |
| 03 | Compatibility check | Single-master AS-i scope, PROFINET ports, firmware, line power, connectors and mounting. |
| 04 | Quotation and dispatch | Warranty statement, commercial terms, packing method and shipping option. |
Send the full model, requested quantity, current device photos or firmware information, delivery country and target date. We will respond with the next verification steps and available supply options.
