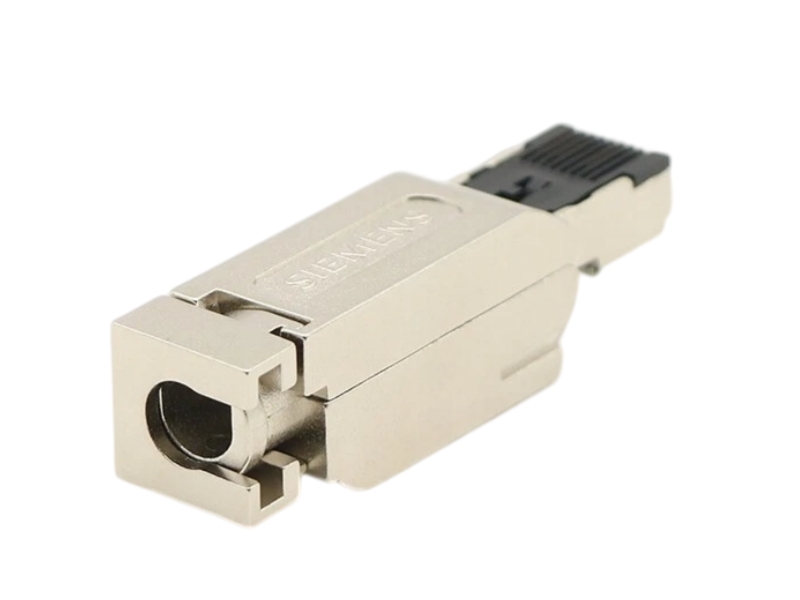

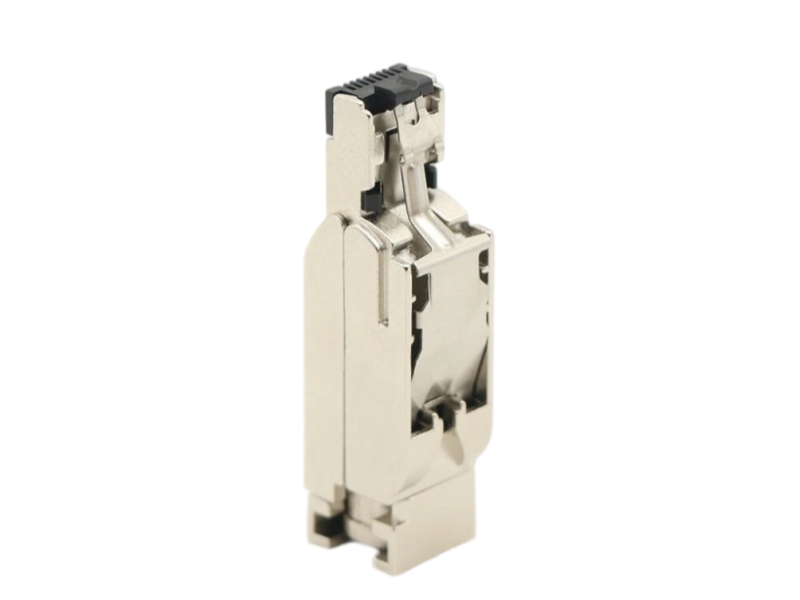

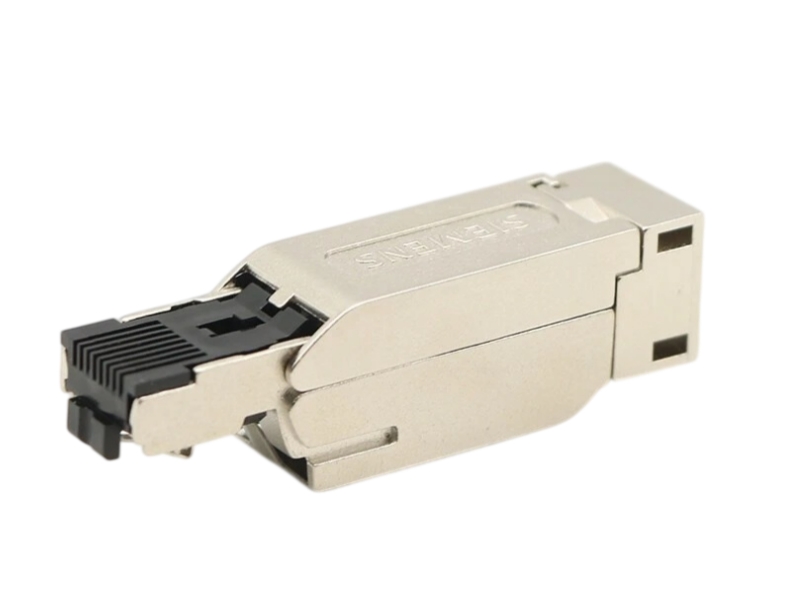

Siemens 6GK1901-1BB10-2AA0 is the IE FC RJ45 Plug 180 (2x2), a data connector for Industrial Ethernet FastConnect twisted-pair cable. Its rugged metal enclosure, 180-degree cable outlet and integrated cut-and-clamp contacts support compact field termination of four-wire TP FC cable. The official configuration provides four electrical cable-side connections and one RJ45 equipment-side interface for 10/100 Mbit/s transmission. It supports FastConnect preparation, strain relief, PoE and PoE+, and is specified as silicon-free. Correct cable type, conductor size, preparation length and enclosure clearance should be verified before assembly.
The compatible IE FC TP cable is prepared for the specified four-wire termination.
Integrated cut-and-clamp contacts establish the cable-side electrical connections.
The RJ45 interface couples the prepared cable to the Industrial Ethernet equipment port.
| Technical Item | Official Technical Data | Engineering Note |
|---|---|---|
| Manufacturer | Siemens | Confirm package marking and complete order number. |
| Complete Part Number | 6GK1901-1BB10-2AA0 | Do not shorten the suffix. |
| Product Type | IE FC RJ45 Plug 180 (2x2) | Industrial Ethernet data connector. |
| Transmission Rate | 10/100 Mbit/s | Match the connected network equipment. |
| Cable-Side Connections | 4 electrical connections | For four-wire TP FC cable termination. |
| Equipment-Side Interface | 1 x RJ45 | Verify port accessibility and mating orientation. |
| Connection Method | FastConnect; integrated cut-and-clamp contacts; AWG22 | Use compatible cable and preparation tooling. |
| Dimensions | 13.7 x 16 x 55 mm | Allow space for the 180-degree cable route. |
| Net Weight | 35 g | Connector weight without cable. |
| Protection | IP20 | Install within a suitable protected enclosure. |
| Connectable Cable | 6.5 mm cable diameter; 0.33 mm2 conductor cross-section | Verify the exact installed cable. |
| Additional Features | PoE and PoE+ supported; strain relief; silicon-free | Confirm the complete powered-link design. |
Operation, storage and transport: -40 to +85 C.
Up to 95% relative humidity without condensation; IP20.
Official data identifies Cat5, RoHS, UL and cULus.
Confirm that the cable is a compatible four-wire IE FC TP cable with the specified dimensions.
Prepare the cable using the applicable FastConnect stripping and conductor arrangement procedure.
Seat the conductors fully in the integrated cut-and-clamp termination positions.
Secure the metal enclosure and strain relief without damaging the cable jacket.
Connect the RJ45 interface and test link integrity, data communication and any PoE function used.
The connector uses a 180-degree cable outlet.
The official data specifies 10 and 100 Mbit/s.
Yes. The official product data lists both PoE and PoE+ support.
The official data lists PoE and PoE+ supported; strain relief; silicon-free.
The official Siemens product lifecycle entry identifies 6GK1901-1BB10-2AA0 as Active. Stockoems lists the offered unit as Original new, In stock and With 1 year warranty. Product condition, availability and warranty are Stockoems commercial information rather than manufacturer commitments. Verify the complete order number, hardware version, firmware, accessories and system compatibility before ordering.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
