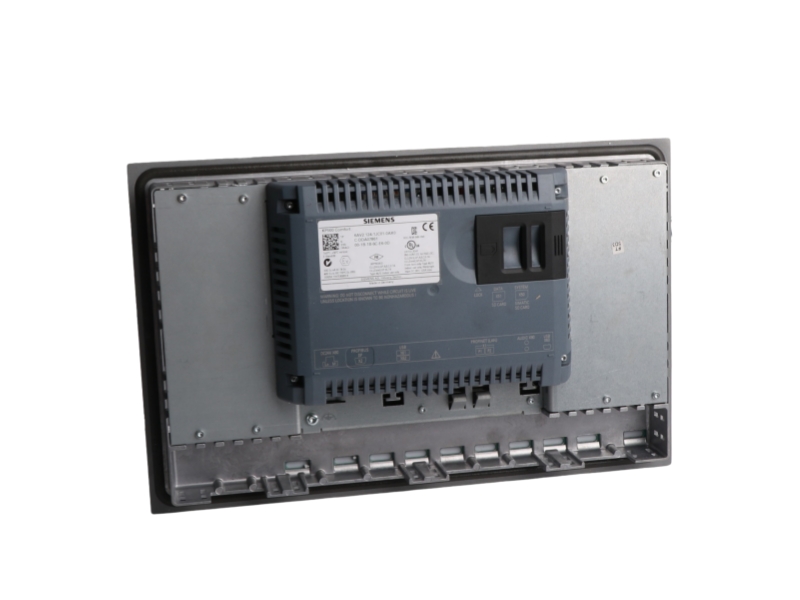

Siemens 6AV2124-0JC01-0AX0 is the SIMATIC HMI TP900 Comfort standard device. It combines a 9-inch widescreen TFT display, analog-resistive touch operation and industrial communication interfaces in a panel-mount format. The official configuration includes 800 x 480 resolution, 16,777,216 colors, 12 MB user memory, Windows CE 6.0, one Industrial Ethernet interface with an integrated two-port switch, a combined RS422/485 interface, two USB 2.0 ports and two SD memory-card slots. It is intended for machine and process visualization where the exact panel cutout, supply, configuration software and network architecture are verified before installation.
The analog-resistive touch surface receives operator selections and entry commands.
The TFT display presents configured process values, alarms, recipes and operating screens.
PROFINET or MPI/PROFIBUS DP communication exchanges data with the configured automation system.
| Technical Item | Official Technical Data | Engineering Note |
|---|---|---|
| Manufacturer | Siemens | Confirm the Siemens label and complete order number. |
| Complete Part Number | 6AV2124-0JC01-0AX0 | Keep every suffix character unchanged. |
| Product Type | SIMATIC HMI TP900 Comfort standard device | 9-inch Comfort Panel configuration. |
| Display | 9-inch widescreen TFT; 800 x 480; 16,777,216 colors | Use the configured screen project for the exact application. |
| Touch Input | Analog-resistive touch screen | Designed for direct operator interaction. |
| User Memory | 12 MB | Project size must remain within the device configuration. |
| Operating System | Windows CE 6.0 | Software compatibility must be checked before migration. |
| Interfaces | Industrial Ethernet with 2-port switch; RS422/485; 2 x USB 2.0; 2 x SD slots | Confirm network and accessory requirements. |
| Supply and Consumption | 24 V DC; 19.2 to 28.8 V; rated current 0.75 A; typical 18 W | Use a suitable protected DC supply. |
| Protection | Front IP65; rear IP20 | Protection depends on correct panel mounting. |
| Dimensions and Weight | Front 274 x 190 mm; cutout 251 x 166 mm; depth 62.7 mm; 1.9 kg | Verify enclosure space and cutout before installation. |
| Configuration Software | WinCC Comfort, Advanced or Professional from V11 | Match project version and device support. |
Landscape mounting: 0 to 50 C; portrait mounting: 0 to 40 C.
IP65 at the front and IP20 at the rear when correctly installed.
Official data lists CE, cULus, RCM and KC among the approvals.
Verify the full order number, panel cutout and mounting orientation before removing the existing operator panel.
Provide 24 V DC within the specified voltage range and complete protective wiring according to the control-panel design.
Connect PROFINET or MPI/PROFIBUS DP only after confirming the controller, cable and network configuration.
Use a supported WinCC engineering version and retain a verified project backup before transfer.
Check front sealing, rear clearance, touch operation and communications before return to service.
Yes. The official rated supply is 24 V DC with a permitted range of 19.2 to 28.8 V.
Yes. It includes an Industrial Ethernet interface with an integrated two-port switch.
The official display resolution is 800 x 480 pixels.
The official data lists WinCC Comfort, Advanced or Professional from V11.
The official Siemens product lifecycle entry identifies 6AV2124-0JC01-0AX0 as Active. Stockoems lists the offered unit as Original new, In stock and With 1 year warranty. Product condition, availability and warranty are Stockoems commercial information rather than manufacturer commitments. Verify the complete order number, hardware version, firmware, accessories and system compatibility before ordering.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Our workflow combines identification checks, condition evidence, compatibility review, protective handling, logistics coordination and documented after-sales communication.
Inspection and label verification support traceable purchasing decisions. Packaging, shipment planning, tracking and customs documentation are coordinated around the confirmed order. Delivery dates and stock quantities are stated only after verification, while written warranty terms, return authorization and after-sales response channels are documented for the transaction.
Check legal business identity, model-specific experience, traceable photos, written condition and warranty terms, export documentation capability and a clear return authorization process.
Request the complete suffix, quantity, product and label photos, condition statement, compatibility review scope, packing method, shipping terms and written after-sales contacts.
Avoid vague model descriptions, reused photos, unsupported technical claims, hidden return terms, unverifiable inventory quantities and pressure to accept an unconfirmed substitute.
