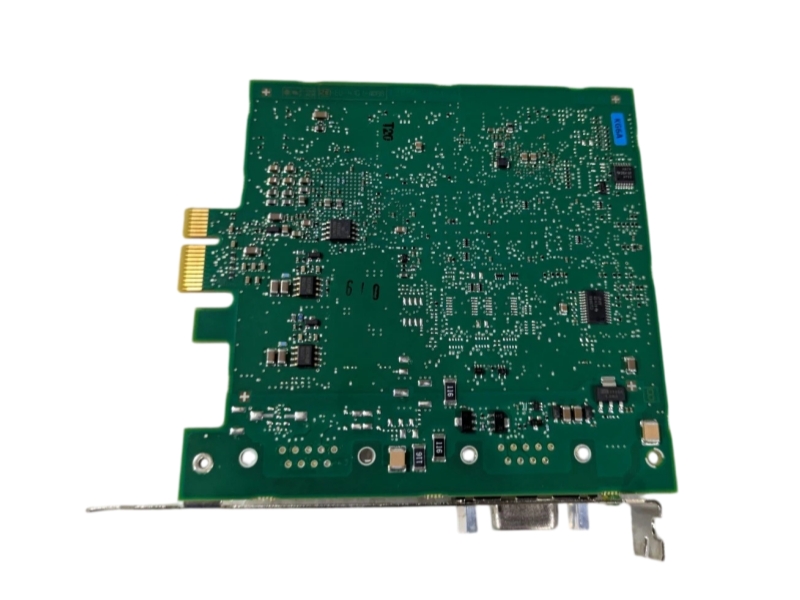

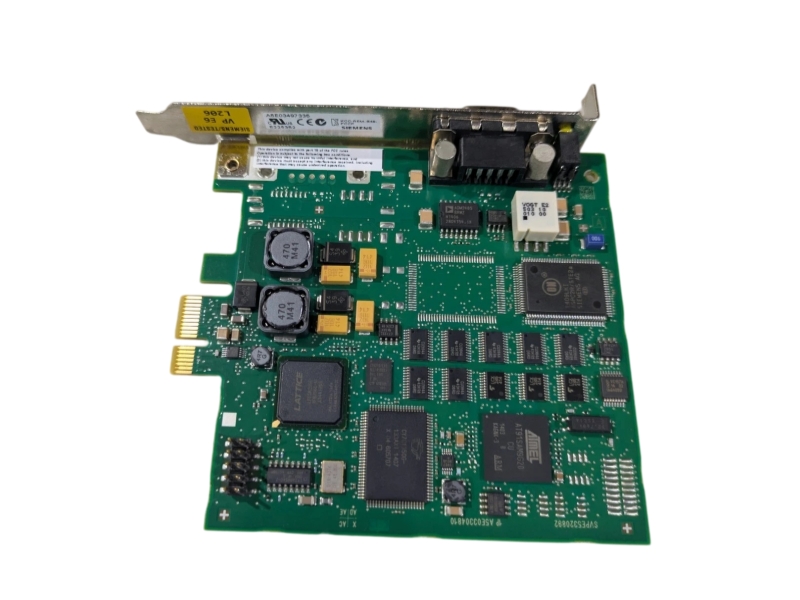

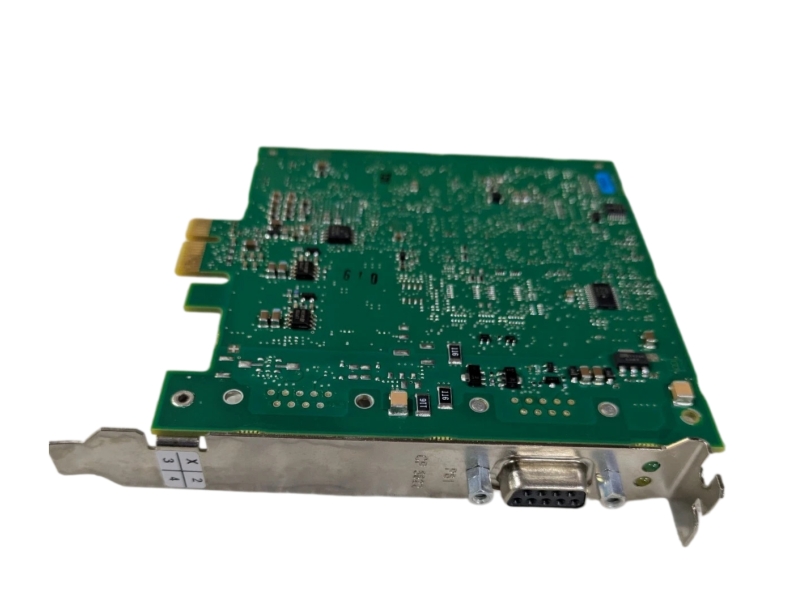

Siemens 6GK1562-2AA00 is the SIMATIC NET CP 5622 communications processor for connecting a PG or PC with a PCI Express bus to PROFIBUS or MPI. The card uses a PCI Express x1 host interface and one 9-pin Sub-D RS-485 network connection. Siemens specifies PROFIBUS transmission rates from 9.6 kbit/s to 12 Mbit/s and support through the applicable SOFTNET-PB software packages.
| Commercial Item | Status |
|---|---|
| Manufacturer lifecycle | PM300: Active Product |
| Stockoems commercial check | Availability, condition, warranty terms, and dispatch timing are confirmed against the requested quantity. |
| Field | Official Siemens Information |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6GK1562-2AA00 |
| Product family | CP 5622 |
| Product type | PROFIBUS/MPI communications processor |
| Host bus | PCI Express x1 |
| Network interface | One 9-pin Sub-D female connector, RS-485 |
| Transmission rate | 9.6 kbit/s to 12 Mbit/s |
| Backplane supply | 3.3 V DC and 12 V DC |
| Maximum current at 3.3 V | 0.3 A |
| Maximum current at 12 V | 0.25 A |
| Power loss | 4 W |
| Operating temperature | 5 °C to 55 °C |
| Degree of protection | IP00 |
| Dimensions | 18 × 112 × 101 mm (W × H × D) |
| Net weight | 87 g in the Siemens technical data sheet |
| Country of origin | Germany |
Adds a direct RS-485 PROFIBUS interface to a compatible PCI Express computer.
Supports engineering and service communication with compatible SIMATIC MPI networks.
Works with the appropriate SOFTNET-PB package for DP and S7 communication services.
PM300: Active Product. Siemens lists the exact CP 5622 order number as PM300: Active Product. Software selection, supported operating-system variant, PCI Express slot availability, and required PROFIBUS service must still be checked for the target PC.
It identifies the Siemens SIMATIC NET CP 5622 PCI Express communications processor.
Siemens documents use with PROFIBUS or MPI networks.
The network interface is one 9-pin Sub-D female RS-485 connector.
The Siemens data sheet lists 9.6 kbit/s to 12 Mbit/s.
Yes. Siemens lists 6GK1562-2AA00 as PM300: Active Product.
Send the complete part number, quantity, destination country, and installed-system details for a focused review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Email SalesWhatsApp SalesOrder-code verification, condition review, compatibility documentation, protective packing, and international delivery coordination.
For the CP 5622, the service review matches the exact Siemens code to the receiving PC and field network. We compare the card label, PCI Express edge connector, Sub-D port, bracket condition, target operating system, SOFTNET-PB requirement, PROFIBUS or MPI topology, lifecycle status, and requested quantity.
| Service Stage | Checks for This Product | Buyer Record |
|---|---|---|
| Identity control | Exact code 6GK1562-2AA00, Siemens marking, suffix, and readable label details | Purchase request and label comparison |
| Physical inspection | PCB and bracket condition, PCI Express edge connector, 9-pin Sub-D port, markings, and handling evidence | Inspection notes and available photographs |
| Configuration review | PCI Express x1 slot, PC operating system, Siemens driver and SOFTNET-PB package, PROFIBUS/MPI cable, termination, address, and baud rate | Installed-system record and project documentation |
| Packing preparation | Antistatic protection, contact-area protection, cushioning, and outer-carton labeling | Packing and dispatch confirmation |
| Logistics support | Destination, carrier options, tracking, and customary shipping documentation | Shipping route and tracking reference |
| After-sales record | Written warranty terms, received-condition questions, and return-authorization procedure | Traceable service correspondence |
Order code, label evidence, configuration data, and commercial scope are organized before confirmation.
Visible condition, markings, contacts, included items, and requested evidence are reviewed.
Antistatic protection, cushioning, labeling, tracking, and export documents are coordinated.
Send the exact part number, required quantity, destination country, product-label photographs, and the target PC, operating system, SOFTNET-PB package, and PROFIBUS or MPI network record.
Yes. The review can compare the exact suffix, system family, wiring or interface details, configuration records, and buyer-supplied evidence.
No. Availability, condition, quantity, warranty terms, and dispatch timing are checked for each request before commercial confirmation.
The packing plan can include antistatic protection, contact-area protection, internal cushioning, carton labeling, and shipment tracking.
