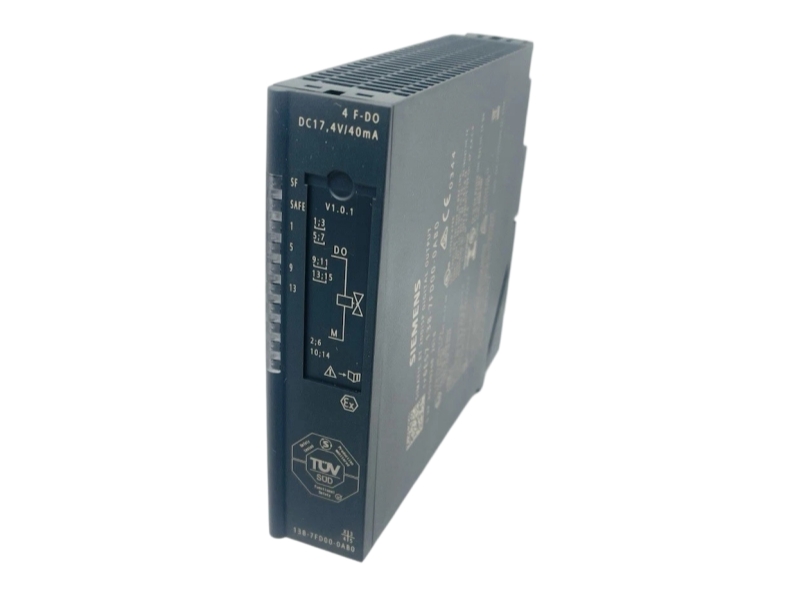

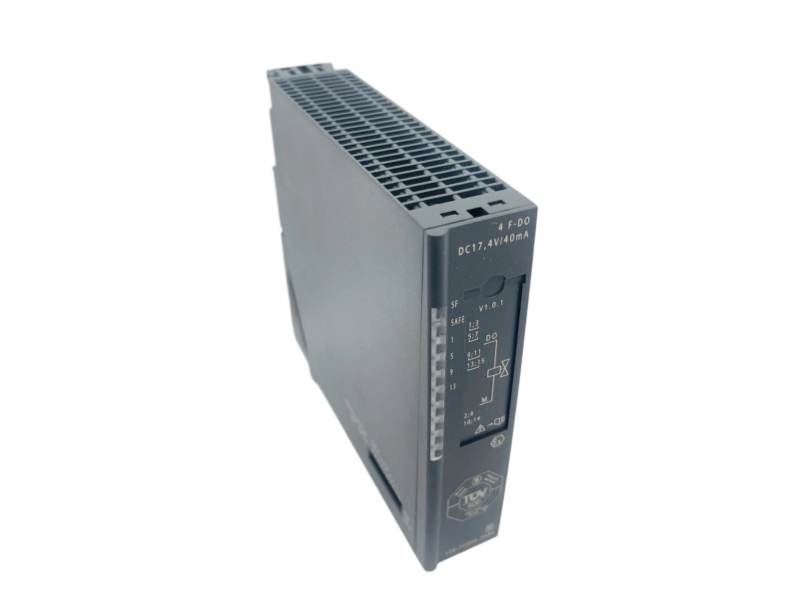

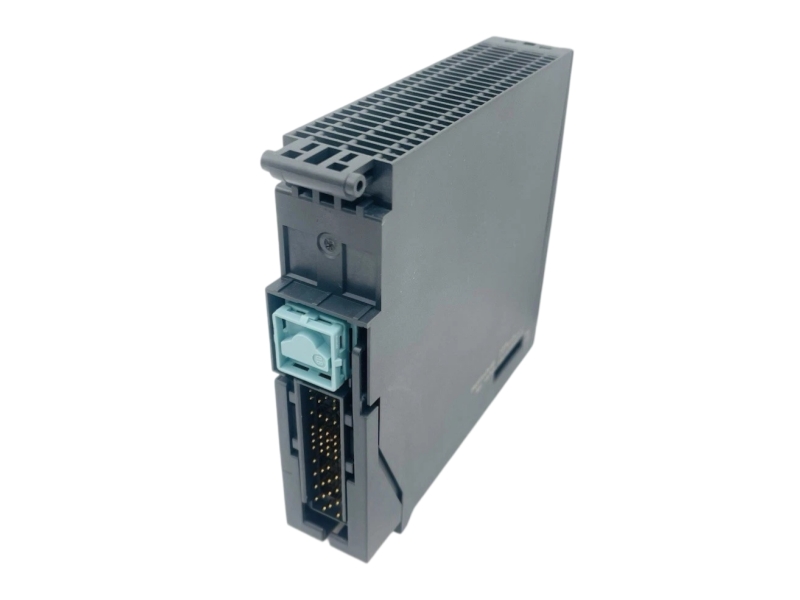

Siemens 6ES7138-7FD00-0AB0 is a fail-safe digital output electronic module for the SIMATIC ET 200iSP distributed I/O system. It provides four PP-switching intrinsically safe outputs for actuators in hazardous areas, with a rated load voltage of 17.4 V DC and a maximum output current of 40 mA. Siemens documents PROFIsafe support, short-circuit, overload, and wire-break monitoring, and safety capability up to SIL 3, Category 4, and PL e.
| Commercial Item | Status |
|---|---|
| Manufacturer lifecycle | PM300: Active Product |
| Stockoems commercial check | Availability, condition, warranty terms, and dispatch timing are confirmed against the requested quantity. |
| Field | Official Siemens Information |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7138-7FD00-0AB0 |
| Product family | SIMATIC ET 200iSP |
| Product type | 4F-DO Ex(i) fail-safe electronic module |
| Digital outputs | 4, PP-switching |
| Rated load voltage | 17.4 V DC |
| Maximum output current | 40 mA |
| Permissible DC supply range | 19.2 V to 30 V |
| Typical current consumption | 340 mA |
| Maximum power loss | 5.3 W |
| Supported safety communication | PROFIsafe |
| Maximum safety level | SIL 3 / Category 4 / PL e |
| Diagnostics | Short circuit, overload, wire break, channel status, and group fault |
| Maximum cable length | 500 m, shielded or unshielded |
| Degree of protection | IP20 |
| Dimensions | 30 × 129 × 136.5 mm (W × H × D) |
| Approximate module weight | 285 g |
| Country of origin | Germany |
Controls compatible Ex i solenoid valves, DC relays, and actuators in ET 200iSP installations.
Provides four PROFIsafe output channels for safety functions up to SIL 3, Category 4, and PL e.
Supports channel diagnostics, group-fault indication, and module-internal diagnostic records.
PM300: Active Product. Siemens lists the exact order number as PM300: Active Product. Application approval depends on the complete ET 200iSP installation, hazardous-area classification, terminal assignment, safety parameters, certificates, and validated safety program.
It identifies a Siemens ET 200iSP four-channel fail-safe digital output module for intrinsically safe circuits.
Siemens specifies 17.4 V DC and a maximum output current of 40 mA.
The product data lists SIL 3, Category 4, and Performance Level e.
Yes. PROFIsafe is listed as the supported safety communication protocol.
Check the exact code, ET 200iSP station, hazardous-area classification, certificates, terminal assignment, F-parameters, actuator data, and validated safety program.
Send the complete part number, quantity, destination country, and installed-system details for a focused review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Email SalesWhatsApp SalesOrder-code verification, condition review, compatibility documentation, protective packing, and international delivery coordination.
For this ET 200iSP fail-safe output module, the review combines product identity with the safety and hazardous-area installation record. We compare the label, terminal contacts, LEDs, supply and output ratings, Ex documentation, PROFIsafe settings, F-parameters, safety-program record, lifecycle status, and requested quantity.
| Service Stage | Checks for This Product | Buyer Record |
|---|---|---|
| Identity control | Exact code 6ES7138-7FD00-0AB0, Siemens marking, suffix, and readable label details | Purchase request and label comparison |
| Physical inspection | Housing, terminal contacts, coding, channel LEDs, SF and SAFE indicators, markings, and handling marks | Inspection notes and available photographs |
| Configuration review | ET 200iSP station, terminal module, hazardous-area classification, Ex certificates, 24 V supply, actuator data, PROFIsafe address, F-parameters, and safety signature | Installed-system record and project documentation |
| Packing preparation | Antistatic protection, contact-area protection, cushioning, and outer-carton labeling | Packing and dispatch confirmation |
| Logistics support | Destination, carrier options, tracking, and customary shipping documentation | Shipping route and tracking reference |
| After-sales record | Written warranty terms, received-condition questions, and return-authorization procedure | Traceable service correspondence |
Order code, label evidence, configuration data, and commercial scope are organized before confirmation.
Visible condition, markings, contacts, included items, and requested evidence are reviewed.
Antistatic protection, cushioning, labeling, tracking, and export documents are coordinated.
Send the exact part number, required quantity, destination country, product-label photographs, and the ET 200iSP station, hazardous-area dossier, actuator data, PROFIsafe parameters, and safety-program record.
Yes. The review can compare the exact suffix, system family, wiring or interface details, configuration records, and buyer-supplied evidence.
No. Availability, condition, quantity, warranty terms, and dispatch timing are checked for each request before commercial confirmation.
The packing plan can include antistatic protection, contact-area protection, internal cushioning, carton labeling, and shipment tracking.
Share the exact code, quantity, destination, and configuration record for a tailored review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
