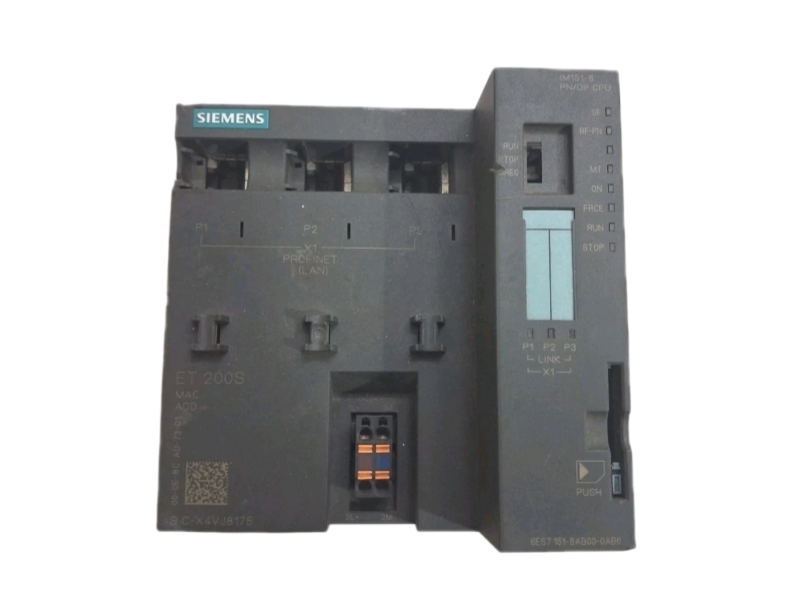

Siemens 6ES7151-8AB00-0AB0 is an IM151-8 PN/DP CPU for the SIMATIC ET 200S distributed I/O system. Siemens specifies 128 KB of work memory, an integrated PROFINET interface with three RJ45 ports, PROFINET IO controller capability, and operation with a required SIMATIC Micro Memory Card. The documented hardware version supports firmware V2.7 and STEP 7 V5.4 SP4 or later for configuration.
| Commercial Item | Status |
|---|---|
| Stockoems commercial check | Availability, condition, warranty terms, and dispatch timing are confirmed against the requested quantity. |
| Field | Official Siemens Information |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7151-8AB00-0AB0 |
| Product family | SIMATIC ET 200S |
| Product type | IM151-8 PN/DP CPU |
| Work memory | 128 KB, non-expandable |
| Load memory | SIMATIC Micro Memory Card required; up to 8 MB |
| Integrated network interface | PROFINET with three RJ45 ports |
| PROFINET role | IO Controller |
| Supply voltage | 24 V DC |
| Permissible supply range | 20.4 V to 28.8 V DC |
| Typical power loss | 5.5 W |
| Firmware level | V2.7 documented for this order number |
| Engineering software | STEP 7 V5.4 SP4 or later |
| Bit operation time | 0.06 µs |
| Word operation time | 0.12 µs |
| Fixed-point operation time | 0.16 µs |
| Country of origin | Germany |
Combines local ET 200S I/O handling with CPU execution in compact distributed stations.
Uses the integrated three-port PROFINET interface as an IO Controller for compatible devices.
Supports controlled replacement where firmware, MMC, STEP 7 project, ports, and expansion modules are matched.
Siemens documentation distinguishes 6ES7151-8AB00-0AB0 from the later 6ES7151-8AB01-0AB0 hardware version and states that this version cannot be upgraded to firmware V3.2 or later. Preserve the MMC, STEP 7 project, firmware level, and interface configuration for replacement planning.
It identifies a Siemens SIMATIC ET 200S IM151-8 PN/DP CPU with integrated PROFINET connectivity.
Siemens specifies 128 KB of non-expandable work memory.
The documented PROFINET interface provides three RJ45 ports.
Yes. Siemens specifies an MMC as required load memory for this CPU.
No. Siemens states that 6ES7151-8AB00-0AB0 cannot be upgraded to firmware V3.2 or later.
Send the complete part number, quantity, destination country, and installed-system details for a focused review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Email SalesWhatsApp SalesOrder-code verification, condition review, compatibility documentation, protective packing, and international delivery coordination.
For this ET 200S CPU, the service review covers the full hardware identity and the installed control environment. We compare the order-code label, CPU condition, MMC presence, firmware V2.7 record, 24 V DC supply, three-port PROFINET topology, STEP 7 project, attached ET 200S modules, lifecycle status, and requested quantity.
| Service Stage | Checks for This Product | Buyer Record |
|---|---|---|

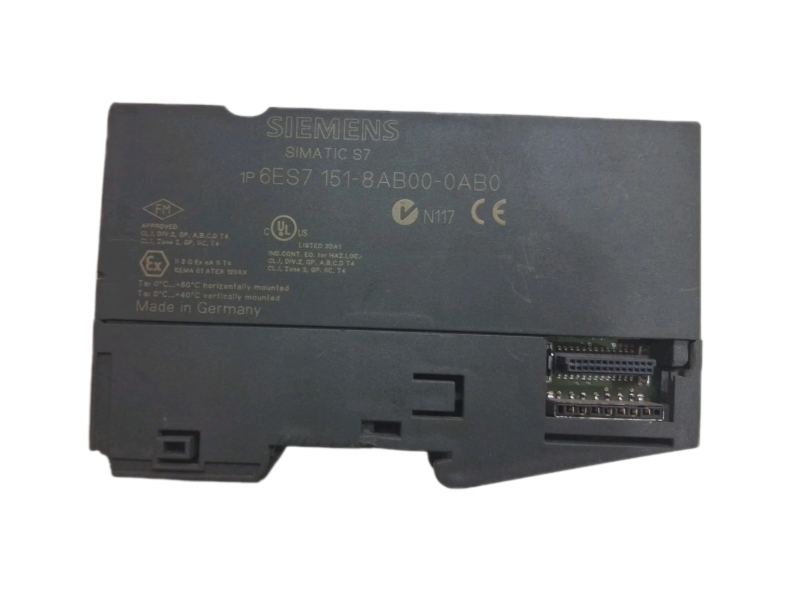

| Identity control | Exact code 6ES7151-8AB00-0AB0, Siemens marking, suffix, and readable label details | Purchase request and label comparison |
| Physical inspection | Housing, mode selector, LEDs, MMC slot, RJ45 ports, connector areas, and handling marks | Inspection notes and available photographs |
| Configuration review | ET 200S module sequence, MMC, firmware, STEP 7 version, PROFINET device name, IP settings, topology, and 24 V DC supply | Installed-system record and project documentation |
| Packing preparation | Antistatic protection, contact-area protection, cushioning, and outer-carton labeling | Packing and dispatch confirmation |
| Logistics support | Destination, carrier options, tracking, and customary shipping documentation | Shipping route and tracking reference |
| After-sales record | Written warranty terms, received-condition questions, and return-authorization procedure | Traceable service correspondence |
Order code, label evidence, configuration data, and commercial scope are organized before confirmation.
Visible condition, markings, contacts, included items, and requested evidence are reviewed.
Antistatic protection, cushioning, labeling, tracking, and export documents are coordinated.
Send the exact part number, required quantity, destination country, product-label photographs, and the MMC, firmware, STEP 7 project, PROFINET topology, and ET 200S station record.
Yes. The review can compare the exact suffix, system family, wiring or interface details, configuration records, and buyer-supplied evidence.
No. Availability, condition, quantity, warranty terms, and dispatch timing are checked for each request before commercial confirmation.
The packing plan can include antistatic protection, contact-area protection, internal cushioning, carton labeling, and shipment tracking.
