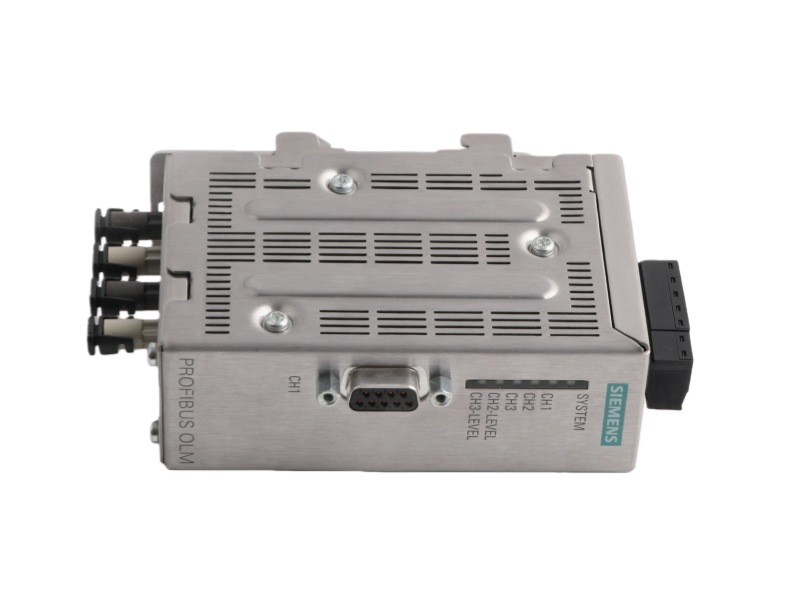

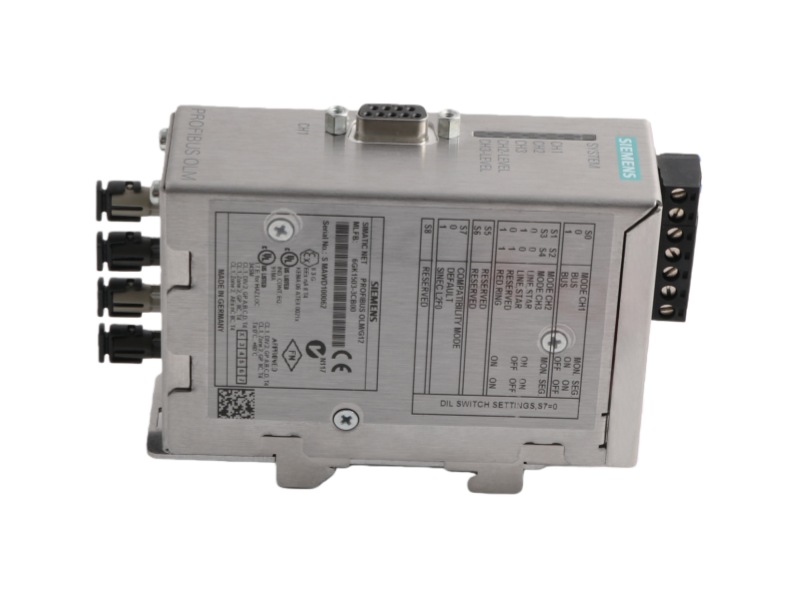

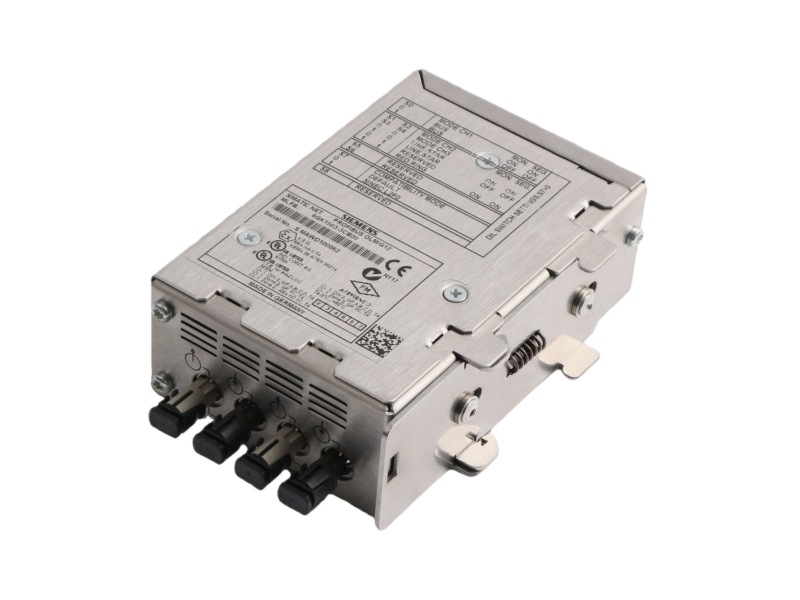

The Profibus OLM/G12 V4.0 Siemens 6GK1503-3CB00 represents a sophisticated PROFIBUS Optical Link Module (OLM) specifically engineered to extend and segment industrial network infrastructure through fiber optic connectivity. This advanced module, designated as version G12 V4.0, incorporates one electrical RS485 interface and two independent optical fiber optic channels utilizing four BFOC sockets for bidirectional communication. The technical architecture of the Siemens Simatic Net 6GK1503-3CB00 enables robust signal transmission across extended distances up to 2,850 meters with standard glass fiber optic cables, significantly surpassing the limitations of conventional copper-based PROFIBUS networks while providing complete electrical isolation between network segments.

Engineered for demanding industrial environments, the 6GK1503-3CB00 Siemens OPTICAL LINK MODULE integrates comprehensive diagnostic capabilities including a signaling contact for remote monitoring and a measuring output for precise signal quality assessment. These features allow network administrators to continuously monitor the health of the fiber optic connections and promptly identify potential degradation or fault conditions. The rugged construction of the Siemens 6GK1503-3CB00 ensures reliable operation in harsh industrial settings where electromagnetic interference, ground potential differences, or extreme environmental conditions would compromise traditional copper-based network components.

The operational functionality of the Siemens 6GK1503-3CB00 PLC MODULE facilitates the creation of redundant ring topologies and star configurations within PROFIBUS networks, enhancing system reliability through multiple communication paths. The module actively regenerates and amplifies PROFIBUS signals, maintaining signal integrity across extensive manufacturing facilities or process plants where long-distance communication is essential. The module demonstrates particular value in applications requiring isolation between different electrical areas or protection against lightning-induced surges in outdoor installations.

Through its combination of electrical-to-optical conversion, extended transmission range, and comprehensive diagnostic features, the Optical Link Module Siemens 6GK 1503-3CB00 establishes itself as a critical component in industrial network infrastructure. The module's design emphasizes both operational reliability and maintenance accessibility, supporting efficient network troubleshooting while minimizing system downtime. The proven performance of the module across various industrial sectors underscores its effectiveness in providing robust fiber optic connectivity for PROFIBUS networks, upholding Siemens' reputation for engineering excellence in industrial communication technology.
