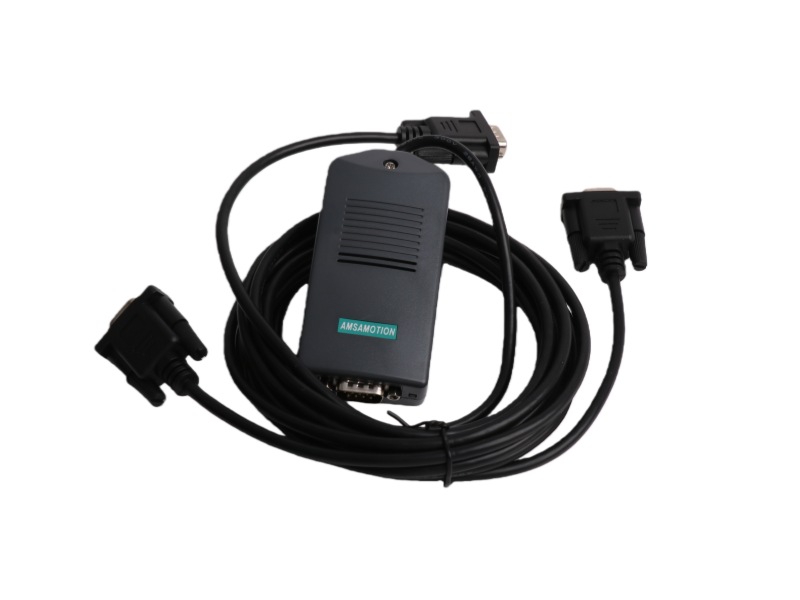

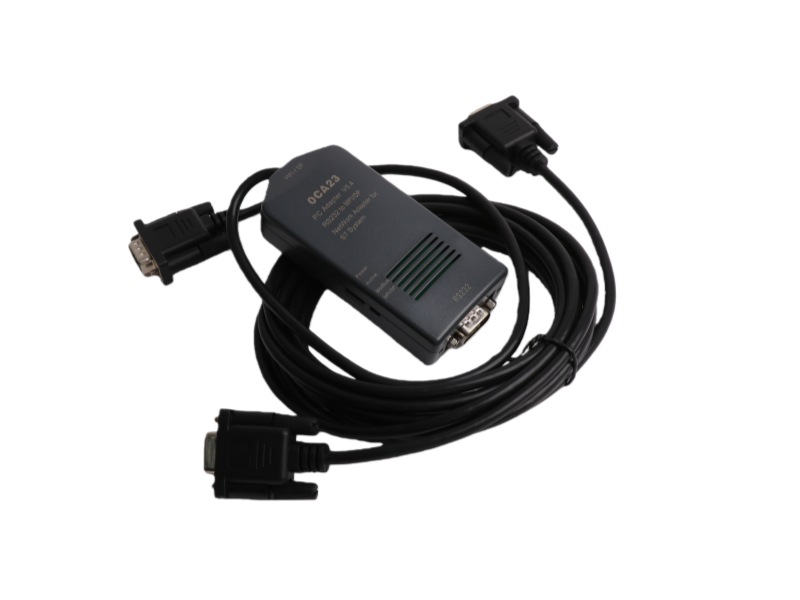

The 6ES7972-0CA23-0XA0 Siemens PC ADAPTER represents a crucial PC Adapter V5.1 specifically designed to establish communication between programming devices and Siemens automation systems. This versatile interface adapter enables seamless connection of PCs or notebooks to S7-300/400, C7, and M7 controller families through the MPI/DP interface, utilizing standard serial COM port connectivity without requiring internal PC expansion slots. The technical architecture of the module incorporates sophisticated signal conversion technology that transforms RS232 serial communication to the RS485 physical layer used by Siemens PLC networks, ensuring reliable data transmission for programming, configuration, and diagnostic functions.

Engineered for both workshop and field service applications, the Siemens SIMATIC S7 6ES7972-0CA23-0XA0 provides flexible connectivity options including direct cable connections between programming devices and automation systems, as well as modem-based remote access capabilities when used with the TeleService software package. The adapter features a manual transmission rate switch that allows technicians to optimize communication parameters for direct connections, though this function becomes inactive during modem-operated sessions. The compact and portable design of the module makes it particularly valuable for service engineers requiring mobile access to automation systems across different industrial facilities.

The operational functionality of the PC Adapter Siemens 6ES7 972-0CA23-0XA0 encompasses comprehensive support for Siemens engineering tools including Step 7 programming software, enabling users to perform complete project management tasks from program download to real-time system monitoring. While the standard package excludes the RS232 cable, the adapter maintains compatibility with standard serial cables available in the market, providing installation flexibility. The robust construction of the module ensures reliable performance in industrial environments where electrical noise and interference might compromise communication integrity.

Through its dual-role capability as both a direct connection interface and remote access gateway, the PLC Module Siemens 6ES7 972-0CA23-0XA0 establishes itself as an essential tool for automation engineers maintaining Siemens control systems. The adapter's design emphasizes user convenience and operational reliability, supporting efficient troubleshooting and system maintenance while reducing equipment downtime. The proven performance of the Siemens 6ES7 972-0CA23-0XA0 communication cable across diverse industrial applications underscores its effectiveness in bridging programming devices with automation controllers, upholding Siemens' commitment to providing comprehensive support solutions for their automation product portfolio.
