Siemens 6GK1502-3CA10 PROFIBUS OLM/P12 V3.1 Optical Link Module

Siemens 6GK1502-3CA10 RS485 and Dual Plastic Fiber PROFIBUS Repeater

Inquiry now

SIMATIC NET PROFIBUS OLM/P12 V3.1

6GK1502-3CA10

Optical Link Module

2 × Plastic FOC

1 × RS485 PROFIBUS interface

Product Overview

The Siemens 6GK1502-3CA10 is a SIMATIC NET PROFIBUS OLM/P12 V3.1 optical link module that couples one RS485 electrical segment with two plastic-fiber optical interfaces. The optical side provides four BFOC sockets.

The module includes a signaling contact, a test port and four BFOC connectors. It is intended for maintaining or extending installed PROFIBUS networks where electrical-to-optical conversion and exact connector compatibility are required.

Product Snapshot
Manufacturer	Siemens
Product family	SIMATIC NET PROFIBUS OLM/P12 V3.1
Complete part number	6GK1502-3CA10
Accurate product type	Optical Link Module

Commercial Status

Commercial Status
Official lifecycle	PM500: Discontinued Product or end of PLM & Support
Effective date	End of product lifecycle since 2019-01-01
Official successor	6GK1503-3CA01
Procurement note	Product is no longer available from Siemens; verify network topology, connector type and successor compatibility before sourcing.

Verified Technical Data

Technical Data
Product version	PROFIBUS OLM/P12 V3.1
Electrical interface	1 × RS485 PROFIBUS interface
Optical interfaces	2 × plastic-fiber interfaces

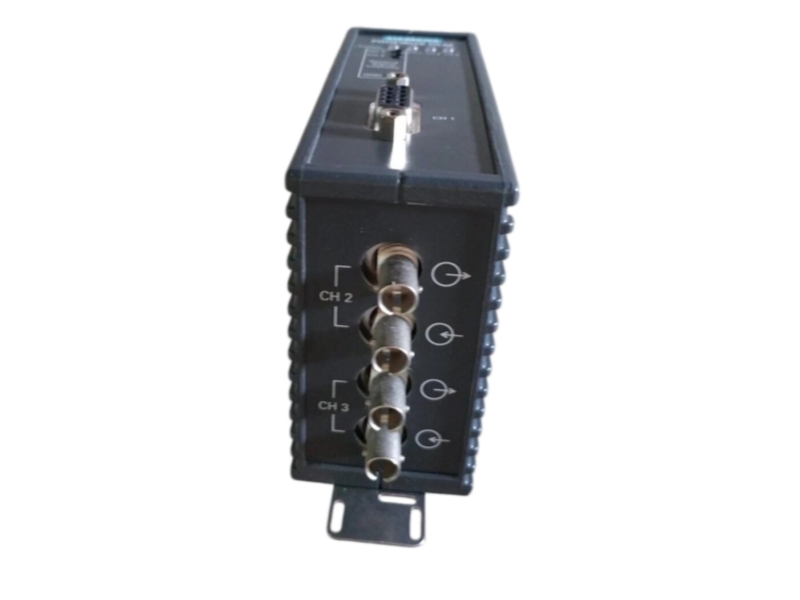

Optical connectors	4 × BFOC sockets
Included connectors	4 × BFOC connectors

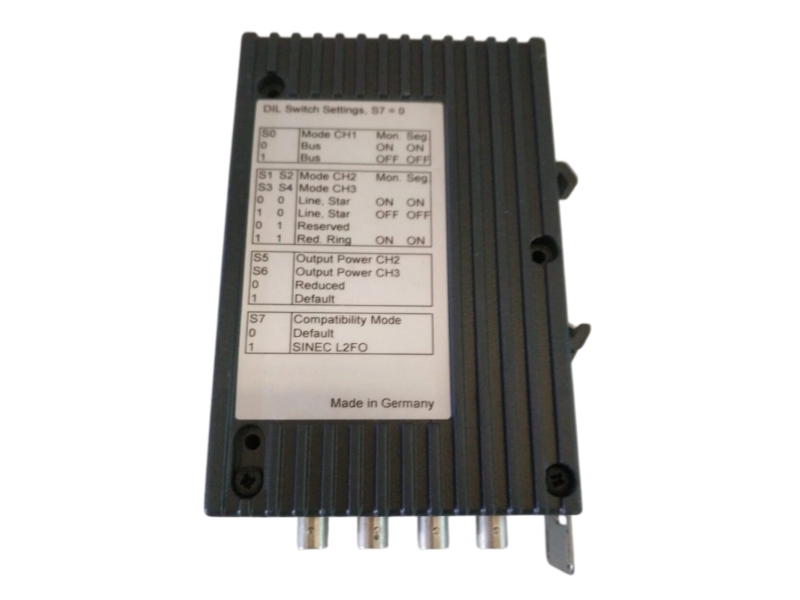

Diagnostic facilities	Signaling contact and test port
Network function	Electrical-to-optical PROFIBUS segment coupling
Packaging quantity	1 piece
Net weight	0.600 kg
Country of origin	Germany

System Fit and Applications

Electrical-to-fiber conversion

Couple a PROFIBUS RS485 segment to plastic-fiber links in electrically noisy industrial areas.

Fiber segment expansion

Extend installed PROFIBUS networks across two optical interfaces while retaining the documented BFOC connection format.

Legacy OLM maintenance

Replace an installed OLM/P12 V3.1 after checking topology, optical medium, connector condition and diagnostics wiring.

Compatibility and Procurement Checks

Exact OLM version

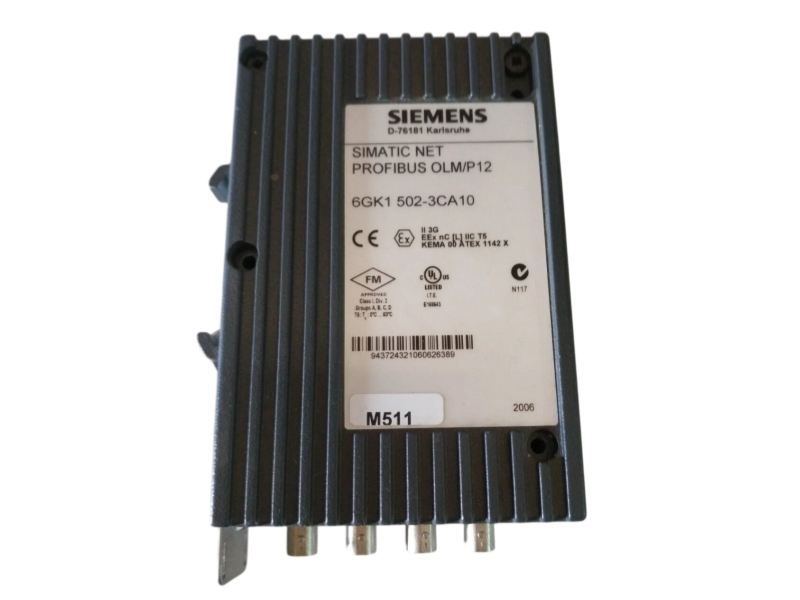

Confirm 6GK1502-3CA10 and OLM/P12 V3.1 on the nameplate.

Interface configuration

Verify one RS485 interface, two plastic FOC interfaces and four BFOC sockets match the installed network.

Accessory scope

Confirm whether the four BFOC connectors are present and inspect the signaling-contact and test-port connections.

Successor engineering

Siemens names 6GK1503-3CA01 as successor; validate topology, mounting, power and commissioning differences before replacement.

Lifecycle Note

Siemens lists 6GK1502-3CA10 as “PM500: Discontinued Product or end of PLM & Support,” with end of product lifecycle since 01.01.2019. The official successor is 6GK1503-3CA01; this status applies only to the exact article number.

Frequently Asked Questions

What is 6GK1502-3CA10?

It is a PROFIBUS OLM/P12 V3.1 optical link module for coupling RS485 and plastic-fiber segments.

How many interfaces does it provide?

It has one RS485 interface and two plastic-fiber interfaces with four BFOC sockets.

Which diagnostic connections are included?

The official description includes a signaling contact and a test port.

Are BFOC connectors included?

Yes. Siemens states that four BFOC connectors are included with the article.

Can 6GK1503-3CA01 be installed without review?

No. It is the official successor, but power, network, connector, mounting and commissioning compatibility must be confirmed.
