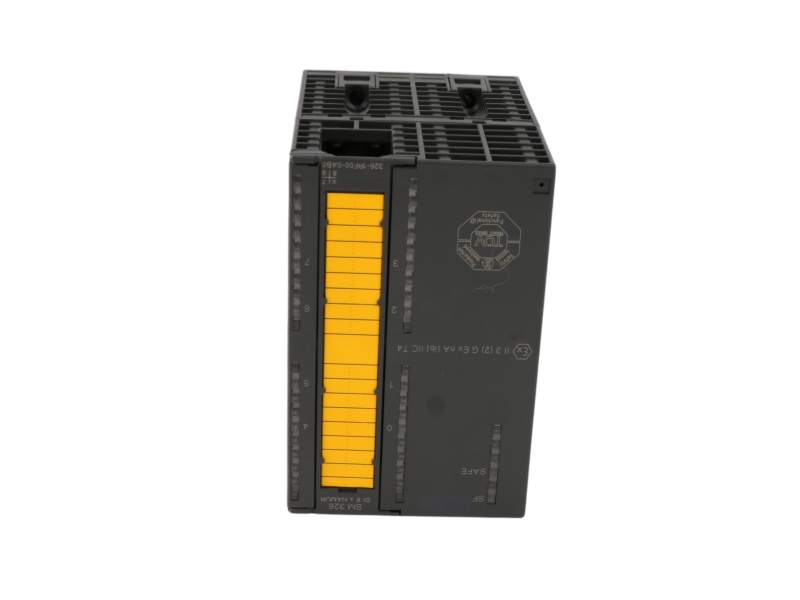

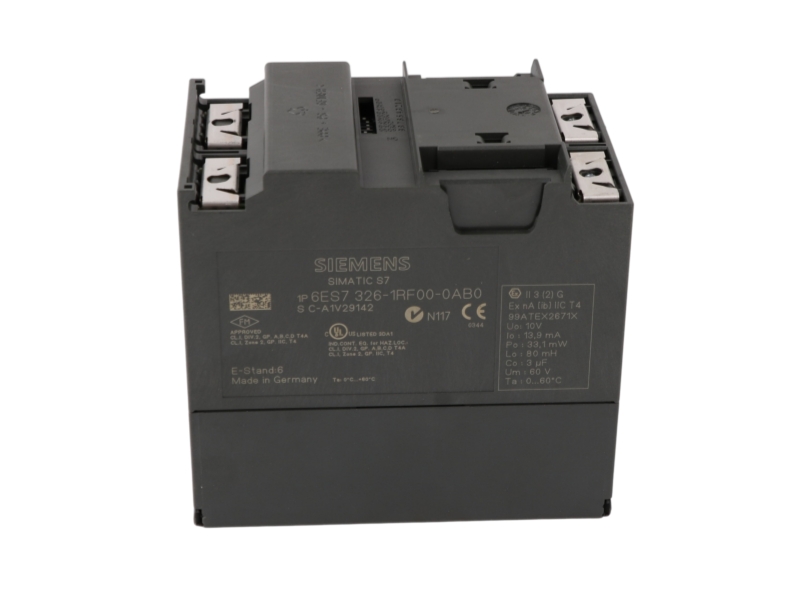

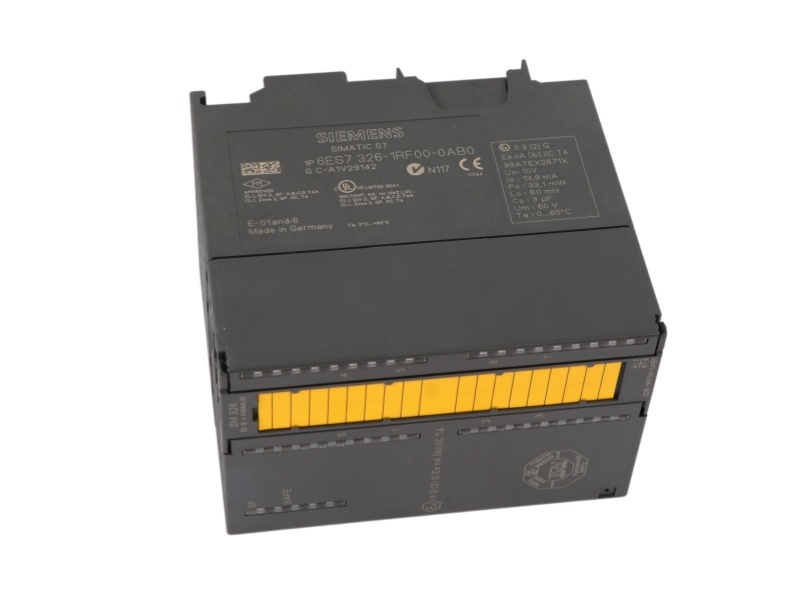

Siemens 6ES7326-1RF00-0AB0 SIMATIC S7-300 SM 326 Fail-Safe NAMUR Digital Input Module

Siemens 6ES7326-1RF00-0AB0 Eight-Channel 24 V DC F-DI NAMUR Module

Inquiry now

SIMATIC S7-300 SM 326

6ES7326-1RF00-0AB0

Fail-Safe NAMUR Digital Input Module

8 × NAMUR DI

24 V DC fail-safe input for S7 F-systems

Product Overview

The Siemens 6ES7326-1RF00-0AB0 is a SIMATIC S7-300 SM 326 fail-safe digital input module for NAMUR sensors in S7 F-system safety applications. It provides eight inputs that can be evaluated as eight single-channel or four two-channel safety signals.

The module uses a 24 V DC supply, provides eight 8.2 V DC encoder-supply outputs and supports diagnostic alarms. Procurement should match the exact article number because the official successor requires an application-level safety and compatibility review.

Product Snapshot
Manufacturer	Siemens
Product family	SIMATIC S7-300 SM 326
Complete part number	6ES7326-1RF00-0AB0
Accurate product type	Fail-Safe NAMUR Digital Input Module

Commercial Status

Commercial Status
Official lifecycle	PM490: Start of final year of support
Effective date	Product discontinued since 2024-05-01
Official successor	6ES7326-1RF01-0AB0
Procurement note	Product is no longer available from Siemens; verify exact revision, safety documentation and successor engineering before purchase.

Verified Technical Data

Technical Data
Module class	SIMATIC S7-300 SM 326 fail-safe digital input
Digital inputs	8; usable as 8 single-channel or 4 two-channel inputs
Rated supply voltage	24 V DC with reverse-polarity protection
Input characteristic	NAMUR / DIN 19234
Encoder supply	8 outputs at 8.2 V DC
Input delay	1.2 to 3 ms for 0→1 and 1→0
Cable length	Up to 200 m shielded; 100 m unshielded
Safety level	SIL 2 single-channel; SIL 3 two-channel; PL e / Category 4
Diagnostics	Diagnostic alarm, readable diagnostics, SF group-error LED and fail-safe-operation indication
Connector and size	1 × 40-pole front connector; 80 × 125 × 120 mm

System Fit and Applications

Safety-related process inputs

Acquire fail-safe NAMUR signals in SIMATIC S7 F-system architectures requiring defined single- or two-channel evaluation.

Hazardous-area sensor circuits

Interface certified Ex(i) NAMUR field signals when the complete loop, certificates and installation rules have been verified.

Legacy S7-300 maintenance

Replace the exact module in installed systems while preserving wiring, safety parameters and validated diagnostic behavior.

Compatibility and Procurement Checks

Exact article number

Confirm 6ES7326-1RF00-0AB0 on the module label; do not substitute 6ES7326-1RF01-0AB0 without engineering review.

Safety configuration

Check the F-system project, single- or two-channel evaluation, proof-test requirements and approved safety documentation.

Wiring and connector

Verify the required 40-pole connector, NAMUR sensor current levels, cable shielding and Ex(i) loop parameters.

Successor planning

The official successor is 6ES7326-1RF01-0AB0; assess hardware, parameterization and certification differences before migration.

Lifecycle Note

Siemens lists 6ES7326-1RF00-0AB0 as PM490: Start of final year of support, with “Product discontinued since: 01.05.2024,” and names 6ES7326-1RF01-0AB0 as successor. This lifecycle wording applies only to the exact article number.

Frequently Asked Questions

What type of module is 6ES7326-1RF00-0AB0?

It is a SIMATIC S7-300 SM 326 fail-safe digital input module with eight NAMUR inputs for S7 F-systems.

How many safety channels can it provide?

It supports eight single-channel inputs or four two-channel input evaluations, depending on the validated safety design.

What supply and connector are required?

The module uses 24 V DC and requires one 40-pole front connector.

Can I order 6ES7326-1RF01-0AB0 as a drop-in replacement?

No automatic equivalence should be assumed. Review hardware, parameterization, safety documentation and approval requirements first.

What should be supplied with a quotation request?

Provide the full article number, current module label, firmware or revision details, F-system project context, quantity and destination.

Request a Verified Quote for 6ES7326-1RF00-0AB0

Send the full article number, required quantity, destination and system context for stock, compatibility and warranty review.

Contact Stockoems for Availability

Service Support for 6ES7326-1RF00-0AB0

Documentation review, sourcing coordination and delivery support for industrial automation procurement.

Verification	Supply Coordination	After-Sales Support
Article number, condition, revision and visible identification are checked against order requirements.	Availability, packing, freight route and dispatch documents are coordinated before shipment.	Warranty terms, arrival inspection records and issue escalation are documented for the supplied unit.

Need Service Support for 6ES7326-1RF00-0AB0?

Share the full part number and application details so our team can prepare the correct service scope.
