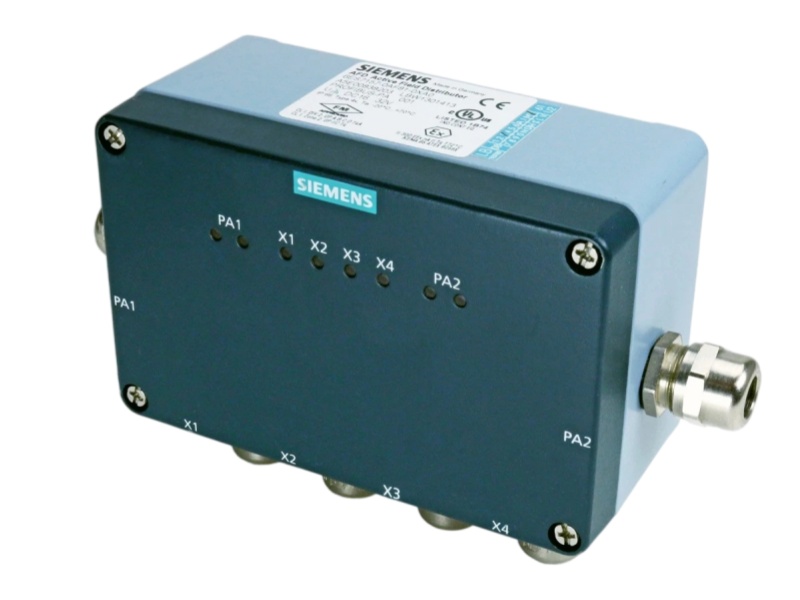

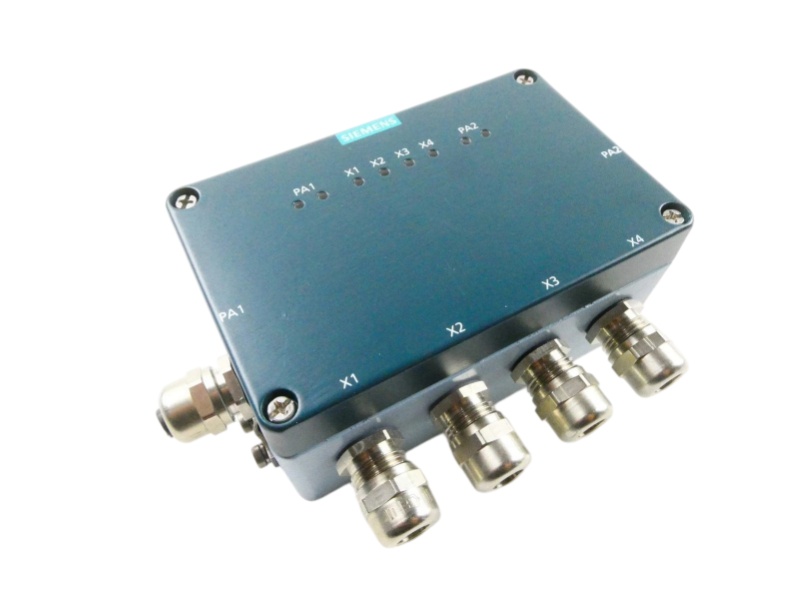

Siemens 6ES7157-0AF81-0XA0 SIMATIC DP AFD Active Field Distributor

Siemens 6ES7157-0AF81-0XA0 PROFIBUS PA Ring Active Field Distributor

Inquiry now

SIMATIC DP Active Field Distributor

6ES7157-0AF81-0XA0

AFD Active Field Distributor for PROFIBUS PA

AFD Version 02

PROFIBUS PA field distribution with IP65 housing

Product Overview

The Siemens 6ES7157-0AF81-0XA0 is an AFD active field distributor used on PROFIBUS PA and FOUNDATION Fieldbus installations. Siemens documentation identifies it as product version 02 and includes it in redundant ring configurations with FDC 157-0 DP/PA couplers.

Official product information specifies IP65 protection and screw-type terminals for product version 02. Siemens later describes AFD4 6ES7157-0AG81-0XA0 as functionally compatible with this earlier AFD, while warning that the replacement has larger dimensions.

Product Snapshot
Manufacturer	Siemens
Product family	SIMATIC DP Active Field Distributor
Complete part number	6ES7157-0AF81-0XA0
Accurate product type	AFD Active Field Distributor for PROFIBUS PA

Commercial Status

Commercial Status
Official lifecycle	Not entered — exact official lifecycle wording was not confirmed
Effective date	Not entered
Official successor	AFD4 6ES7157-0AG81-0XA0 is officially described as functionally compatible; dimensions differ
Procurement note	Verify product version, terminal design, environmental rating and replacement dimensions against Siemens documentation.

Verified Technical Data

Technical Data
Device class	Active field distributor AFD, product version 02
Supported fieldbus use	PROFIBUS PA and FOUNDATION Fieldbus installations
Topology role	Field distribution component used in PA/FF segments
Redundancy application	Documented for PROFIBUS PA ring-redundancy configurations
Enclosure protection	IP65 for product version 02
Terminal technology	Screw-type terminal block
System pairing	Used with FDC 157-0 DP/PA couplers in documented ring systems
Replacement reference	AFD4 6ES7157-0AG81-0XA0 is officially stated as functionally compatible
Replacement constraint	AFD4 has larger dimensions; mechanical fit must be checked
Documentation basis	Siemens DP/PA coupler and active field distributor operating instructions

System Fit and Applications

PROFIBUS PA field distribution

Distribute PA trunk communication to field-device connections in process automation installations.

Redundant PA ring architectures

Use as an active distributor within Siemens documented FDC 157-0 ring-redundancy designs.

Installed-base maintenance

Replace or service an existing AFD only after confirming product version, terminals, enclosure and available mounting space.

Compatibility and Procurement Checks

Exact designation

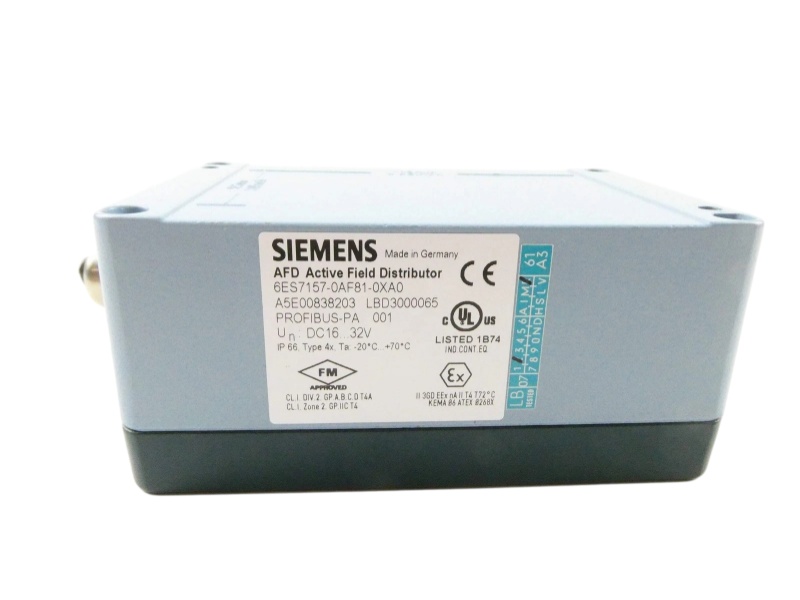

Confirm 6ES7157-0AF81-0XA0 and product version 02 on the label before sourcing.

Fieldbus architecture

Check whether the installed network is PROFIBUS PA or FOUNDATION Fieldbus and whether ring redundancy is configured.

Mechanical installation

Verify IP65 enclosure condition, screw-terminal wiring and mounting dimensions.

Replacement review

AFD4 6ES7157-0AG81-0XA0 is functionally compatible according to Siemens, but its larger dimensions require a fit check.

Lifecycle Note

An exact Siemens lifecycle label for 6ES7157-0AF81-0XA0 was not confirmed in the accessible official sources, so no Active, Phase Out, Discontinued or Obsolete status is assigned here. Siemens documentation identifies it as an earlier AFD model and names AFD4 6ES7157-0AG81-0XA0 as functionally compatible with different dimensions.

Frequently Asked Questions

What is 6ES7157-0AF81-0XA0?

It is a Siemens SIMATIC DP active field distributor, product version 02, for PA/FF fieldbus installations.

What enclosure and terminal design does version 02 use?

Siemens product information specifies IP65 protection and screw-type terminal technology.

Can it be used in a redundant PROFIBUS PA ring?

Yes, Siemens ring-redundancy documentation lists this AFD in systems using a pair of FDC 157-0 couplers.

Is 6ES7157-0AG81-0XA0 a direct mechanical replacement?

Siemens describes the AFD4 as functionally compatible, but explicitly warns that it has larger dimensions.

What should be verified before ordering?

Confirm the exact article number, product version, fieldbus topology, terminal condition, enclosure rating and available mounting space.
