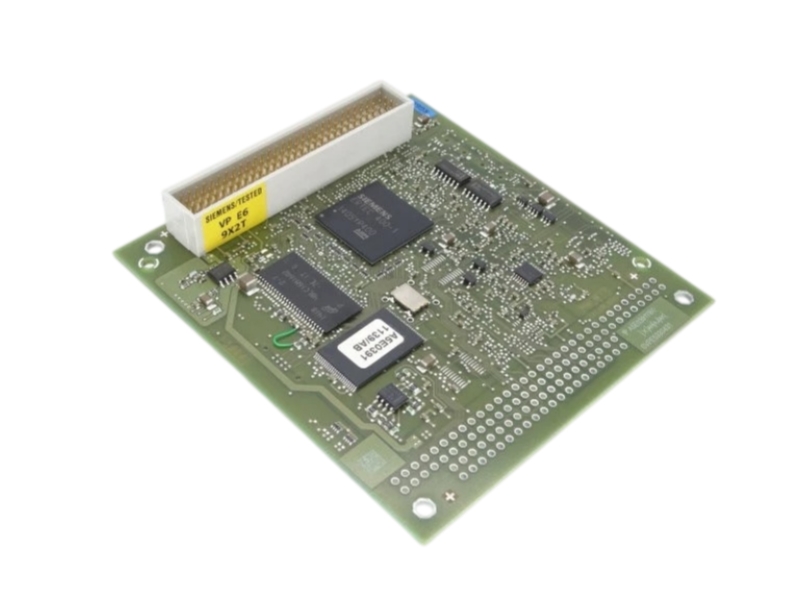

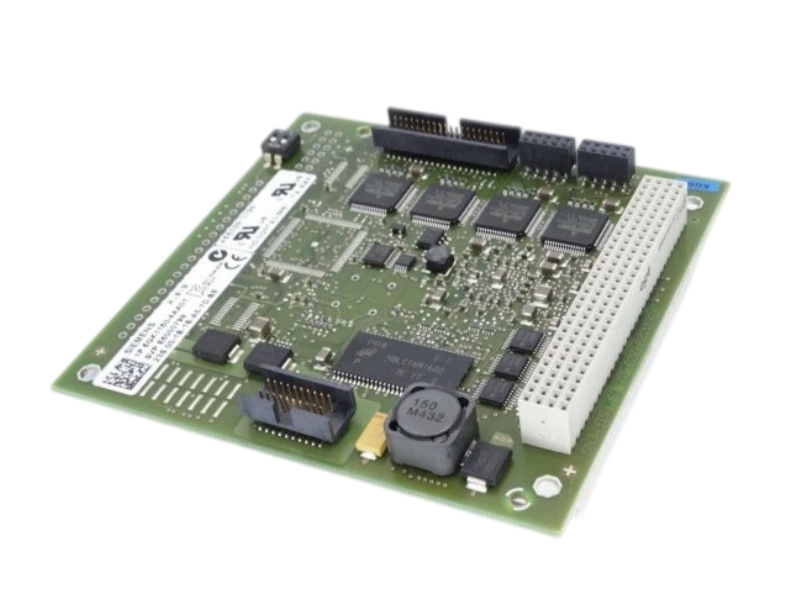

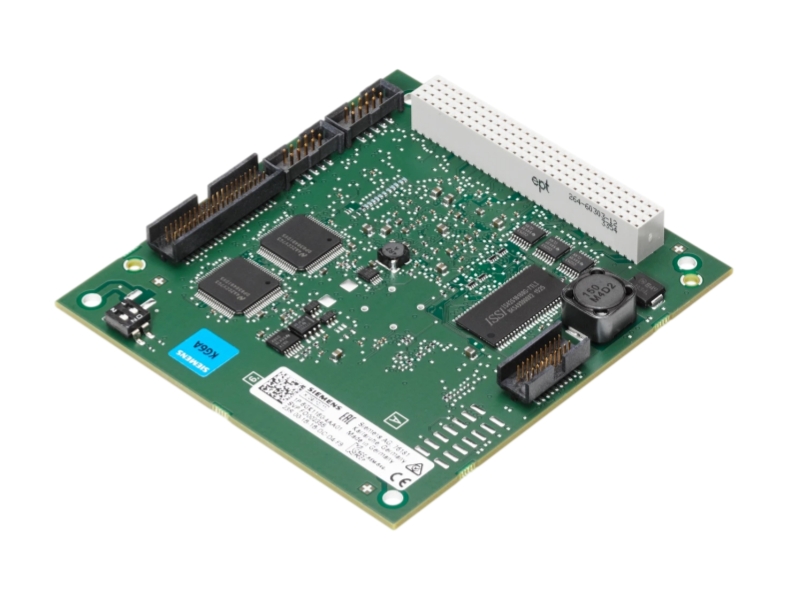

SIMATIC NET • CP 1604 PROFINET IO
A PC/104 Plus communication processor with ERTEC 400 and an integrated four-port real-time switch.
|
Siemens 6GK1160-4AA01 is a SIMATIC DP field-device interface that couples PROFIBUS DP to a non-intrinsically-safe PROFIBUS PA segment. It converts the DP transmission rate to the fixed PA rate while supplying the connected PA fieldbus. The card uses an ERTEC 400 ASIC to connect PC-based systems to PROFINET IO through an integrated four-port real-time switch. Siemens references DK-16XX PN IO and NCM PC for the development and configuration environment. |
Procurement identity
6GK1160-4AA01 SIMATIC NET CP 1604 Communication Processor Origin: Germany |
| Complete order number | 6GK1160-4AA01 |
|---|---|
| Manufacturer | Siemens |
| Product type | SIMATIC NET CP 1604 Communication Processor |
| Lifecycle status | PM400: Announcement of product phase-out |
| PLM effective date | Product phase-out since 01 October 2025 |
| Parameter | Official specification |
|---|---|
| Official designation | Communications processor CP 1604 |
| Article number | 6GK1160-4AA01 |
| Form factor | PC/104 Plus card |
| Bus width | 32-bit |
| Bus frequency | 33 or 66 MHz |
| Signaling voltage | 3.3 V or 5 V |
| Controller ASIC | ERTEC 400 |
| Industrial network | PROFINET IO |
| Integrated network ports | Four-port real-time switch |
| Engineering environment | Development Kit DK-16XX PN IO; NCM PC |
| Product family | CP 1604 |
| Lifecycle | PM400: Announcement of product phase-out |
| Lifecycle effective date | Product phase-out since 01 October 2025 |
| Packaging dimensions (L × W × H) | 95.00 × 90.00 × 24.00 mm |
| Net weight | 0.177 kg |
| Country of origin | Germany |
| RoHS status | Compliant according to Siemens product data |
| Use case | Role in the system |
|---|---|
| Embedded PROFINET IO | Adds PROFINET IO communication to compatible PC/104 Plus systems. |
| Real-time Ethernet switching | Provides four integrated real-time Ethernet ports through the ERTEC 400 architecture. |
| Installed-machine maintenance | Supports exact-card replacement where hardware, drivers and NCM PC configuration remain aligned. |
| 01 | Confirm the complete 6GK1160-4AA01 order number and board revision. |
| 02 | Verify the host provides a compatible 32-bit PC/104 Plus interface. |
| 03 | Record whether the host bus operates at 33 or 66 MHz and 3.3 V or 5 V. |
| 04 | Document all four PROFINET port connections and device names. |
| 05 | Confirm the installed DK-16XX PN IO or NCM PC software environment. |
| 06 | Evaluate successor Product phase-out since 01 October 2025 as a separate migration project. |
It is a 32-bit PC/104 Plus card supporting 33 or 66 MHz and 3.3 V or 5 V signaling.
The ERTEC 400-based processor provides an integrated four-port real-time switch for PROFINET IO.
Siemens identifies Product phase-out since 01 October 2025 as the successor, but wiring, mounting, termination and project requirements must be checked separately.
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
FIELD DEVICE PROCUREMENT SUPPORT
A procurement-focused review of CP 1604 identity, PC/104 Plus host conditions, PROFINET topology, software environment, condition evidence, packing and delivery.
Label RecordComplete order number, board revision and serial evidence. |
Interface RecordPC/104 Plus connector and four-port PROFINET photographs. |
Condition RecordPCB, ports, mounting points and component condition. |
| Stage | Review item | Procurement outcome |
|---|---|---|
| 01 · Identify | Order label, board revision and serial markings | Establishes the exact CP 1604 card variant |
| 02 · Match | PC/104 Plus bus speed and signaling voltage | Checks host-interface alignment |
| 03 · Map | Four PROFINET ports, device names and topology | Records the installed network context |
| 04 · Inspect | PCB, edge connectors, ports and mounting points | Provides condition evidence before supply |
| 05 · Protect | Anti-static bag, port covers and rigid packing | Reduces electrostatic and transport risk |
| 06 · Deliver | Quantity, destination, warranty terms and shipment method | Defines the quotation and fulfilment scope |
| 1 | Complete order code: 6GK1160-4AA01 |
| 2 | Board label and revision photographs |
| 3 | Host PC/104 Plus bus and power information |
| 4 | Four-port PROFINET topology and device-name record |
| 5 | DK-16XX PN IO or NCM PC version information |
| 6 | Quantity, condition preference, destination and required date |
| Packing | Connector protection, anti-static wrapping and reinforced outer packing |
|---|---|
| Condition evidence | Label and physical-condition images retained with the supply record |
| Delivery | Trackable international shipment to the confirmed destination |
| Warranty | Terms stated in the quotation for the specific offered item |
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
