A redundant ten-channel 24 VDC fail-safe digital-output marshalling termination assembly for ET 200M systems.
Siemens 6ES7650-1AL11-6XX0 is the SIMATIC PCS 7 F-DO10 marshalled termination assembly for redundant connection of the ET 200M fail-safe digital output module 6ES7326-2BF10-0AB0. It provides ten 24 VDC output channels with individual channel fusing.
The assembly combines redundant power inputs, dual I/O-module connectors, module and channel fuse monitoring, LED indication, pluggable field terminals and shield connections in a DIN-rail-mounted short MTA housing.
| Official Product Record | |
|---|---|
| Complete order number | 6ES7650-1AL11-6XX0 |
| Manufacturer | Siemens |
| Product type | F-DO10 Marshalled Termination Assembly |
| Product family | SIMATIC PCS 7 / ET 200M MTA |
| Commercial status | Phase Out Announce |
| Parameter | Official specification |
|---|---|
| Compatible I/O module | 6ES7326-2BF10-0AB0, E-Stand 3 or higher |
| Output channels | 10 fail-safe digital outputs |
| Output range | 24 V DC |
| Power input | 21.6 to 28.8 V DC, single or redundant feed |
| Current, all outputs ON | 10.570 A maximum |
| Current, all outputs OFF | 0.575 A normal |
| Power dissipation | 7 W typical |
| Channel fusing | 1.0 A per channel |
| Module fusing | 10 A / 125 V |
| Isolation | No isolation between channels or channel groups |
| Functional safety | SIL 3; PL e; Category 4 |
| Proof-test time | 20 years |
| Mounting | 35 mm DIN rail, horizontal or vertical |
| Ambient temperature | −25 to +70 °C horizontal with derating; up to +60 °C vertical |
| Housing format | Short-version MTA |
| Packaging dimensions | 17.6 × 13.7 × 8.4 cm |
| Net weight | 0.449 kg |

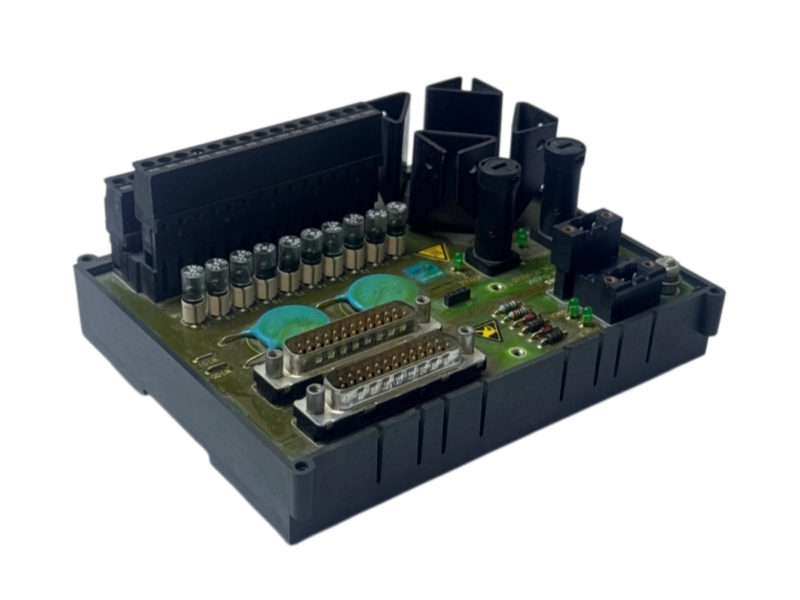

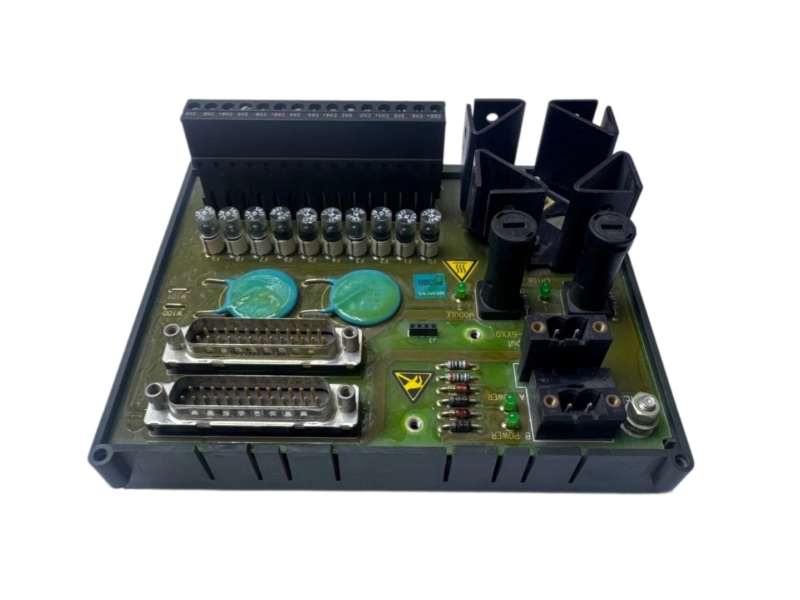

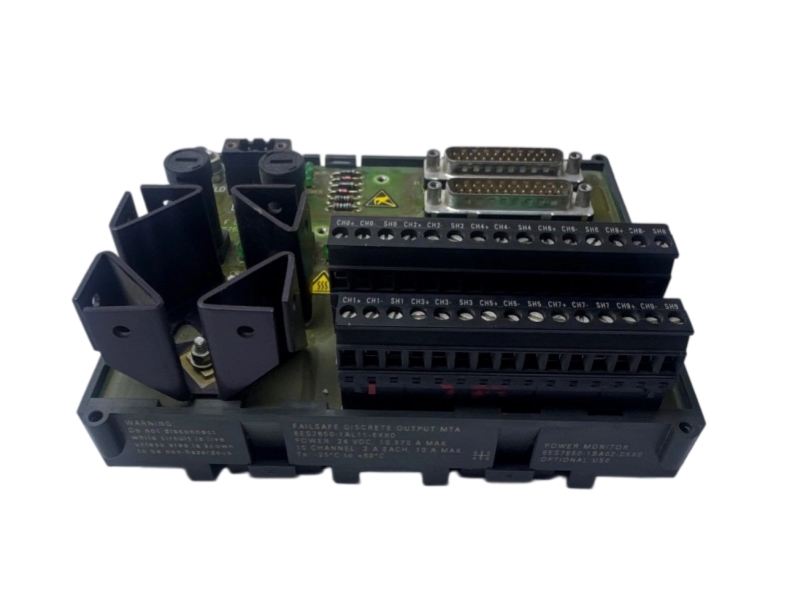

Use three current images to record identity, connection points and overall condition.
|
|
|
| Application | Product role |
|---|---|
| Redundant ET 200M F-DO | Connects two I/O module paths to ten individually fused field-output channels. |
| PCS 7 safety systems | Provides terminal-level power distribution, indication and shield management. |
| Maintenance replacement | Supports like-for-like replacement when module revision, cable and field wiring are matched. |
The current Siemens SiePortal product record lists Phase Out Announce. Replacement planning should therefore retain the exact MTA order number, ET 200M module revision, wiring record and fuse configuration.
It connects redundant ET 200M F-DO modules to ten individually fused 24 VDC output channels.
Siemens documents the MTA for 6ES7326-2BF10-0AB0, E-Stand 3 or higher.
Record both power feeds, module connectors, channel wiring, fuse values, shield jumpers and MTA revision.
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
MTA identity review, wiring-record checks, fuse and power-path inspection, protected packing and delivery coordination.
Identity ReviewOrder number, housing revision and terminal markings are recorded. |
Power-Path ReviewRedundant feeds, module fuses, channel fuses and LEDs are inspected. |
Protected LogisticsPluggable terminals, latches and DIN-rail housing are protected for shipment. |
| Stage | Review item | Procurement value |
|---|---|---|
| Identity | Complete MTA label and housing revision | Prevents substitution with another MTA channel type |
| Electrical fit | Power feeds, fuses, connectors and field wiring | Supports a controlled like-for-like replacement |
| Supply | Quantity, condition and destination | Defines quotation, packing and delivery scope |
The service review covers the paired ET 200M module connectors, redundant 24 VDC power paths, 10 A module fuses, 1 A channel fuses, field terminals, shield jumpers, earth-ground stud, LED indicators and optional power-monitor board.
| Packing | Anti-static or impact protection appropriate to the supplied product, with reinforced outer packing |
| Condition record | Label and physical-condition photographs retained with the supply record |
| Delivery | Trackable international shipment to the confirmed destination |
| Warranty | Terms stated in the quotation for the specific offered item |
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
