A 16-bit processor module for technological control, calculation and regulation tasks in SIMADYN D systems.

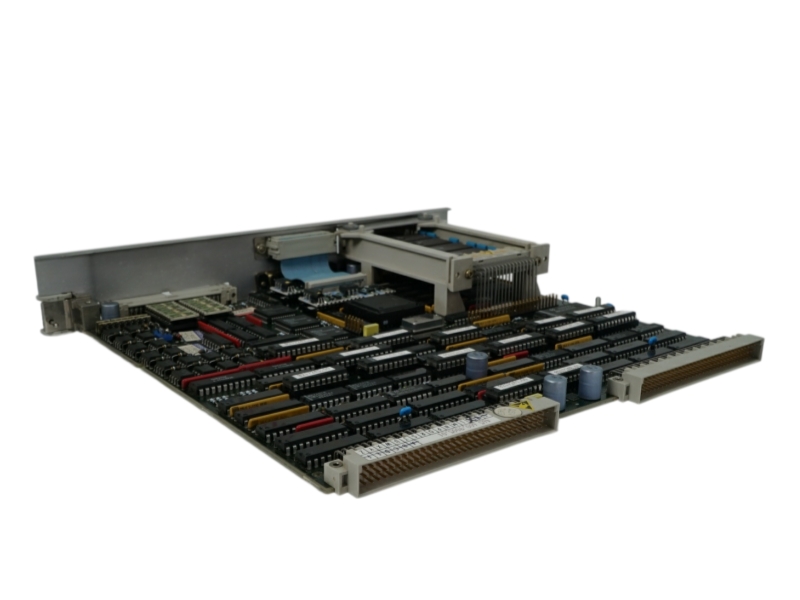

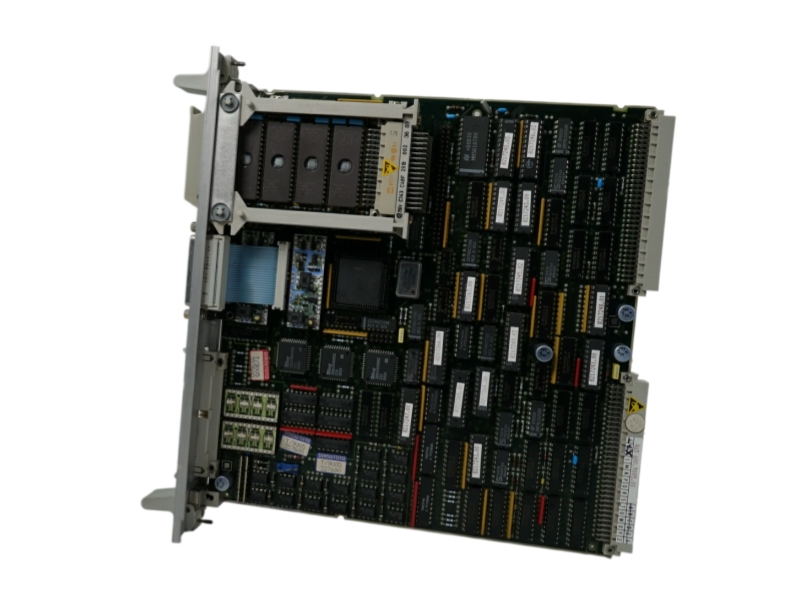

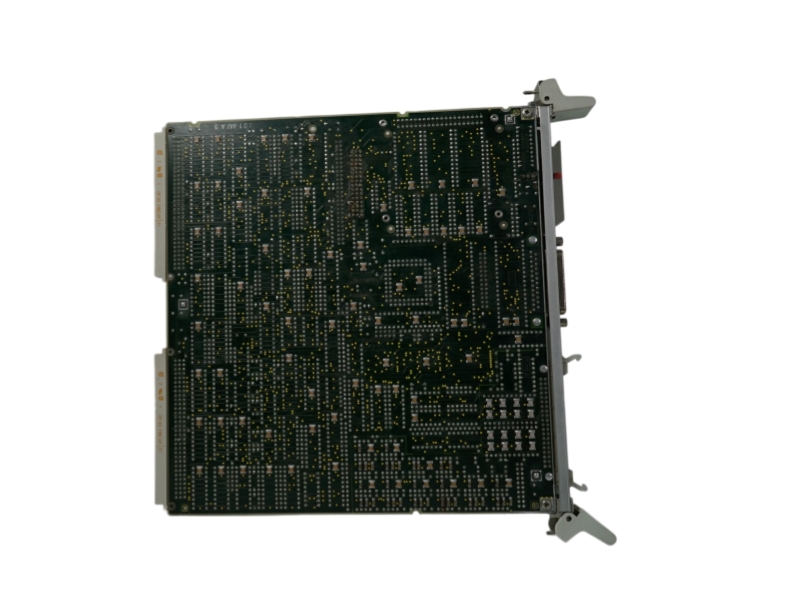

Siemens 6DD1600-0AF0 is the SIMADYN D PM16 processor module with 128 KB RAM for software versions from 3.0. The module uses a CMOS 16-bit 80C186 processor at 16 MHz and runs user programs under the SIMADYN D real-time operating system.
PM16 handles general technological control, calculation and regulation tasks above drive-level torque-shell functions. The board provides fast process I/O, selectable serial communications and rack-bus connections for established SIMADYN D installations.
| Official Product Record | |
|---|---|
| Complete order number | 6DD1600-0AF0 |
| Manufacturer | Siemens |
| Module designation | PM16 processor module |
| System | SIMADYN D digital control system |
| Commercial status | Product is no longer available |
| Parameter | Official specification |
|---|---|
| Processor | CMOS 16-bit 80C186, 16 MHz |
| RAM | 128 KB, battery-buffered by the power supply |
| Software version | For software versions from 3.0 |
| Program memory | Plug-in MS31 or MS3 memory module at X50 |
| Real-time cycle | Fixed cycle times ≥ 1 ms, configuration-dependent |
| Binary inputs | 16, non-isolated; software-selectable interrupt inputs |
| Binary outputs | 16, non-isolated; 24 V external supply, 50 mA rated output |
| Process I/O connector | X5 |
| Serial interfaces | 2; selectable V.24 (RS232), 20 mA (TTY) or RS485 using interface modules |
| Maximum serial data rate | 19.2 kBd with SS1/SS2; 1.0 MBd with SS3 RS485 |
| Rack space | Two standard slots |
| Dimensions | 233.4 × 220 mm; board width 40.28 mm |
| Weight | 0.7 kg |
| Operating temperature | 0 to 55 °C with forced ventilation |
| Storage temperature | −40 to +70 °C |
Use three current images to record identity, interfaces and overall condition.
|
|
|
| Application | PM16 role |
|---|---|
| Technological control | Processes general control, calculation and regulation functions above the drive torque shell. |
| Process I/O exchange | Uses 16 binary inputs and 16 binary outputs through X5 and external interface modules. |
| Installed-base maintenance | Supports PM16 replacement planning in SR1/SR5 and SR2/SR4 SIMADYN D racks. |
The Siemens product data sheet states: Product is no longer available. Procurement should therefore focus on exact order-number matching, documented condition, project-memory handling and controlled replacement planning.
It is the SIMADYN D PM16 processor module with 128 KB RAM for software versions from 3.0.
The two serial interfaces can use V.24 (RS232), 20 mA (TTY) or RS485 through the corresponding hybrid interface modules.
Confirm the full order number, hardware revision, rack arrangement, MS31/MS3 program memory, serial-interface modules, X5 wiring and project backup.
Send the required quantity, condition preference, delivery destination and current module photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
Order-number review, project-memory planning, condition evidence, protected packing and worldwide delivery coordination.
Identity ReviewOrder number, revision, serial markings and fitted submodules are recorded. |
Project-Memory PlanningMS31/MS3 media, firmware context and project-backup requirements are documented. |
Protected LogisticsBoard edges, connectors and fitted modules are protected for traceable shipment. |
| Stage | Review item | Procurement value |
|---|---|---|
| Identity | 6DD1600-0AF0 label, hardware revision and serial marking | Avoids mix-up with other 6DD1600 variants |
| Configuration | Memory media, serial hybrids, X5 wiring and rack context | Builds a controlled replacement checklist |
| Supply | Quantity, condition preference, destination and required date | Supports an item-specific offer and delivery plan |
For the PM16, the review covers the two-slot SIMADYN D rack position, MS31/MS3 program memory, SS1/SS2/SS3 hybrid interface modules, X01/X02 serial connections, X5 binary I/O and the related project backup. The module must not be inserted or removed while energized.
| Packing | Anti-static protection, connector shielding, board-edge support and reinforced outer packing |
| Condition record | Label and physical-condition photographs retained with the supply record |
| Delivery | Trackable international shipment to the confirmed destination |
| Warranty | Terms stated in the quotation for the specific offered unit |
Send the order label, quantity, condition requirement, destination and rack or project context for a quotation review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
