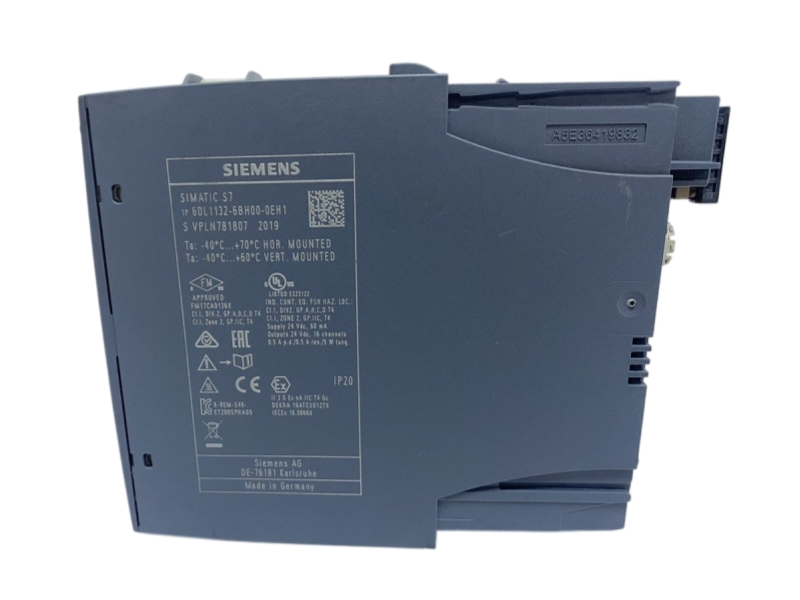

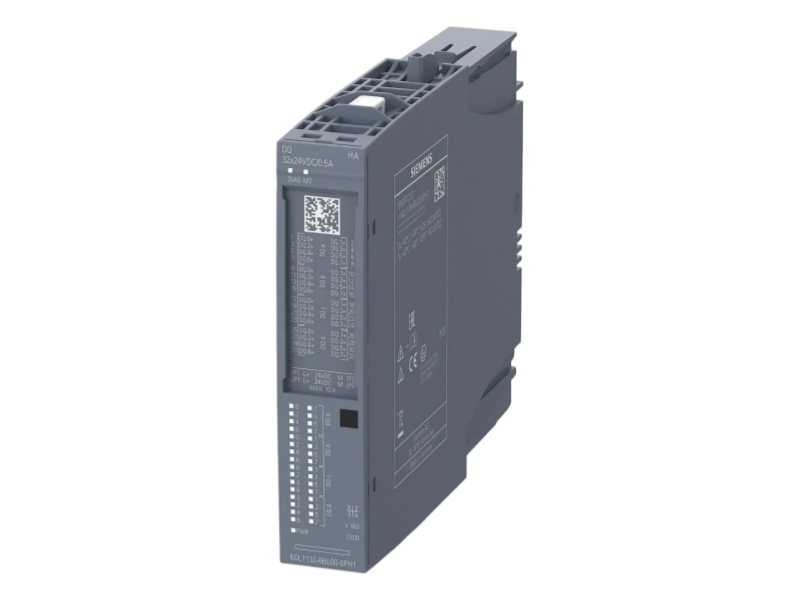

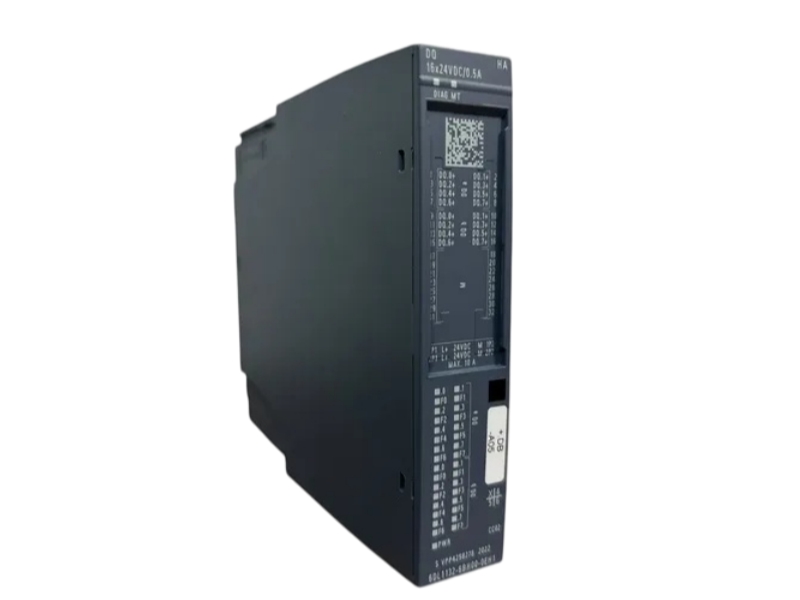

Siemens 6DL1132-6BH00-0EH1 SIMATIC ET 200SP HA DQ 16x24VDC/0.5A Digital Output Module
Verified product identity, system fit and procurement checks
Product Overview
The Siemens 6DL1132-6BH00-0EH1 is a SIMATIC ET 200SP HA digital output module designated DQ 16x24VDC/0.5A. The official equipment manual confirms sixteen 24 V DC outputs, 0.5 A per channel, firmware V1.0, update capability and use with H1 or M1 terminal blocks. Redundant operation is supported with the M1 terminal block, while channel diagnostics cover wire break, short circuit and supply monitoring. The module is configurable in SPPA-T3000 from version V8.0. Procurement should verify the exact suffix, terminal block, firmware, redundancy architecture, load current, wiring and project configuration before installation or replacement.
Commercial Status
| Product Condition |
Original new |
| Availability |
In stock |
| Warranty |
With 1 year warranty |
| Shipping |
Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
| Manufacturer |
Siemens |
| Complete Part Number |
6DL1132-6BH00-0EH1 |
| Product Type |
SIMATIC ET 200SP HA digital output module |
| Module Designation |
DQ 16x24VDC/0.5A |
| Number of Channels |
16 digital outputs |
| Rated Supply Voltage |
24 V DC |
| Permissible Supply Range |
19.2 to 28.8 V DC |
| Output Current |
0.5 A per channel |
| Firmware Version |
V1.0; firmware update possible |
| Usable Terminal Blocks |
H1 and M1 |
| Redundancy |
Supported with terminal block M1 |
| Engineering |
SPPA-T3000 from version V8.0 |
| Color Code |
CC02 |
| Diagnostics |
Supply monitoring, wire break, short circuit to M, short circuit to L+ and group error |
| Operating Temperature |
-40 to +70 °C horizontal; -40 to +60 °C vertical |
| Country of Origin |
Germany |
System Fit and Applications
| System Fit |
SIMATIC ET 200SP HA distributed I/O stations using the exact output module and terminal block |
| System Role |
Sixteen-channel 24 V DC digital output module for process actuators and status control |
| Typical Applications |
High-availability process I/O, distributed control cabinets, actuator control, maintenance and module replacement |
| Critical Checks |
Complete suffix, firmware, H1 or M1 terminal block, redundancy design, 24 V DC supply, channel load, wiring, diagnostics and SPPA-T3000 project version |
Compatibility and Procurement Checks
Confirm the complete suffix, firmware V1.0, H1 or M1 terminal block, redundancy architecture, 24 V DC supply range, channel load, field wiring, output diagnostics, mounting orientation and SPPA-T3000 project release. The EH1 and PH1 variants must not be interchanged without exact system and certification review.
Lifecycle Note
The reviewed Siemens exact-model equipment manual confirms the hardware and engineering data but does not state a lifecycle classification. Procurement should consult the current Siemens lifecycle record for 6DL1132-6BH00-0EH1 and verify firmware, terminal block, redundancy and project release before ordering.
Frequently Asked Questions
What does 6DL1132-6BH00-0EH1 identify?
It identifies a Siemens SIMATIC ET 200SP HA DQ 16x24VDC/0.5A digital output module.
How many output channels are provided?
The official manual specifies sixteen digital outputs rated for 24 V DC and 0.5 A per channel.
Which terminal blocks are supported?
Siemens lists H1 and M1 terminal blocks; redundancy capability requires terminal block M1.
Which engineering release is documented?
The module can be configured and integrated in SPPA-T3000 from version V8.0.
Which diagnostics are available?
Documented diagnostics include supply monitoring, wire break, short circuit to M or L+ and group error.
What should be reviewed before replacement?
Check the suffix, firmware, terminal block, redundancy architecture, supply, loads, wiring and project configuration.
