Siemens 6ES7650-1AH61-5XX0 is a six-channel fail-safe HART analog input MTA for ET 200M safety applications and field wiring.
The Siemens 6ES7650-1AH61-5XX0 is a six-channel fail-safe analog input HART Marshalled Termination Assembly for ET 200M remote I/O. Siemens designed it to interface with the 6ES7336-4GE00-0AB0 six-channel F Analog Input HART module and to organize protected field wiring, power distribution and HART access.

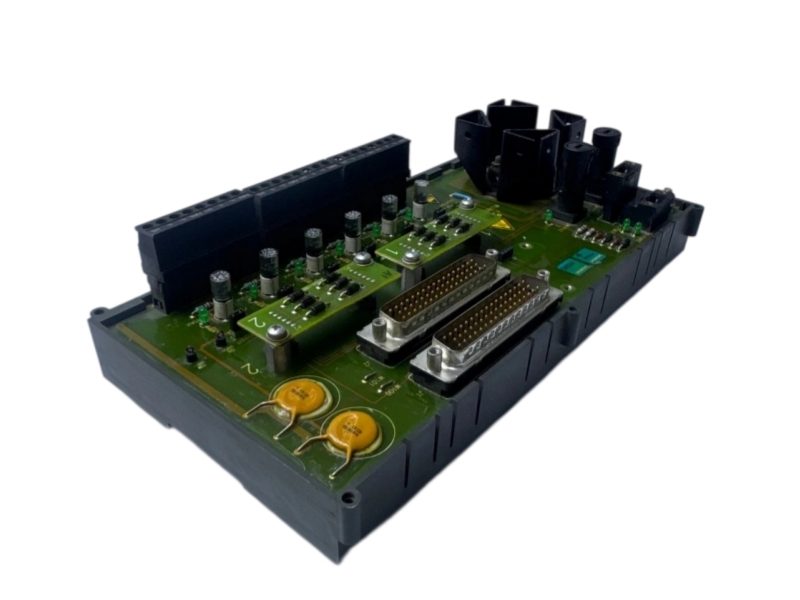

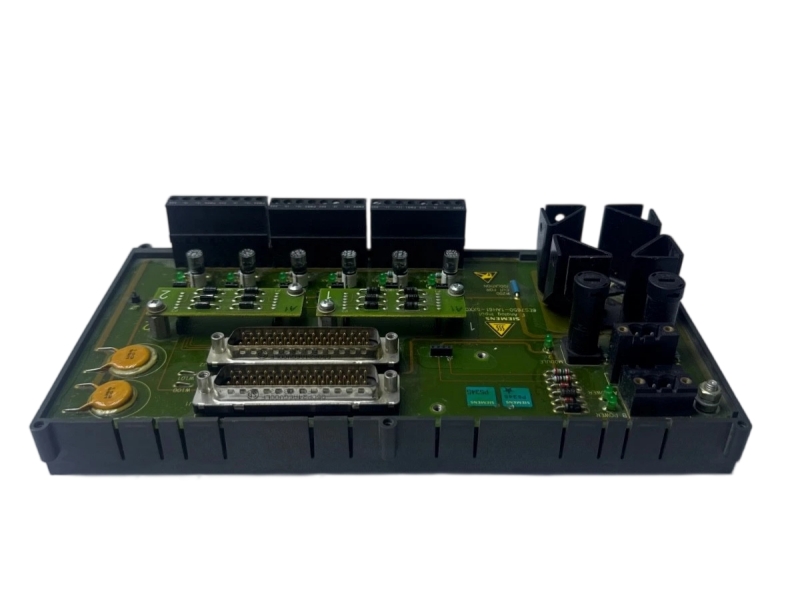

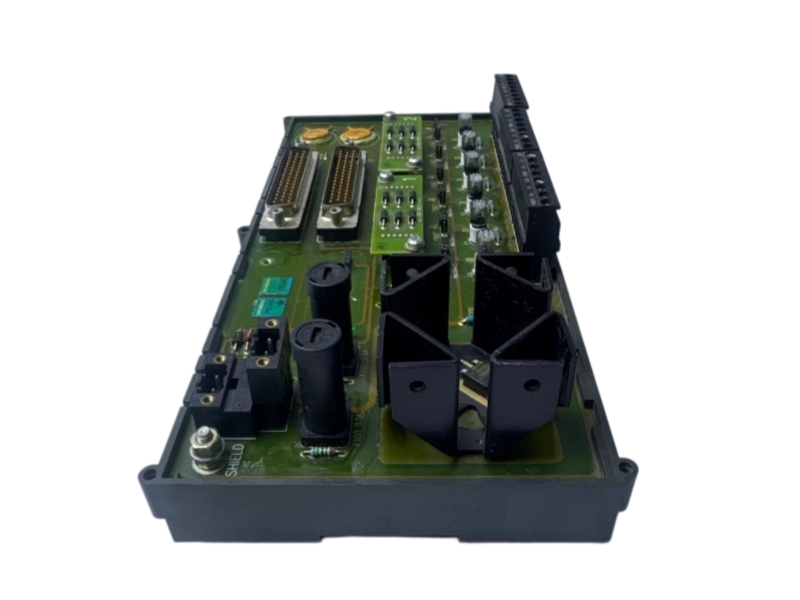

The MTA provides redundant power connections, indication for redundant and individual channel supply, per-channel field-power fusing, dual connectors for redundant I/O module operation, pluggable diode boards, shield connections and a ground stud. It also provides HART handheld terminal connectivity for each channel.
| Official Siemens designation | 6-Channel F Analog Input HART MTA |
|---|---|
| Associated I/O module | 6ES7336-4GE00-0AB0 |
| Official documentation | Siemens ET 200M Marshalled Termination Assemblies manual |
| Safety capability | Maximum SIL 3 in safety mode according to IEC 61508 |
| Manufacturer | Siemens |
|---|---|
| System | SIMATIC PCS 7 / ET 200M MTA |
| Product type | 6-channel fail-safe HART analog input MTA |
| Channels | 6 |
| Associated module | 6ES7336-4GE00-0AB0 |
| Mounting | 35 mm deep top-hat DIN rail |
| Power input | 21.6 to 28.8 V DC; single or redundant feed |
| Normal current consumption | 0.5 A maximum with all channels connected |
| Channel fuse | 0.1 A fast-blow standard |
| Module power fuse | 0.5 A |
| Ambient temperature | -25 to 60 °C |
| Relative humidity | 5% to 95%, non-condensing |
| Safety integrity | Maximum SIL 3 according to IEC 61508 |
| Proof-test interval | 20 years |
Use current photographs to verify the exact article identity, interfaces and physical condition before procurement approval.
 |
 |
 |
| Application | Engineering Relevance |
|---|---|
| Fail-safe process analog input | Terminates safety-related HART transmitters for the matching ET 200M F-AI module. |
| Redundant I/O arrangements | Dual connectors support redundant I/O module operation where engineered. |
| Marshalling cabinet integration | Organizes field power, shields, grounding and pluggable terminations. |
| HART maintenance access | Provides per-channel connectivity for a HART handheld terminal. |
Siemens continues to identify 6ES7650-1AH61-5XX0 in the ET 200M MTA manual and separately documents changes for the later 6ES7650-1AH62-5XX0 variant. The exact suffix, paired I/O module and safety documentation must be preserved; no lifecycle status is inferred beyond the official exact-model records.
It is a six-channel fail-safe HART analog input MTA for ET 200M remote I/O.
Siemens specifies the 6ES7336-4GE00-0AB0 six-channel F Analog Input HART module.
The official specification lists 21.6 to 28.8 V DC with single or redundant feed.
Yes. It includes per-channel field-power fusing and separate module-power fusing.
Siemens lists a maximum SIL 3 capability in safety mode according to IEC 61508.
Check the exact suffix, paired module, power feeds, fuses, channel wiring, shields, HART access and safety validation.
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
Structured support for exact-part identification, compatibility review, condition evidence, packing and international delivery.
Exact Identity ReviewWe compare the complete 6ES7650-1AH61-5XX0 code, nameplate, housing and installed connections before quotation. |
Condition EvidenceAvailable units may be documented with readable label, connector, terminal, enclosure and packaging photographs. |
Packing and DeliveryProtective packing, shipping documentation and trackable worldwide delivery options are coordinated. |
| Service Stage | What We Review | Customer Value |
|---|---|---|
| Part-number verification | Manufacturer, complete suffix and label identity | Reduces the risk of receiving a similar but incompatible variant |
| Technical configuration | Channels, Associated module, Mounting, Power input | Supports a more accurate match to the installed system |
| Compatibility review | Interfaces, wiring, software or mechanical fit | Highlights integration checks before installation |
| Condition confirmation | Label, terminals, enclosure and packaging | Provides visible evidence for purchasing approval |
| Commercial review | Quantity, condition, lead time and destination | Clarifies written offer terms before ordering |
| Dispatch support | Final check, packing, documents and tracking | Supports traceable international delivery |
| 01 Requirement | 02 Technical Check | 03 Written Offer | 04 Inspection | 05 Dispatch |
|---|---|---|---|---|
| Part number, quantity and destination | Configuration and system fit | Condition, lead time and terms | Photo and physical review | Packing, documents and tracking |
The MTA provides redundant power connections, indication for redundant and individual channel supply, per-channel field-power fusing, dual connectors for redundant I/O module operation, pluggable diode boards, shield connections and a ground stud. It also provides HART handheld terminal connectivity for each channel.
Final selection and engineering approval remain the responsibility of the plant, machine builder or system integrator. Written order terms should identify the full model, condition, quantity and any revision requirement.
| Pre-shipment evidence | Available label, unit-condition and packaging photographs can be supplied for review. |
|---|---|
| Packing | Industrial components are protected against impact, contamination and movement during transit. |
| Worldwide shipping | Carrier and routing options are reviewed against the destination and applicable trade restrictions. |
| Warranty | Eligible products carry a 12-month limited warranty unless different written terms are agreed. |
| After-sales communication | Keep the order reference, label photographs and fault description available for any support request. |
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
