SIMATIC ET 200SP / FAIL-SAFE CONTROL

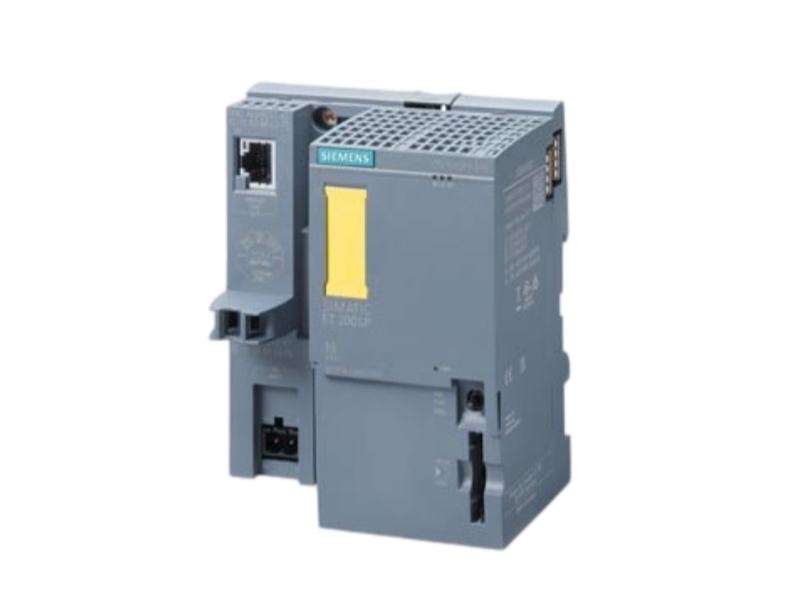

SIMATIC ET 200SP CPU 1514SP F-2 PN
Siemens 6ES7514-2SN03-0AB0 is a SIMATIC ET 200SP CPU 1514SP F-2 PN for standard and fail-safe automation tasks. Siemens specifies 900 KB work memory for the program, 3.5 MB for data, six-nanosecond bit performance and two PROFINET interfaces. The first interface supports PROFINET IRT through a two-port switch; the second supports PROFINET RT. A server module is included, while a SIMATIC Memory Card and a BusAdapter for the first interface are required. Before ordering, verify the complete article number, safety project, firmware, interfaces, BusAdapter and memory-card requirements.
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
01 SAFETY PROJECT
Approved engineering defines safety and control behavior.
02 PROCESSING
The distributed CPU executes logic with documented memory.
03 COMMUNICATION
IRT and RT connect the engineered automation system.
Match 6ES7514-2SN03-0AB0 exactly. Verify the F-project, firmware, safety signature, SIMATIC Memory Card, BusAdapter, included server module and both PROFINET configurations.
| OFFICIAL TECHNICAL DATA | |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7514-2SN03-0AB0 |
| Product type designation | CPU 1514SP F-2 PN |
| Platform | SIMATIC ET 200SP |
| Official lifecycle | Active Product |
| Program work memory | 900 KB |
| Data work memory | 3.5 MB |
| Bit performance | 6 ns |
| First interface | PROFINET IRT with two-port switch |
| Second interface | PROFINET RT |
| Included component | Server module 6ES7193-6PA00-0AA0 |
| SIMATIC Memory Card | Required |
| BusAdapter for first interface | Required |
| Approximate net weight | 342 g |
| Country of origin | Germany |
Safety-related use requires current Siemens manuals, an approved engineering workflow and application-specific validation.
The CPU combines distributed ET 200SP control, fail-safe processing and two separate PROFINET interfaces. Commissioning must align hardware, firmware, safety signature, F-program, memory card, BusAdapter, server module and network configuration.
Match 6ES7514-2SN03-0AB0 exactly. Verify the F-project, firmware, safety signature, SIMATIC Memory Card, BusAdapter, included server module and both PROFINET configurations.
Match 6ES7514-2SN03-0AB0 exactly. Verify the F-project, firmware, safety signature, SIMATIC Memory Card, BusAdapter, included server module and both PROFINET configurations.
It is identified on this page as SIMATIC ET 200SP CPU 1514SP F-2 PN.
Siemens identifies 6ES7514-2SN03-0AB0 as PM300 Active Product.
Verify the complete suffix, associated hardware, wiring, power, project configuration and applicable engineering documentation.
Condition, availability and the one-year warranty are Stockoems commercial terms, not manufacturer commitments.
Match 6ES7514-2SN03-0AB0 exactly. Verify the F-project, firmware, safety signature, SIMATIC Memory Card, BusAdapter, included server module and both PROFINET configurations.
No automatic substitution should be assumed. Match the full part number and obtain responsible engineering approval.
