SIMATIC ET 200SP / ANALOG OUTPUT
SIMATIC ET 200SP AQ 2xI ST Analog Output Module

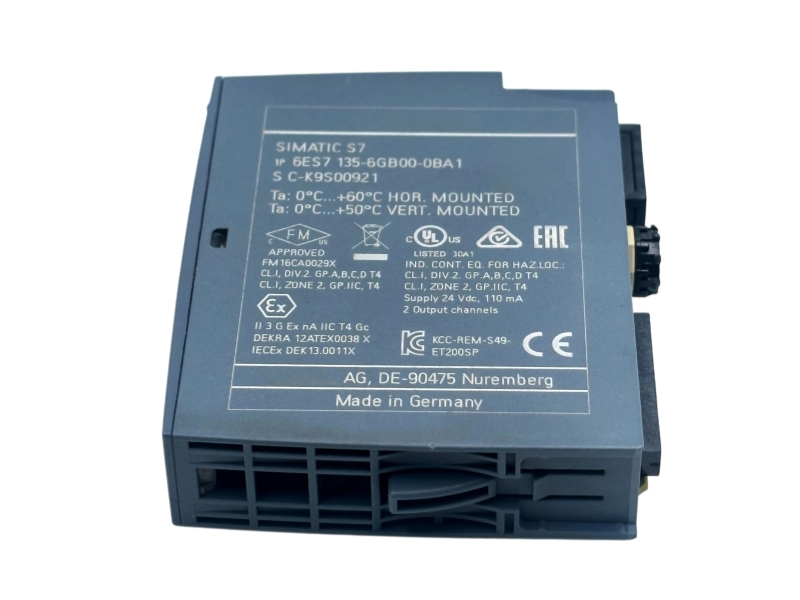

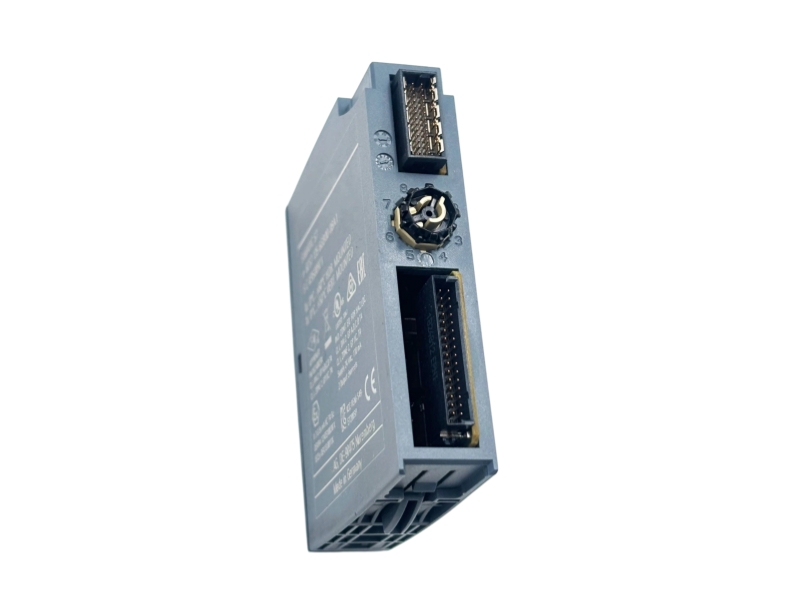

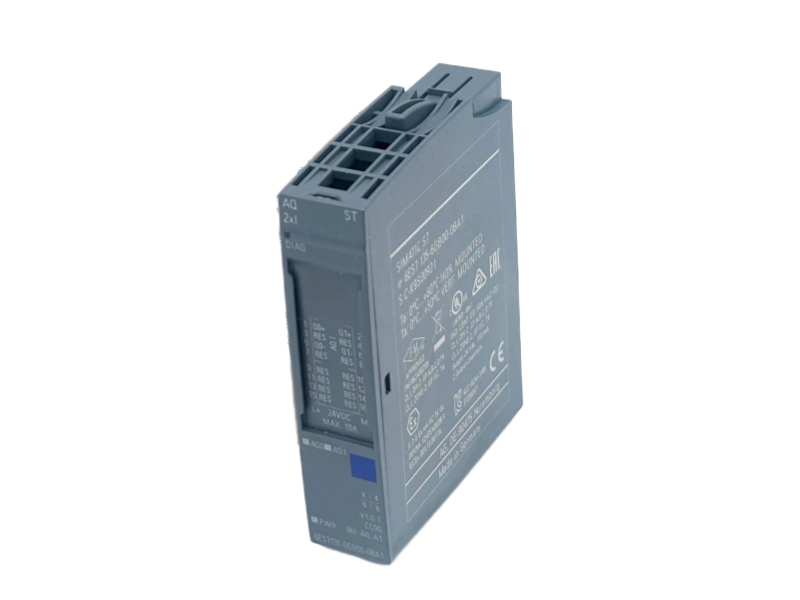

Siemens 6ES7135-6GB00-0BA1 is a SIMATIC ET 200SP AQ 2xI Standard analog output module for controlled current signals. The module provides two analog outputs, supports selectable current ranges and includes module diagnostics with 16-bit conversion. It uses an ET 200SP BaseUnit of type A0 or A1 and operates from a 24 V DC supply. Before ordering, verify the complete article number, BaseUnit, wiring, current range, firmware status and engineering environment. Stockoems provides condition and availability information, item photographs, packaging and worldwide shipment coordination under its own commercial terms.
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
01 CONTROL VALUE
The controller provides the process output value.
02 CONVERSION
Two channels convert data into selected current ranges.
03 FIELD DEVICE
Verify wiring, load and permitted output range.
Match 6ES7135-6GB00-0BA1 exactly and verify BaseUnit type A0 or A1, color code CC00, selected current range, potential group, wiring and engineering environment.
| OFFICIAL TECHNICAL DATA | |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7135-6GB00-0BA1 |
| Product designation | AQ 2xI ST |
| Platform | SIMATIC ET 200SP |
| Official lifecycle | Active Product |
| Analog outputs | 2 |
| Output ranges | 0 to 20 mA; 4 to 20 mA; -20 to +20 mA |
| Resolution | 15 bit for 0 to 20 mA; 16 bit including sign for bipolar range |
| Minimum cycle time | 1 ms for all channels |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 to 28.8 V DC |
| Usable BaseUnits | Type A0 or A1 |
| Module diagnostics | Supported |
| Color code | CC00 |
| Dimensions | 15 x 73 x 58 mm |
| Approximate weight | 31 g |
Apply these values only to article 6ES7135-6GB00-0BA1 and its approved ET 200SP assembly.
The module converts configured process values into two current outputs and supports module diagnostics. Select the correct current range and verify the BaseUnit, potential group, load, cable routing and engineering configuration before commissioning.
Match 6ES7135-6GB00-0BA1 exactly and verify BaseUnit type A0 or A1, color code CC00, selected current range, potential group, wiring and engineering environment.
Match 6ES7135-6GB00-0BA1 exactly and verify BaseUnit type A0 or A1, color code CC00, selected current range, potential group, wiring and engineering environment.
It is identified on this page as SIMATIC ET 200SP AQ 2xI ST Analog Output Module.
Siemens identifies 6ES7135-6GB00-0BA1 as PM300 Active Product.
Verify the complete suffix, associated hardware, wiring, power, project configuration and applicable engineering documentation.
Condition, availability and the one-year warranty are Stockoems commercial terms, not manufacturer commitments.
Match 6ES7135-6GB00-0BA1 exactly and verify BaseUnit type A0 or A1, color code CC00, selected current range, potential group, wiring and engineering environment.
No automatic substitution should be assumed. Match the full part number and obtain responsible engineering approval.
