Product Overview

Siemens 6ES7512-1DK01-0AB0 is the SIMATIC ET 200SP CPU 1512SP-1 PN for compact distributed automation. Siemens specifies 200 KB program memory, 1 MB data memory, 48 ns bit performance and a PROFINET IRT interface with an integrated three-port switch. A SIMATIC Memory Card is required, and a suitable BusAdapter is needed for PROFINET ports 1 and 2. Current Siemens data identifies hardware functional status FS05 and firmware V2.9. The product is in the support and spare-repair lifecycle stage. Replacement planning should verify TIA Portal compatibility, firmware, memory card, BusAdapter, topology, project configuration and the complete order code.

Commercial Status

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

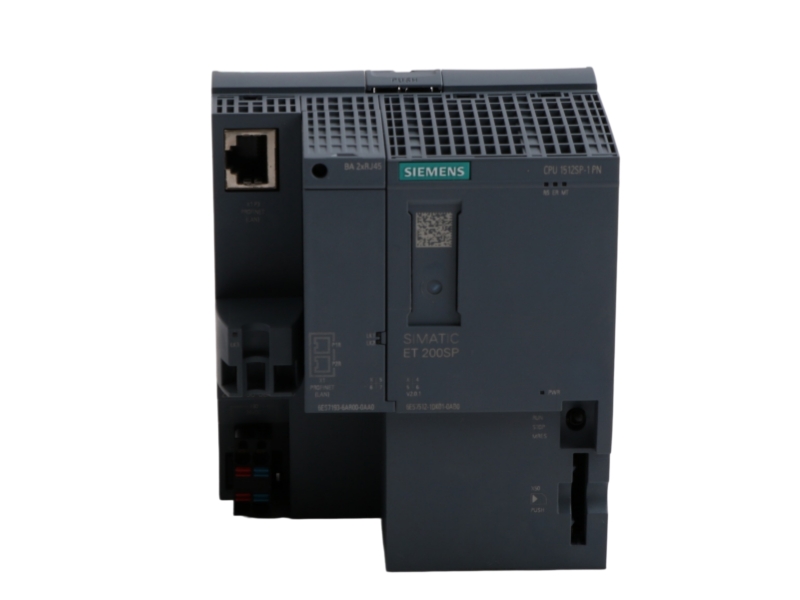

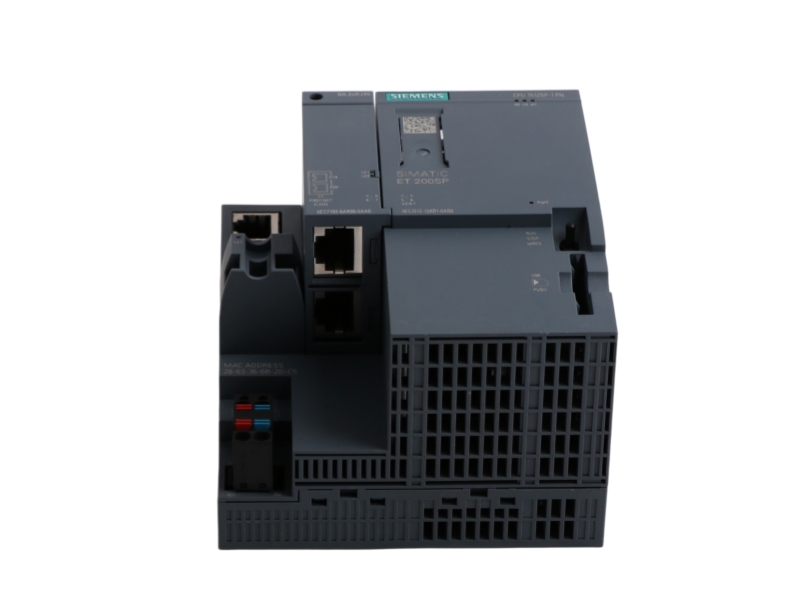

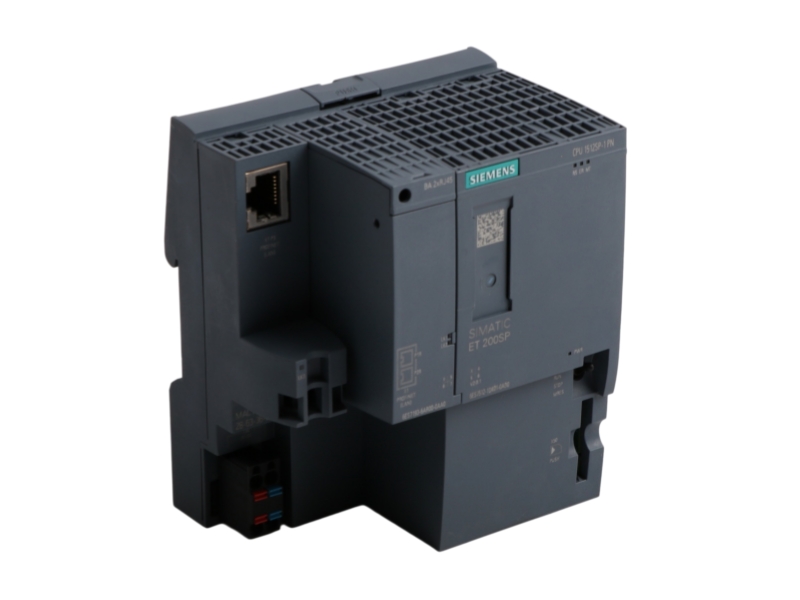

Product Photo Evidence













System Fit and Applications

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

• Complete part number 6ES7512-1DK01-0AB0 and FS05 label
• Firmware V2.9 and installed application project
• TIA Portal engineering version and archived project compatibility
• SIMATIC Memory Card type, contents and backup
• BusAdapter type for PROFINET ports 1 and 2
• PROFINET IRT names, addresses, topology and three-port connections
• 24 V DC supply range, current demand and grounding
• ET 200SP station position, modules, safety dependencies and label photographs

Lifecycle Note

Siemens identifies this exact CPU as PM410: Start Support phase / Spare & Repair - Remainder support period and states product cancellation since 2024-10-01. This is not described here as Discontinued. Any replacement decision must verify firmware, TIA Portal project, memory card, BusAdapter, PROFINET topology and station configuration.

Frequently Asked Questions
