Product Overview

Siemens 3RX9306-1AA00 is an IP20 AS-Interface combined power supply unit designed to feed an AS-i network while providing an auxiliary 24 V DC output. Siemens documentation identifies a 30 V DC AS-i output with data decoupling, 4 A output capacity and a switchable 115/230 V AC primary input. The unit supports industrial control networks where AS-i communication and auxiliary power must be coordinated from one supply assembly. Procurement review should match the complete order code, input-voltage selection, spring-loaded terminals, output requirements and the existing AS-i segment design before installation or replacement.

Commercial Status

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

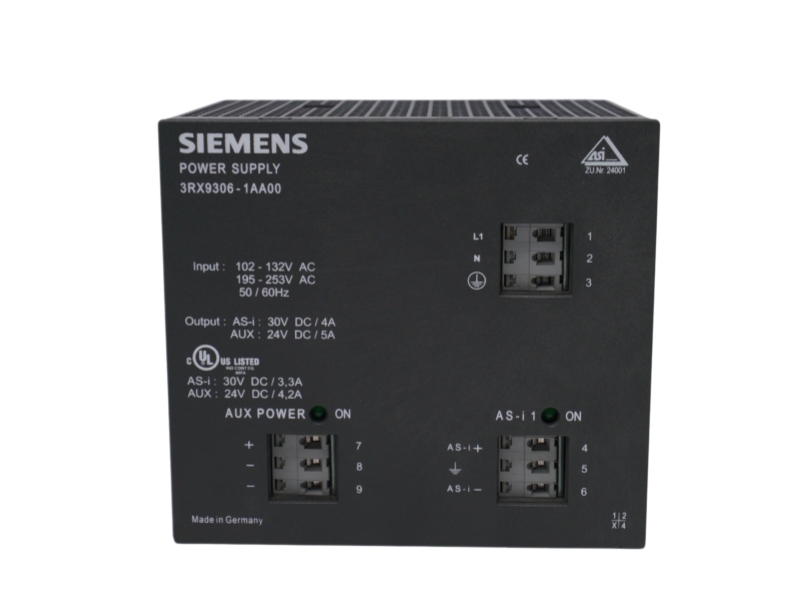

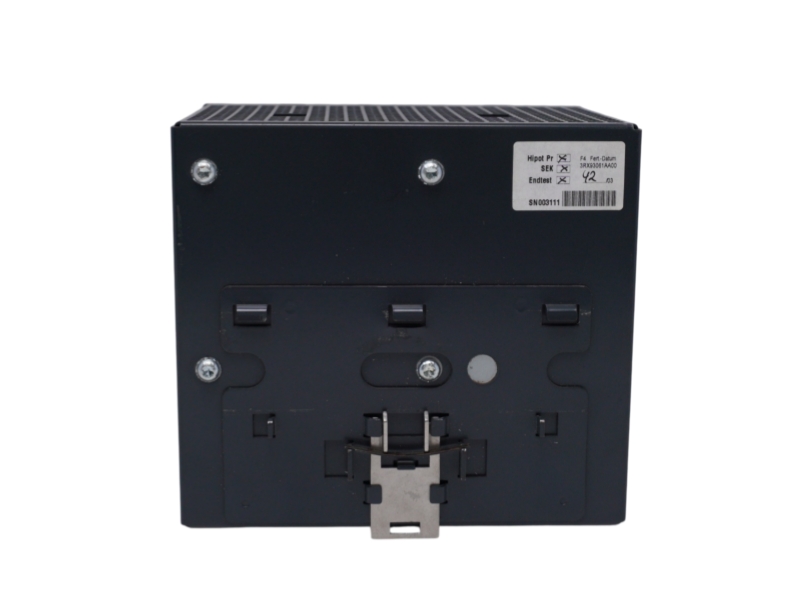

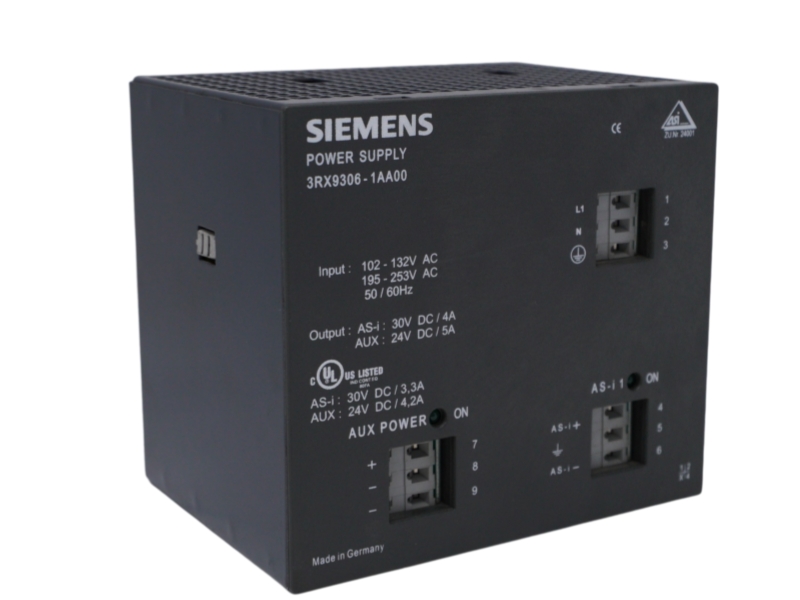

Product Photo Evidence













System Fit and Applications

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

• Complete part number 3RX9306-1AA00 and readable product label
• 115/230 V AC selector setting and site supply
• 30 V DC AS-i output demand and 4 A capacity
• 24 V DC auxiliary output requirements
• Spring-loaded terminal conductor size and wiring plan
• AS-i segment layout, connected loads and data decoupling arrangement
• Panel mounting space, protection requirements and circuit protection
• Product and packaging photographs

Lifecycle Note

The Siemens product data sheet reviewed confirms the exact order code and technical configuration but does not state a current lifecycle designation. No lifecycle status is asserted here. Procurement should therefore rely on exact model, label and electrical verification rather than an inferred status.
