Siemens 6ES5948-3UA13 SIMATIC S5 CPU 948

Siemens 6ES5948-3UA13 640 KB central processor for S5-155U automation systems

Inquiry now

Siemens 6ES5948-3UA13 SIMATIC S5 CPU 948

SIMATIC S5 CPU 948 central processing unit with 640 KB RAM for S5-155U systems.

Product Overview

Siemens 6ES5948-3UA13 is a SIMATIC S5 CPU 948 central processing unit specified with 640 KB of internal user RAM for S5-155U automation systems. Siemens system documentation also describes the CPU 948 architecture for single-processor and multiprocessor operation in S5-135U and S5-155U central units, with Memory Card 374 available as external program and data storage. The processor supports cyclic, time-controlled and interrupt-driven program execution. Procurement review should verify the complete order code, memory card, serial and programming interfaces, rack position, installed STEP 5 program, communication settings and readable product label before replacement.

Commercial Status

Commercial Item	Status
Product Condition	Original new
Availability	In stock
Official Lifecycle	PM500: Discontinued Product or end of PLM & Support
Warranty	With 1 year warranty
Shipping	Worldwide shipping options available

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

Field	Verified Information
Manufacturer	Siemens
Complete Part Number	6ES5948-3UA13
Product Type	SIMATIC S5 CPU 948 Central Processing Unit
Designated System	S5-155U
Internal User Memory	640 KB RAM
External Memory Medium	Memory Card 374 for program and user data
Operating Architecture	Single-processor and multiprocessor operation documented for S5-135U/155U central units
Program Execution	Cyclic, time-controlled, interrupt-driven and soft-stop processing
Front Interfaces	15-pin programming device interface; serial interfaces SI1 and SI2
Module Format	Double Europe format
Front Width	20 mm, equal to 1 1/3 standard mounting positions
Rack Requirement	One slot in the central-unit rack
Net Weight	0.465 kg
Packaging Dimensions	21.30 x 26.70 x 3.40 cm
Country of Origin	Germany

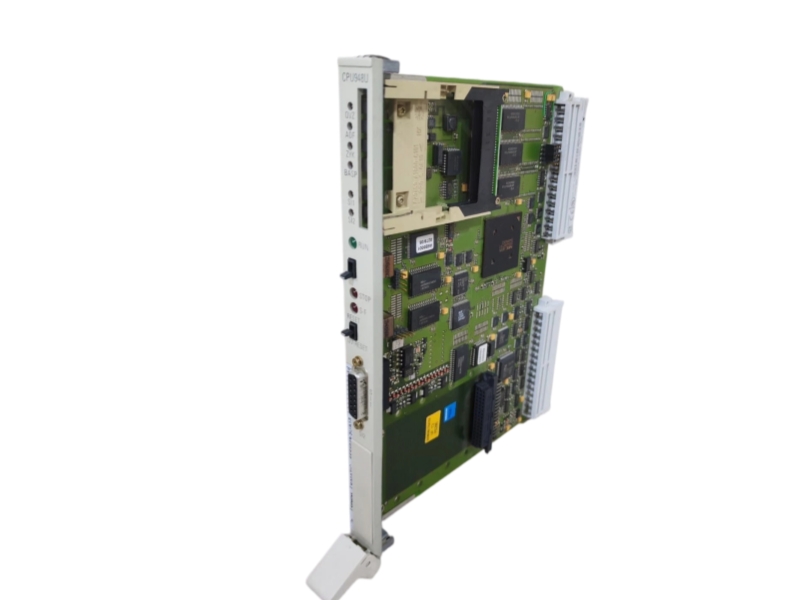

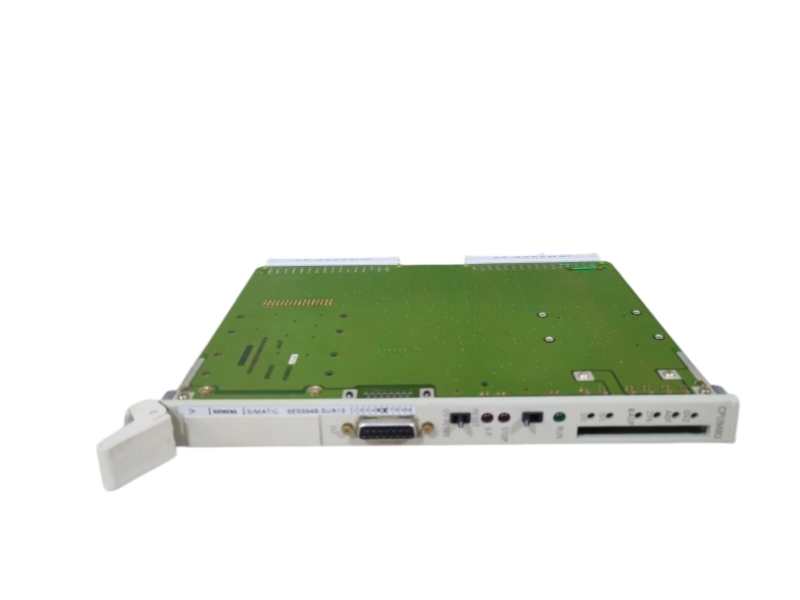

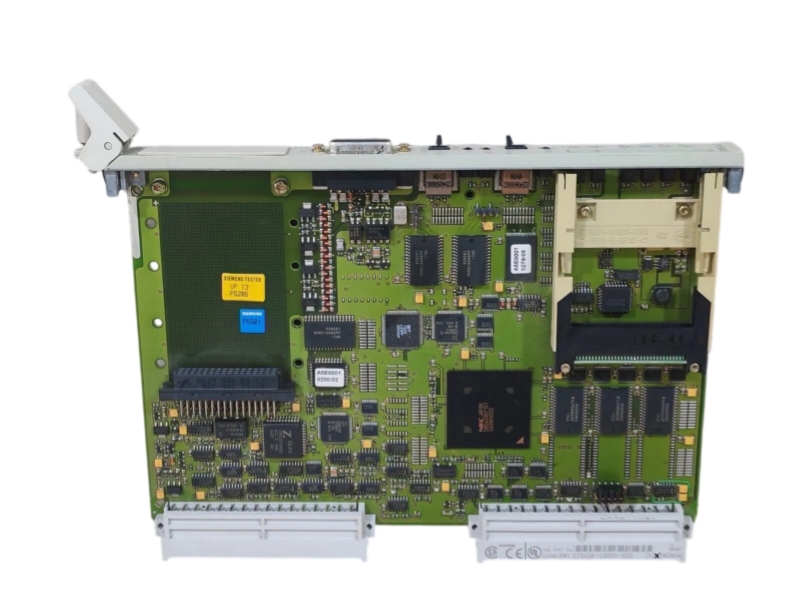

Product Photo Evidence

System Fit and Applications

Application Area	Procurement Guidance
Control platform	SIMATIC S5-155U central automation systems; Siemens documentation also covers CPU 948 use in S5-135U/155U central units.
System role	Executes the installed STEP 5 control program and coordinates configured S5 modules and interfaces.
Typical use	Maintenance of legacy machine and process-control installations based on the CPU 948 architecture.
Replacement purpose	Restoration of an existing CPU position using the exact order code and verified project backup.
Configuration importance	Memory card, rack assignment, program version, interface settings and connected modules must match the installed system.

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

Complete part number and 3UA13 suffix
CPU 948 hardware identification and rack position
Memory Card 374 type and installed contents
STEP 5 program and data backup
Programming and serial interface assignments
Single-processor or multiprocessor configuration
Power supply, connected modules and communication settings
Readable nameplate, connector and packaging photographs

Lifecycle Note

Siemens lists 6ES5948-3UA13 as PM500: Discontinued Product or end of PLM & Support, effective since 1 October 2022. The official page states that the product was deleted without replacement. This does not establish compatibility with another CPU; verify the exact hardware, memory card, STEP 5 program, rack arrangement and interface configuration before maintenance or replacement.

Frequently Asked Questions

What does 6ES5948-3UA13 identify?

It identifies a Siemens SIMATIC S5 CPU 948 central processing unit specified with 640 KB of internal user RAM.

Which automation system is specified for this CPU?

The Siemens product page identifies it as a central processing unit for S5-155U. The CPU 948 system documentation also describes operation in S5-135U/155U central units.

Which external memory medium is documented?

Siemens documentation identifies Memory Card 374 as the external medium for programs and user data.

Which processing modes are supported?

The CPU 948 documentation describes cyclic, time-controlled, interrupt-driven and soft-stop program processing.

What is the official lifecycle status?

Siemens lists the exact order code as PM500: Discontinued Product or end of PLM & Support, effective since 1 October 2022.

What should be reviewed before replacement?

Verify the complete suffix, hardware, Memory Card 374, STEP 5 backup, rack position, serial and programming interfaces, connected modules and multiprocessor arrangement where applicable.
