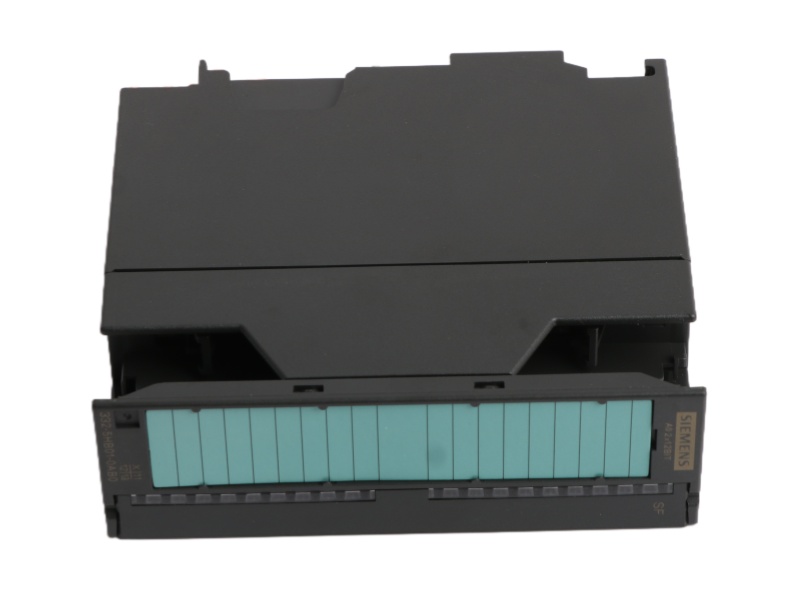

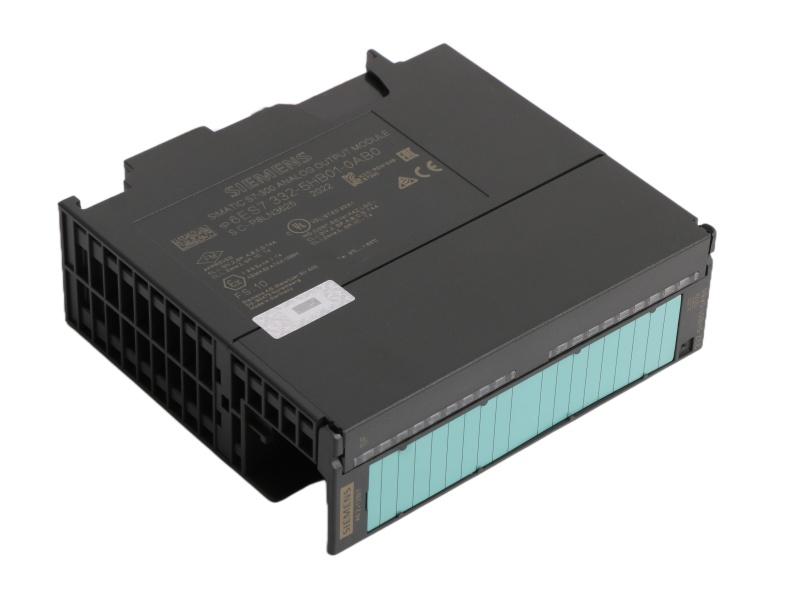

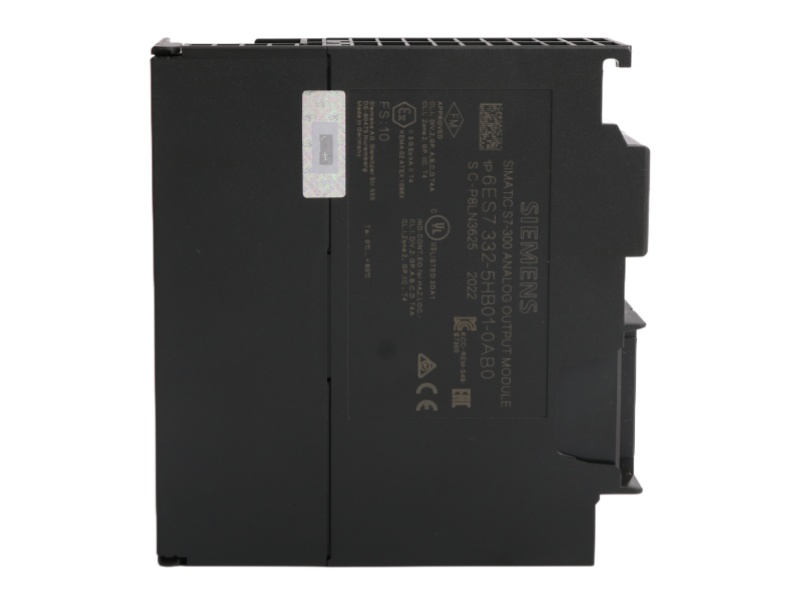

Siemens 6ES7332-5HB01-0AB0 Analog Output Module

Inquiry now

6ES7332-5HB01-0AB0 Product datasheet

Model number:	6ES7332-5HB01-0AB0	Module Type：	Analog Output Module
Manufacture:	Siemens	Condition：	Brand New
Range of Product:	Siemens	Lead time：	In Stock
Weight:	0.24 kg	HS CODE：	8537101190
Dimension:	10.5x12.5x4cm	MOQ:	1
Product Origin:	GERMANY	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

6ES7332-5HB01-0AB0 Functional Description

The Analog Output Module 6ES7332-5HB01-0AB0 Siemens is a high-performance analog output module designed for SIMATIC S7-300 PLC systems, featuring 2 isolated channels with configurable voltage (±10V) and current (0-20mA) outputs. This module delivers 12-bit resolution for voltage outputs and 11-bit resolution for current outputs, ensuring precise control of industrial processes. The 6ES7332-5HB01-0AB0 Siemens Simatic S7-300 supports hot swapping when used with active backplane bus, enabling module replacement without system shutdown. Its 20-pole front connector simplifies wiring while maintaining reliable connectivity in demanding industrial environments.

Engineered for precision and reliability, the Siemens 6ES7332-5HB01-0AB0 Analog Output Module provides 500V AC electrical isolation between channels and the backplane, protecting the PLC system from electrical disturbances. The module operates with a fast cycle time of 0.5ms per channel, making it suitable for dynamic control applications. With a load impedance rating of ≥1kΩ for voltage outputs and ≤500Ω for current outputs, the Siemens 6ES7332-5HB01-0AB0 can drive various field devices including control valves, servo drives, and analog indicators.

The PLC Expansion Module 6ES7332-5HB01-0AB0 Siemens demonstrates particular value in process automation applications requiring high-accuracy analog control. Its dual-channel configuration allows independent operation of two control loops, while the isolated outputs prevent ground loops in distributed systems. The module's compact design integrates seamlessly with S7-300 racks, and its diagnostic capabilities facilitate quick troubleshooting. Typical applications include chemical dosing systems, temperature control, and positioning systems where precise analog signal generation is critical.

As part of Siemens' comprehensive automation portfolio, the Siemens 6ES7332-5HB01-0AB0 PLC Module continues to deliver reliable performance in demanding industrial applications. Its combination of measurement precision, flexible output configuration, and robust construction makes it an ideal choice for both process and manufacturing automation. The module maintains full compatibility with STEP 7 programming environment, ensuring efficient integration into existing control systems and straightforward configuration for new applications.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

SIEMENS	6ES7 134-7TD50-0AB0	SIEMENS	6ES7 322-5HF00-0AB0	SIEMENS	6ES7 193-4CG30-0AA0
SIEMENS	6ES7 193-4CA20-0AA0	SIEMENS	6GK7 243-1EX01-0XE0	SIEMENS	6ES7 511-1AK02-0AB0
SIEMENS	6ES7 131-6BH01-0BA0	SIEMENS	6ES7 193-4CA40-0AA0	SIEMENS	6ES7 138-4DA04-0AB0
SIEMENS	7MH4910-0AA01	SIEMENS	6ES7 134-4FB01-0AB0	SIEMENS	6ES7 288-5CM01-0AA0
SIEMENS	6ES7 513-1AL02-0AB0	SIEMENS	6GK5 208-0BA10-2AA3	SIEMENS	6ES7 135-4GB01-0AB0
SIEMENS	6ES7 241-1CH32-0XB0	SIEMENS	6AV2 123-2GB03-0AX0	SIEMENS	6ES7 132-4HB12-0AA0
SIEMENS	6ES7 131-4BD01-0AA0	SIEMENS	6ES7 288-3AM06-0AA0	SIEMENS	7KM2111-1BA00-3AA0
SIEMENS	6AV6 648-0BC11-3AX0	SIEMENS	6ES7 214-1AG40-0XB0	SIEMENS	6ES7 131-1BL01-0XB0
SIEMENS	6ES7 131-4BD00-0AA0	SIEMENS	6GK5212-2BB00-2AA3	SIEMENS	6ES7 132-6BF01-0BA0
SIEMENS	6ES7 151-1CA00-1BL0	SIEMENS	6ES7 138-4CB11-0AB0	SIEMENS	6GK5216-0BA00-2AC2

Siemens Analog Output SM 332 Module Series

The Siemens SM 332 analog output modules provide high-precision signal generation for SIMATIC S7-300 PLC systems, offering 2 to 8 channels of configurable voltage (±10V) and current (0-20mA) outputs with resolutions up to 16 bits. These modules feature electrical isolation (500V AC) between channels and backplane, preventing ground loops and ensuring stable operation in noisy industrial environments. The compact design supports hot swapping when used with active backplane buses, enabling maintenance without system downtime. With cycle times as fast as 0.5ms per channel, they deliver responsive control for critical processes like valve positioning, motor speed regulation, and temperature control. The series includes variants with different channel counts and resolutions (11-16 bit) to suit various application requirements. All modules integrate seamlessly with STEP 7 software for easy configuration and diagnostics, while the 20-pole front connectors simplify wiring. Typical applications span process industries, test benches, and manufacturing systems where precise analog signal generation is essential. The robust metal housing ensures reliable performance in wide temperature ranges (-25°C to +60°C), making them suitable for harsh plant conditions. These modules maintain compatibility with all S7-300 CPUs and support flexible system expansion through the SIMATIC modular architecture.
