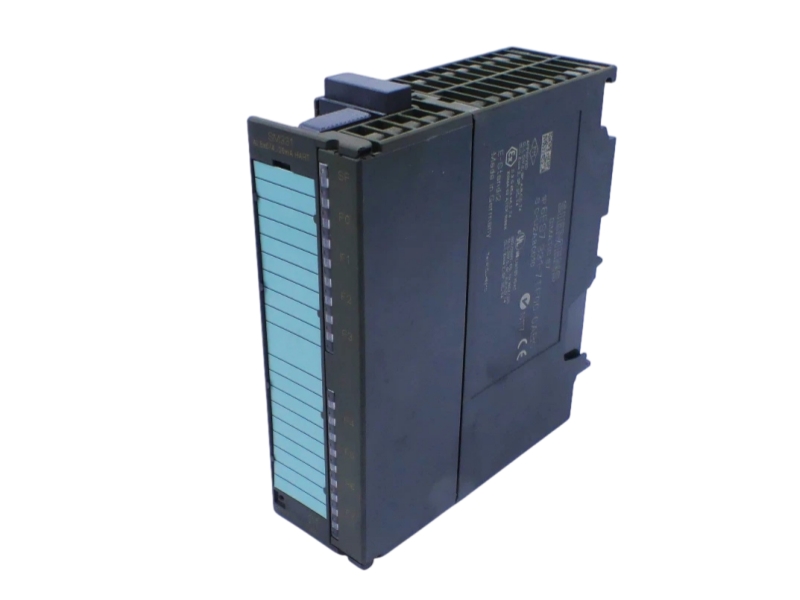

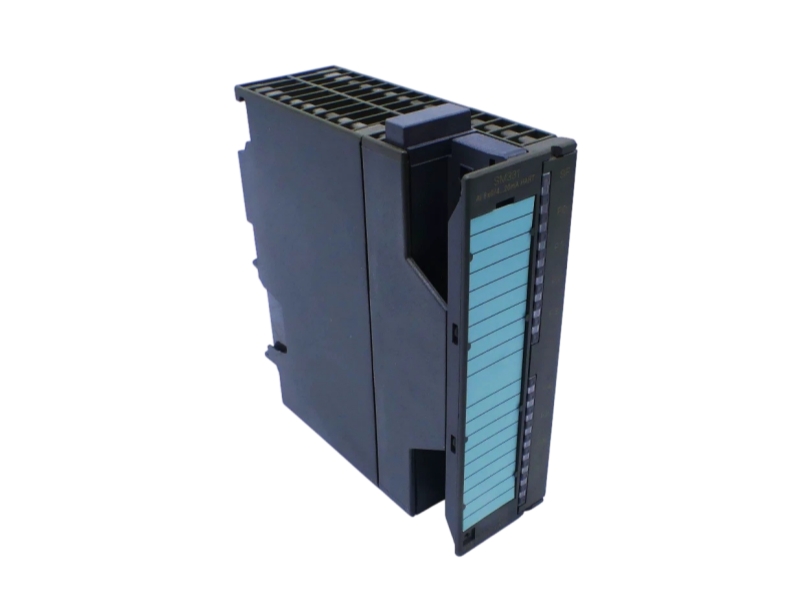

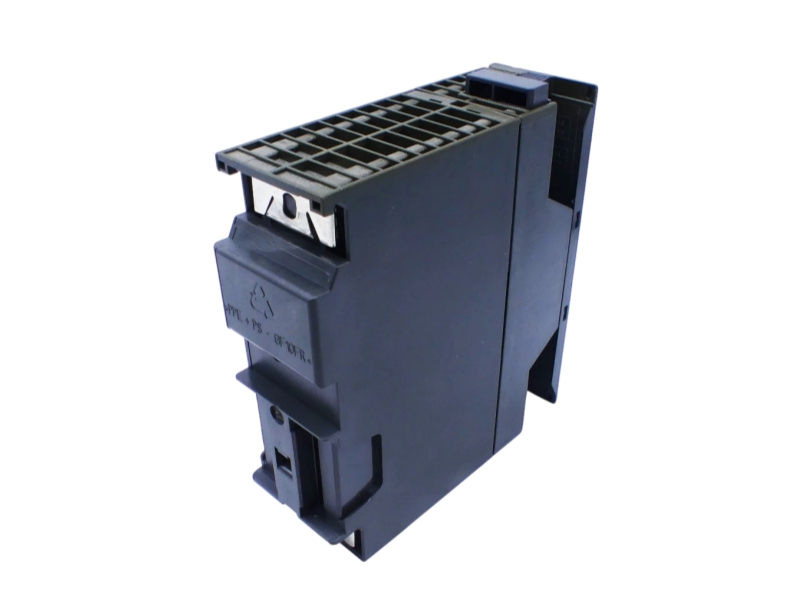

Siemens 6ES7331-7TF00-0AB0 · ET 200M · 8 current inputs · HART
Siemens 6ES7331-7TF00-0AB0 is an SM 331 analog input module for ET 200M stations using an IM 153-2 interface module. The exact module provides eight 0/4 to 20 mA current inputs with HART communication, resolution up to 16 bits, wire-break diagnostics and support for redundant operation. Siemens comparison documentation lists a 20-pin front connector, 40 mm module width, cable lengths up to 800 m and 500 V DC isolation testing. Procurement checks should cover the full suffix, installed IM version, redundant architecture, channel wiring, front connector, HART device parameters, STEP 7 hardware configuration and migration planning.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | eol |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6ES7331-7TF00-0AB0 |
| Product Type | SIMATIC S7-300 SM 331 HART analog input module |
| System Fit | ET 200M with IM 153-2 |
| Number of Channels | 8 analog inputs |
| Input Signal | 0/4 to 20 mA |
| Communication | HART |
| Maximum Resolution | 16 bit |
| Diagnostics | Wire-break diagnostics |
| Redundant Operation | Supported |
| Front Connector | 20-pin |
| Maximum Cable Length | 800 m shielded or unshielded |
| Isolation Test | 500 V DC |
| Module Width | 40 mm |
| Country of Origin | Germany |
| System Fit | SIMATIC ET 200M stations using an IM 153-2 interface module |
| Typical Applications | HART transmitter acquisition, process instrumentation, current-loop monitoring and redundant I/O |
| Maintenance Use | Replacement of an installed SM 331 HART module after connector, wiring and project review |
| Configuration Focus | IM 153-2 version, channel mode, HART variables, 20-pin connector, STEP 7 parameters and redundancy design |
This exact order code should not be treated as universally interchangeable with a similar series model. Before purchase or replacement, verify:
Do not substitute the later 6ES7331-7TF01-0AB0 revision or an ET 200SP HA module without a documented migration review. Confirm the project hardware catalog entry, front connector wiring, channel allocation and redundancy requirements.
Siemens migration documentation marks the exact 6ES7331-7TF00-0AB0 entry as eol. The manufacturer wording is retained as eol and is not rewritten as Discontinued or Obsolete.
It identifies the original SM 331 HART analog input module with eight 0/4 to 20 mA channels for ET 200M.
The official comparison documentation associates this module with ET 200M using IM 153-2.
Yes. Siemens comparison data lists redundant operation for this exact module.
Siemens migration documentation marks the exact entry as eol; this wording is retained without converting it to another status.
Check the full suffix, IM version, 20-pin front connector, channel wiring, HART configuration, STEP 7 project and redundancy design.
Yes. Request photographs of the complete module, Siemens label, connector area, side markings, packaging and visible condition.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Stockoems supports industrial spare-parts purchasing with a practical review process covering order-code identity, installed-system context, visible condition and export handling. For 6ES7331-7TF00-0AB0, buyers can provide label photos, cabinet information and project requirements so our team can organize a clearer compatibility and condition review before dispatch.
A useful procurement check goes beyond matching a short model name. Our team reviews the complete suffix, visible hardware features, connector arrangement and the buyer’s installation notes. The following workplace photographs show three different activities used during this process: reading the unit label, comparing cabinet wiring with technical documentation, and jointly checking module information before commercial confirmation.
| Review Area | Procurement Value |
|---|---|
| Complete Model Identity | Full order codes and suffixes are compared to reduce the risk of receiving a similar but incompatible configuration. |
| Installed-System Context | Hardware, firmware, software, operator-panel and field-connection details can be included in the pre-order review. |
| Visible Condition Evidence | Photos can document the enclosure, label, ports, accessories, packaging and other visible features of an available unit. |
| Clear Order Coordination | Quantity, destination, inspection requests, warranty scope and delivery options are consolidated before shipment. |
| Protective Export Handling | Packing is selected with sensitive industrial electronics and the planned international route in mind. |
Provide the exact part number, quantity, destination and installed-system details.
Labels, connectors, physical condition and requested technical checkpoints are examined.
Availability, inspection scope, warranty and shipping choices are organized for approval.
The unit is prepared for the chosen route with supporting shipment documentation.
For the strongest compatibility review, send clear photographs of the installed nameplate, adjacent connectors and cabinet position together with any available STEP 7 project or maintenance record details.
