Siemens 6ES7151-8FB01-0AB0 SIMATIC ET 200S Fail-Safe PN/DP CPU
IM151-8F distributed fail-safe controller with integrated PROFINET connectivity.
Product Overview
Siemens 6ES7151-8FB01-0AB0 is an IM151-8F PN/DP CPU for the SIMATIC ET 200S distributed I/O system. The official data sheet specifies 256 KB integrated work memory, firmware V3.2 and an integrated PROFINET interface with three RJ45 ports operating as an IO Controller or I-device. The fail-safe CPU requires a SIMATIC Micro Memory Card and uses a 24 V DC supply. Procurement checks should cover the exact order number, hardware and firmware status, MMC contents, safety program, STEP 7 or TIA Portal engineering version, PROFINET configuration, optional DP master module and installed ET 200S station layout.
Commercial Status
| Product Condition |
Original new |
| Availability |
In stock |
| Warranty |
With 1 year warranty |
| Shipping |
Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
| Manufacturer |
Siemens |
| Complete Part Number |
6ES7151-8FB01-0AB0 |
| Product Type |
Fail-safe PN/DP CPU |
| Product Family |
SIMATIC ET 200S |
| Module Designation |
IM151-8F PN/DP CPU |
| Firmware Version |
V3.2 |
| Work Memory |
256 KB integrated |
| PROFINET Interface |
Integrated, three RJ45 ports |
| PROFINET Role |
IO Controller / I-device |
| Rated Supply Voltage |
24 V DC |
| Permissible Supply Range |
20.4 V DC to 28.8 V DC |
| Micro Memory Card |
Required; up to 8 MB |
| Battery |
Without battery |
| Power Loss |
5.5 W typical |
| Mains Buffering |
5 ms |
| Engineering Software |
STEP 7 V5.5 with Distributed Safety V5.4 SP4, or STEP 7 TIA Portal V11 and later |
| Country of Origin |
Germany |

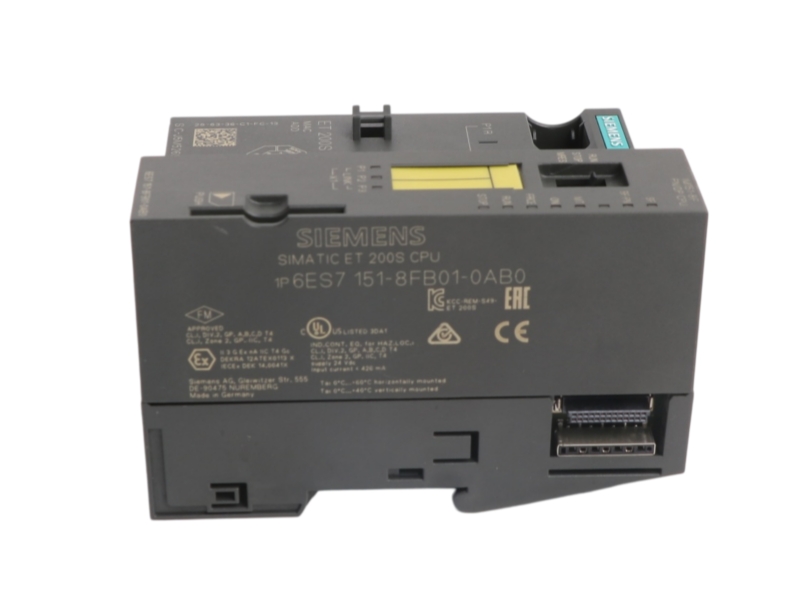

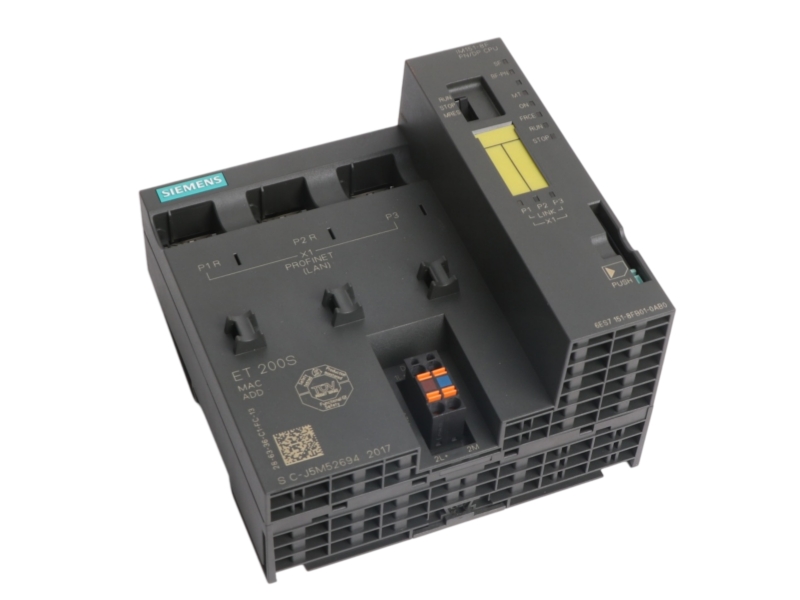

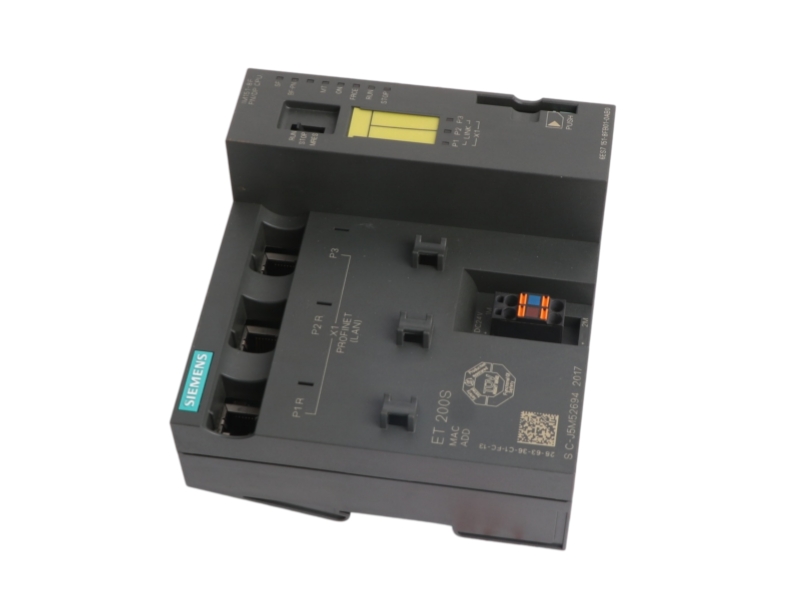

Product Photo Evidence
System Fit and Applications
| Control System |
SIMATIC ET 200S distributed I/O |
| System Role |
Distributed fail-safe CPU and PROFINET IO Controller or I-device |
| Typical Applications |
Machine safety, distributed control and networked ET 200S stations |
| Maintenance Use |
Replacement of the exact IM151-8F hardware while preserving safety validation and project data |
Compatibility and Procurement Checks
- Confirm the full 6ES7151-8FB01-0AB0 article number and hardware status.
- Match firmware V3.2 and approved engineering software.
- Review the fail-safe program, signatures, passwords and safety acceptance records.
- Verify the Micro Memory Card type, capacity and backed-up contents.
- Check all three RJ45 connections, PROFINET names, addresses and topology.
- Confirm 24 V DC supply and optional PROFIBUS DP master-module requirements.
- Compare the installed ET 200S module layout and request label photographs.
Lifecycle Note
The exact Siemens data sheet describes 6ES7151-8FB01-0AB0 as a “spare part” but does not provide a PLM lifecycle classification in the reviewed source. This page therefore preserves that official product note without converting it to Discontinued or another lifecycle term. Hardware, firmware, safety project and Micro Memory Card compatibility remain mandatory replacement checks.
Frequently Asked Questions
What does 6ES7151-8FB01-0AB0 identify?
It identifies the SIMATIC ET 200S IM151-8F PN/DP fail-safe CPU.
How much work memory is integrated?
The official data sheet specifies 256 KB of integrated work memory for program and data.
Which network interfaces are provided?
An integrated PROFINET interface with three RJ45 ports supports IO Controller and I-device operation.
Is a Micro Memory Card required?
Yes. A SIMATIC Micro Memory Card is required, with up to 8 MB documented.
What is the official lifecycle status?
The reviewed exact-model data sheet calls it a spare part but does not state a PLM lifecycle classification.
What safety checks are required before replacement?
Review hardware and firmware status, safety project signatures, MMC contents, engineering software and PROFINET configuration.
