Sixteen isolated high-level inputs for voltage and current signal acquisition.

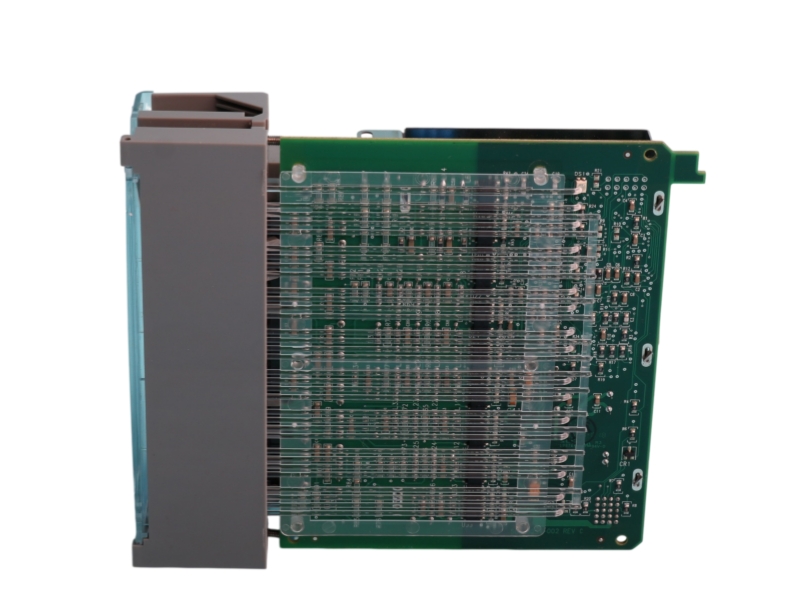

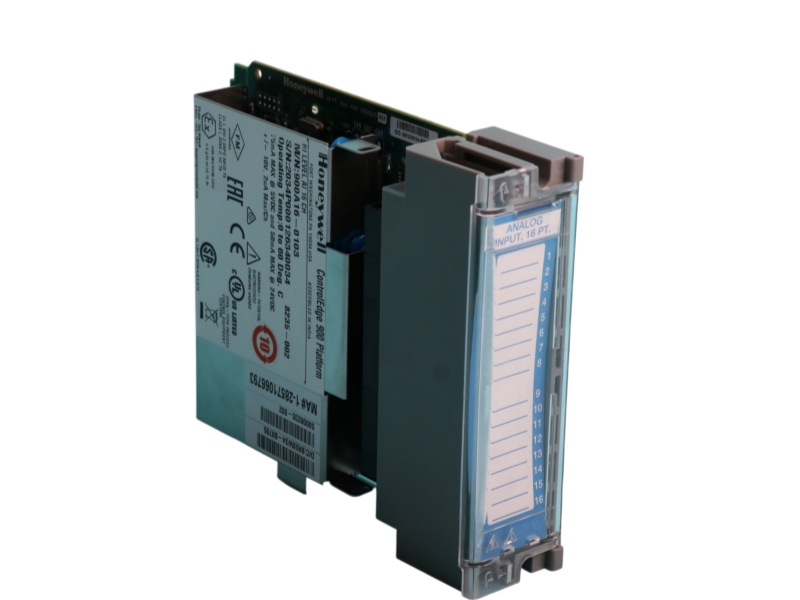

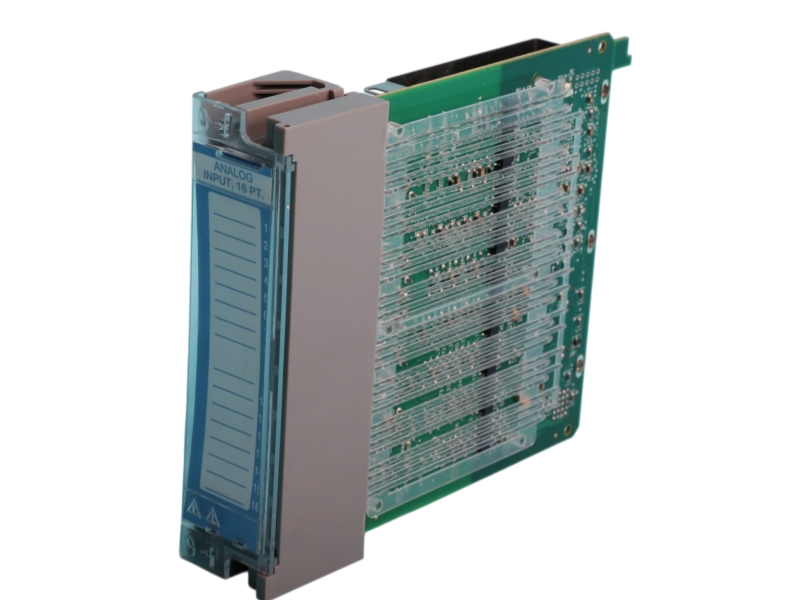

Honeywell 900A16-0103 is a ControlEdge 900 high-level analog input module designed to accept sixteen isolated voltage or current signals. Honeywell documentation specifies point-to-point and backplane isolation, synchronized analog-to-digital conversion, a 100 ms update rate, and diagnostics covering factory calibration, the 24 VDC supply, and configuration. The module supports process measurement acquisition in ControlEdge PLC, Unit Operations Controller, and Experion LX applications. Before replacement, engineers should compare the full suffix, input range configuration, field wiring, terminal assembly, channel setup, calibration records, and installed controller release.
| Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Honeywell |
| Complete Part Number | 900A16-0103 |
| Product Type | High-level analog input module |
| Platform | ControlEdge 900 |
| Inputs per Module | 16 isolated inputs |
| Input Types | Voltage and current |
| Input Impedance | Greater than 1 megohm for voltage; 250 ohms for current |
| Galvanic Isolation | 400 VDC point-to-point; 1 kVDC to logic |
| A/D Resolution | ±15 bits |
| Update Rate | 100 ms |
| Diagnostics | Factory calibration, 24 VDC supply and configuration monitoring |
| Dimensions | 137 mm high × 35.6 mm wide |
| Net Weight | 397 g |
| Area | Application Guidance |
|---|---|
| Control Platform | ControlEdge 900 systems, including documented ControlEdge PLC and Unit Operations Controller configurations. |
| System Role | Acquires up to sixteen isolated high-level voltage or current process signals for controller processing. |
| Typical Applications | Process measurement, equipment monitoring and retrofit support where the installed project uses this exact module. |
| Replacement Guidance | Match channel configuration, signal ranges, field wiring, terminal assembly and controller release before installation. |
It identifies a Honeywell ControlEdge 900 high-level analog input module with sixteen isolated inputs.
Honeywell specifies user-configurable voltage or current inputs, with sixteen isolated channels per module.
The official specification lists a 100 ms analog-to-digital update rate per module.
The module monitors factory calibration, the 24 VDC supply and configuration, with status indication for module or channel diagnostics.
The reviewed Honeywell technical documents do not publish a lifecycle classification for this exact part number.
Check the exact suffix, channel ranges, field wiring, terminal assembly, rack position, controller release and project configuration.
