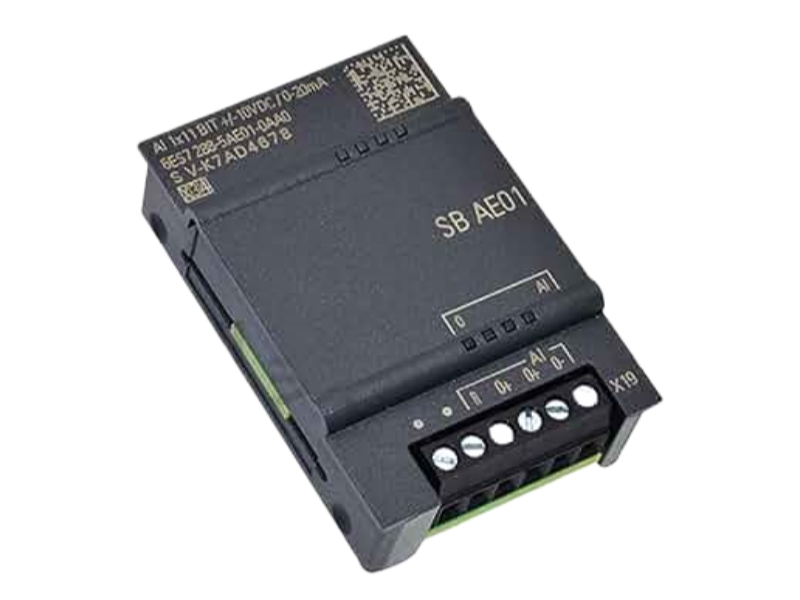

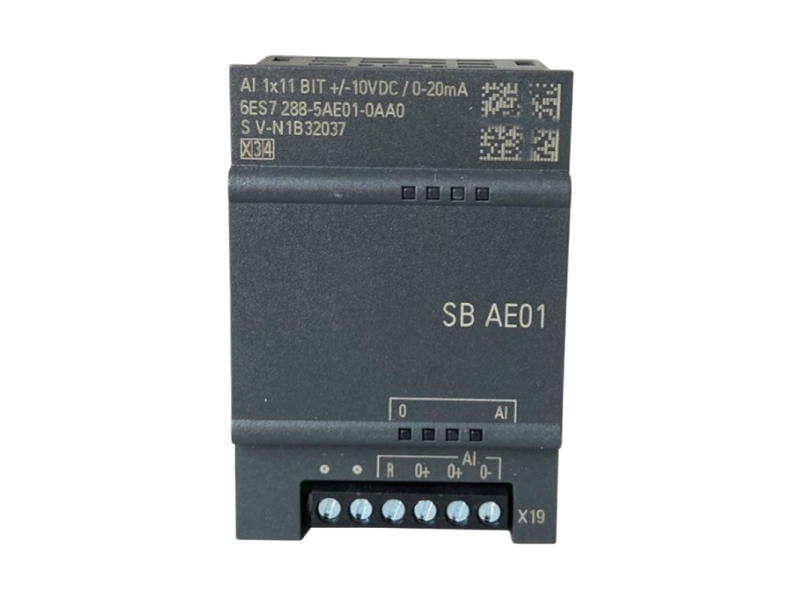

The Siemens 6ES7288-5AE01-0AA0 is an SB AE01 analog signal board for the SIMATIC S7-200 SMART platform. It adds one analog input channel for voltage or current signals where a compact expansion point is needed without selecting a separate multi-channel module. The board supports ±10 V, ±5 V, ±2.5 V and 0–20 mA input ranges. It is relevant to machine builders, maintenance teams and buyers replacing a matching board or adding one verified measurement channel. Before ordering, confirm the complete part number, CPU support, intended signal range, wiring arrangement and the label details of the installed equipment.
Match the field signal to one of the supported voltage ranges or the 0–20 mA current mode.
The signal board converts the connected analog input for use by the supported S7-200 SMART CPU.
Check scaling, channel status and the expected engineering value during commissioning.
| Field | Confirmed information |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7288-5AE01-0AA0 |
| Product type | SB AE01 analog input signal board |
| Series | SIMATIC S7-200 SMART |
| Channel configuration | 1 analog input |
| Input ranges | ±10 V, ±5 V, ±2.5 V or 0–20 mA |
| Resolution | 11 bit plus sign bit for voltage; 11 bit for current mode |
| Product condition | NEW |
| Country of origin | GERMANY |
| Hardware / firmware revision | Contact us to confirm. |
| Compatibility | Contact us to confirm CPU and project compatibility. |
| Availability | Contact us to confirm. |
| Warranty | With 1 year warranty under written quotation terms |
| Shipping | Worldwide shipping options available; route and cost confirmed with quotation. |
SB AE01 is intended for a verified S7-200 SMART CPU configuration that requires one additional analog measurement point. The signal board format helps preserve cabinet space while keeping the measurement close to the controller.
| Complete suffix: 6ES7288-5AE01-0AA0 | CPU model and supported signal-board interface |
| Required input range and field-signal type | Wiring, shielding and cabinet installation details |
| Hardware and firmware details where applicable | Original product label and application photos |
Is 6ES7288-5AE01-0AA0 currently available?
Availability changes. Send the required quantity and destination so the sales team can confirm current supply.
Which analog signals can this board accept?
The official technical data lists ±10 V, ±5 V, ±2.5 V and 0–20 mA input ranges.
How should compatibility be confirmed?
Provide the complete CPU part number, project requirement, intended signal type and photographs of the existing label.
Can product and label photos be provided?
Yes. Request current product and label photos as part of the quotation review.
What warranty and shipping support is available?
The product is offered with a one-year warranty under written terms, and worldwide shipping options can be quoted for the destination.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Our workflow is designed to help maintenance and purchasing teams document the exact Siemens signal board, quotation basis and delivery requirements before an order is placed.
Check 6ES7288-5AE01-0AA0, the complete suffix, CPU model, signal-board requirement and intended application.
Confirm NEW condition, available label details and current product photos in the quotation process.
Review the voltage or current range, connection plan, CPU compatibility and revision information supplied by the buyer.
State the confirmed condition, availability, written warranty terms, payment basis and shipping quotation without promising unverified lead time.
Apply suitable protection for the board, terminals and packaging surfaces according to the agreed transport route.
Coordinate the carrier, shipment tracking and customary export or customs documentation for the destination.
Provide one-year written warranty terms, issue documentation guidance and the return-authorization process when required.
| Service checkpoint | Information to provide |
|---|---|
| Model and suffix verification | Complete part number and existing label photo |
| Compatibility review | CPU part number, signal type and project requirement |
| Commercial review | Quantity, destination country and requested delivery method |
| After-sales response | Order reference, issue description and supporting photos |
Send 6ES7288-5AE01-0AA0, the required quantity, destination country and available product label photos for review.
