SIEMENS · SIMATIC S7-1200 SB 1223

6ES7223-0BD30-0XB0 SIMATIC S7-1200 SB 1223 Digital I/O Signal Board

Compact SIMATIC S7-1200 signal board adding two 24 V DC inputs and two outputs for control expansions.

Product Summary

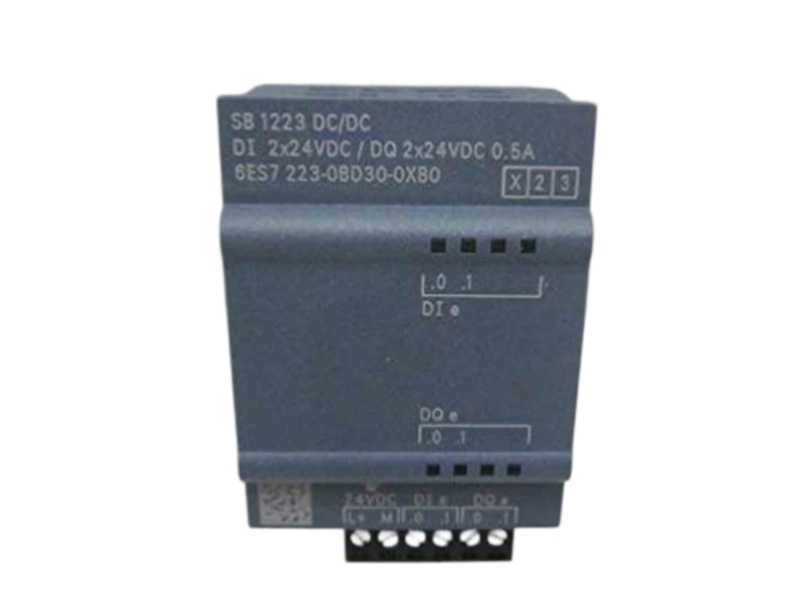

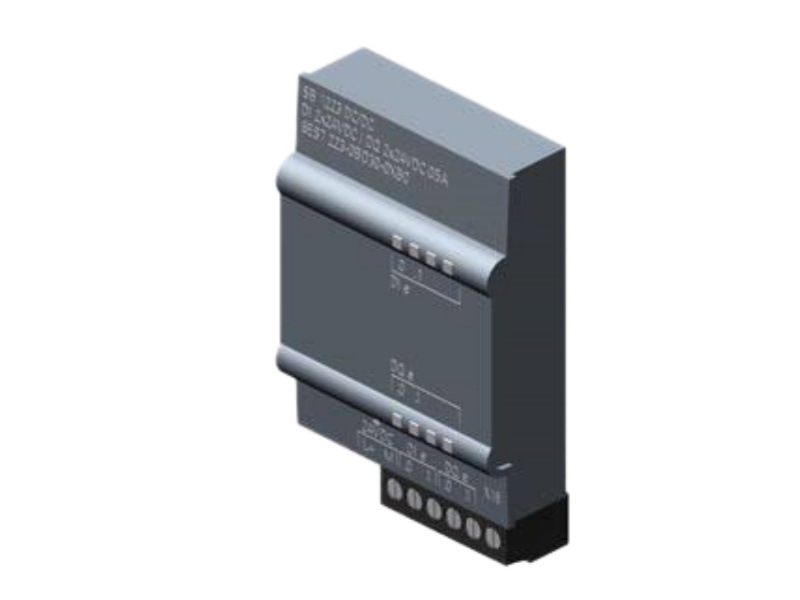

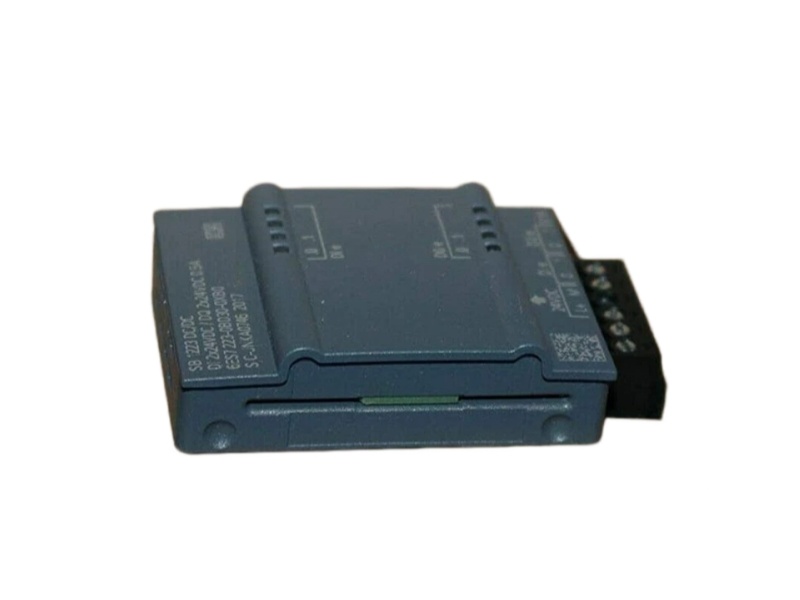

The Siemens 6ES7223-0BD30-0XB0 is a SIMATIC S7-1200 SB 1223 digital input/output signal board. It adds two 24 V DC digital inputs and two 24 V DC digital outputs in a compact expansion format for an S7-1200 controller. The board is suited to small I/O additions, maintenance replacements and machine modifications where only a limited number of extra signals is required. Before ordering, compare the complete suffix, CPU compatibility, signal-board slot, input and output voltage, wiring arrangement, engineering configuration and the original module label.

Key Product Information

Technical Data Summary

Compact I/O Expansion for S7-1200

This SB 1223 installs as a compact signal-board expansion for compatible SIMATIC S7-1200 controllers. Its two digital inputs receive 24 V DC field states, while two digital outputs provide 24 V DC switching channels. It is intended for applications that need a small I/O increase without selecting a larger external signal module.

Features and Procurement Notes

• Adds two 24 V DC digital input points.
• Adds two 24 V DC digital output points.
• Compact signal-board construction for compatible S7-1200 CPUs.
• Supports targeted replacement or limited machine I/O expansion.
• Requires confirmation of CPU, slot, wiring and project configuration.

Applications

• Adding a small number of sensor and actuator signals to a compatible S7-1200 CPU.
• Replacing an installed SB 1223 after exact part-number and wiring checks.
• Supporting compact machine-control modifications with limited extra digital I/O.
• Separating a minor I/O expansion from larger external module changes.

Compatibility and Revision Notice

Confirm the full 6ES7223-0BD30-0XB0 suffix, S7-1200 CPU type, signal-board slot, 24 V DC input and output requirements, wiring assignment, hardware revision, project configuration, enclosure clearances and original label photos. Check total system wiring length and target sensor or actuator characteristics where relevant.

Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.

Frequently Asked Questions

Is 6ES7223-0BD30-0XB0 currently available?

Availability is checked against the required quantity and destination. Send the complete model for a current quotation.

What condition is offered?

This page specifies NEW condition. Request current product and label photos and confirm the offer in writing.

How can I confirm S7-1200 compatibility?

Compare the CPU model, signal-board slot, complete suffix, voltage, wiring and engineering project requirements.

Does the complete suffix matter?

Yes. Use the full 6ES7223-0BD30-0XB0 identifier because related SB 1223 variants can have different electrical functions.

Can label photos be supplied?

Ask for photos of the offered board and packaging label to verify visible identity before ordering.

What warranty is provided?

6ES7223-0BD30-0XB0 is supplied with 1 year warranty; written quotation terms define the applicable scope.
