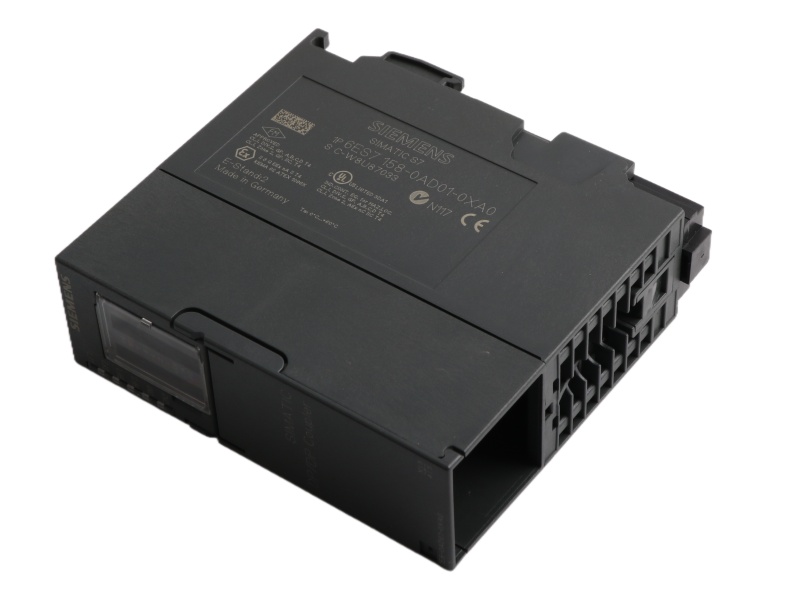

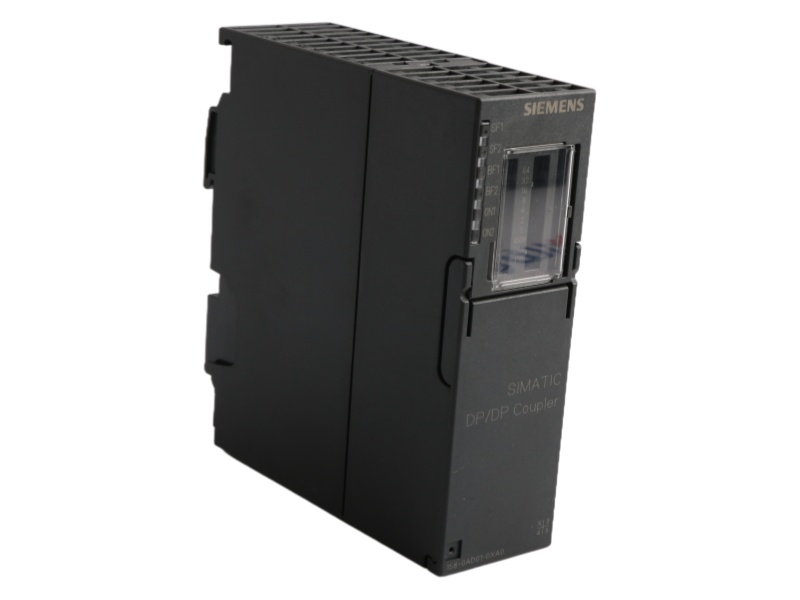

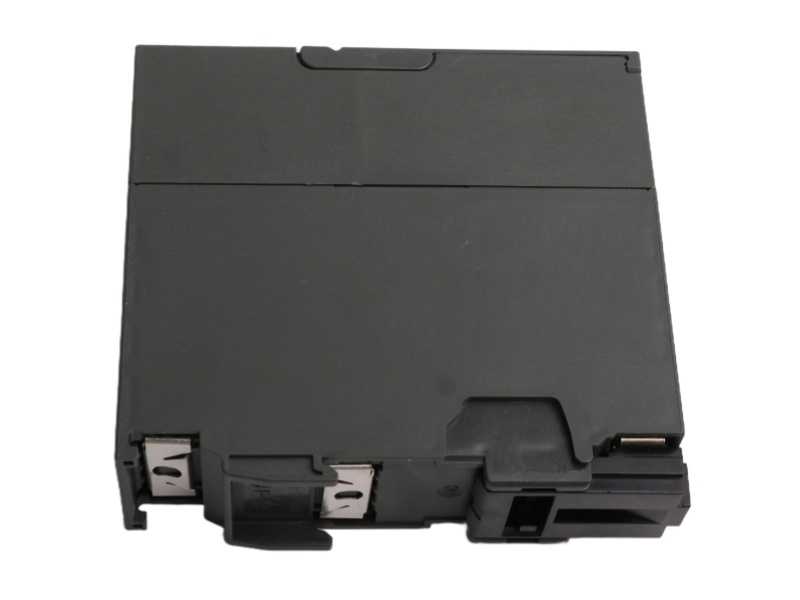

The OUPLER COUPLING MODULE Siemens 6ES7158-0AD01-0XA0 is a PROFIBUS DP/DP coupler designed to interconnect two separate PROFIBUS DP networks while maintaining complete electrical isolation between them. This robust coupling module features redundant power supply inputs to ensure continuous operation even if one power source fails, making it ideal for critical industrial automation applications. The Siemens DP/DP Coupler Coupling Module 6ES7158-0AD01-0XA0 enables secure data exchange between different PROFIBUS segments without requiring a direct electrical connection, preventing ground loops and potential interference between networks.

Engineered for system reliability, the 6ES7158-0AD01-0XA0 DP/DP coupler Coupling module Siemens supports baud rates up to 12 Mbps and can handle maximum data volumes of 244 bytes in both directions. Its galvanic isolation protects connected equipment from voltage spikes and differences in ground potentials between networks. The module's compact design allows for space-efficient installation in control cabinets, while LED indicators provide clear status monitoring of both PROFIBUS segments and power supplies. The Siemens 6ES7158-0AD01-0XA0 is particularly valuable in applications requiring interconnection between different departments or safety zones while maintaining network separation.

The Siemens 6ES7158-0AD01-0XA0 PDF demonstrates excellent performance in complex automation architectures where multiple PROFIBUS DP networks need to communicate. Typical applications include connecting production cells to central control systems, linking separate safety areas, or integrating equipment from different vendors onto a unified automation platform. The module's redundant power design ensures maximum system availability, while its transparent data transfer maintains the original PROFIBUS telegram structure without protocol conversion. The DP/DP Coupler 6ES7158-0AD01-0XA0 Siemens operates reliably in industrial environments with its wide temperature range and robust construction.

As part of Siemens' comprehensive network solutions, the Siemens 6ES7158-0AD01-0XA0 DP/DP Coupler provides a reliable and flexible solution for PROFIBUS DP network interconnection. Its ability to maintain complete electrical isolation while enabling data exchange makes it particularly valuable for plants with distributed architecture or equipment from multiple suppliers. The coupler's diagnostic capabilities simplify troubleshooting and maintenance, while its plug-and-play design ensures quick installation and commissioning. For system integrators working with multiple PROFIBUS DP networks, the Siemens 6ES7158-0AD01-0XA0 offers an efficient way to achieve controlled interconnection without compromising network integrity or performance.
