SIMATIC DP interface for ET 200M and DP/PA Link applications with redundancy, timestamping and extended-temperature capability.

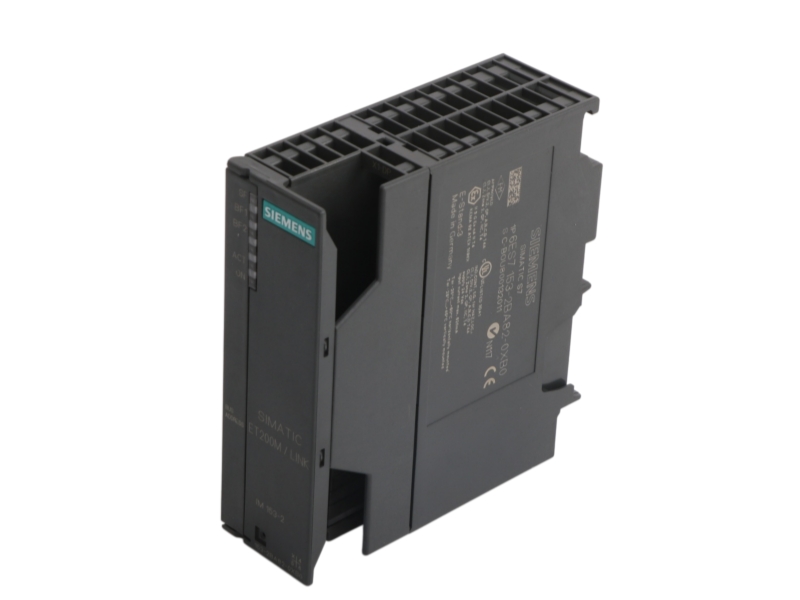

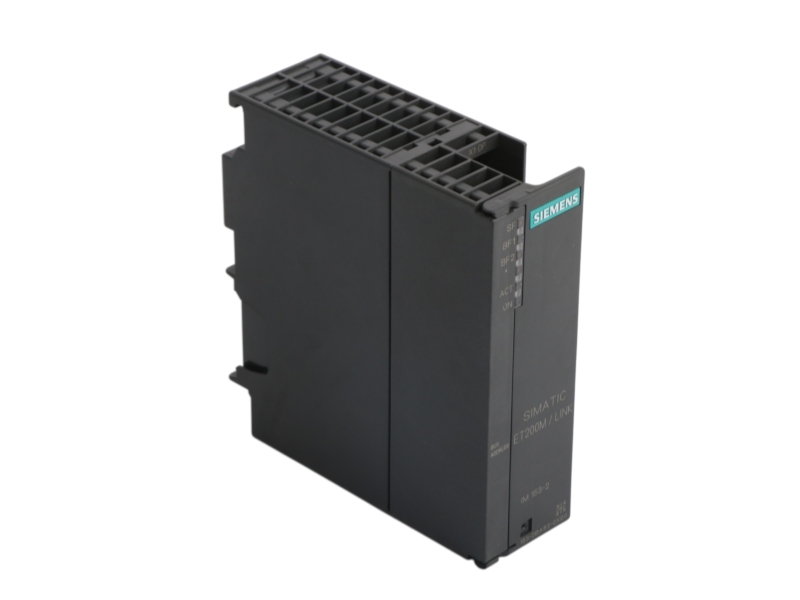

Siemens 6ES7153-2BA82-0XB0 is an IM 153-2 High Feature interface module for SIMATIC DP, ET 200M and DP/PA Link configurations. The module connects distributed S7-300 I/O to a higher-level PROFIBUS DP master and supports up to 12 S7-300 modules per station. Its High Feature design supports redundant architectures, timestamping, isochronous operation, 64-channel modules and expanded HART auxiliary-variable data.
This exact extended-temperature version is intended for established process automation and high-availability installations where the installed order number, bus module, engineering project and redundancy arrangement must be matched before replacement.
| Field | Verified information |
|---|---|
| Manufacturer | Siemens |

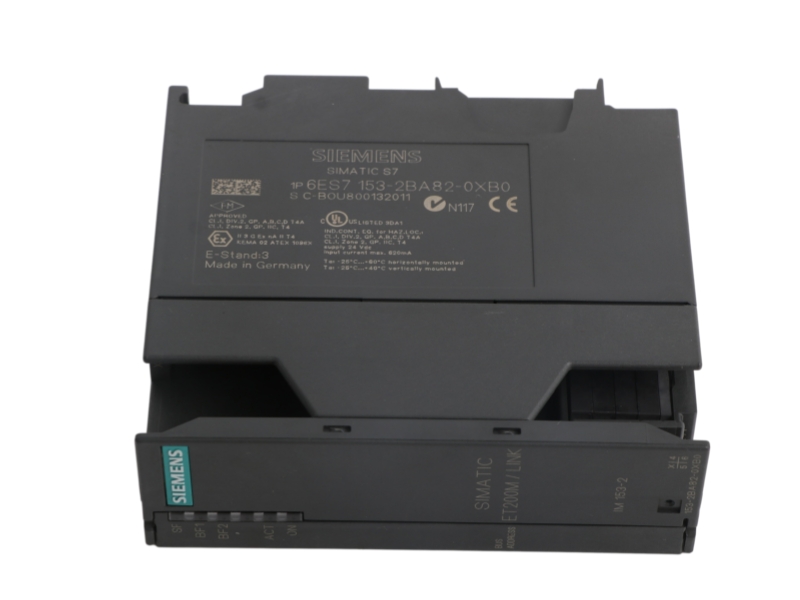

| Complete part number | 6ES7153-2BA82-0XB0 |
| Product lifecycle | PM410: Product cancellation |
| PLM effective date | Product cancellation since 2016-10-04 |
| Official designation | Repair part |
| Country of origin | Germany |
| Technical characteristic | Specification |
|---|---|
| System / module | SIMATIC DP / ET 200M IM 153-2 High Feature |
| Environmental version | Extended temperature range |
| Higher-level bus | PROFIBUS DP |
| Supported station size | Maximum 12 S7-300 modules |
| Redundancy capability | Supported |
| Timestamping | Supported; up to 32 signals per slot |
| Isochronous operation | Supported |
| 64-channel modules | Supported |
| HART support | Expanded quantity structure for HART auxiliary variables |
| PROFIBUS transmission rates | 9.6 kbit/s to 12 Mbit/s |
| Rated supply voltage | 24 V DC; permissible range 20.4 to 28.8 V DC |
| Maximum I/O frame length | 244 bytes |
| Dimensions (W × H × D) | 40 × 125 × 117 mm |
| Siemens Mall net weight | 0.635 lb (approximately 0.288 kg) |
Interfaces distributed S7-300 signal modules with PROFIBUS DP controllers in established SIMATIC automation systems.
Supports high-availability architectures, including suitable S7-400H and process automation configurations.
Can serve in DP/PA Link arrangements that connect a PROFIBUS DP master system with PROFIBUS PA field instrumentation.
Siemens lists 6ES7153-2BA82-0XB0 as PM410: Product cancellation, effective 2016-10-04, and identifies it as a repair part. Procurement should therefore focus on exact-order-code verification, physical condition, firmware traceability and installed-base compatibility. Siemens replacement documentation identifies 6ES7153-2BA70-0XB0 for specific successor applications; the exact engineering and bus-module conditions must be checked before substitution.
It is an extended-temperature SIMATIC DP IM 153-2 High Feature interface module for ET 200M and DP/PA Link installations.
The official Siemens description specifies a maximum of 12 S7-300 modules per station.
Yes. The exact system architecture, compatible bus module and project configuration must be verified before installation.
The higher-level fieldbus is PROFIBUS DP, with supported data rates from 9.6 kbit/s to 12 Mbit/s.
Siemens lists the exact product as PM410: Product cancellation, effective 2016-10-04.
Confirm the full part number, nameplate, firmware, ET 200M or DP/PA Link topology, bus module, STEP 7 project and redundancy requirements.
Send the installed module nameplate, firmware and system configuration for stock verification, compatibility review, warranty terms and worldwide delivery support.
Practical support for identification, sourcing, inspection, packing and global delivery of legacy and current automation components.
Our team reviews the complete part number, revision, application and requested delivery conditions before processing.
Warehouse staff match labels, housing condition, connector state and supplied accessories against the order record.
Components are prepared with protective packing suitable for international industrial-spares transportation.
Complete MLFB, suffix, revision and nameplate details are checked to reduce model-selection errors.
We review the stated controller, rack, bus, firmware and application information supplied with the inquiry.
Available label, housing, connector and packaging photographs can be provided for order confirmation.
Shipment options, export packing and tracking support are coordinated for worldwide industrial customers.
Warranty scope and return conditions are confirmed with the commercial offer for the exact supplied unit.
For cancelled products, sourcing is combined with successor and installed-base compatibility checks.
