Four-channel current analog output module with diagnostics for SIMATIC ET 200pro distributed I/O.

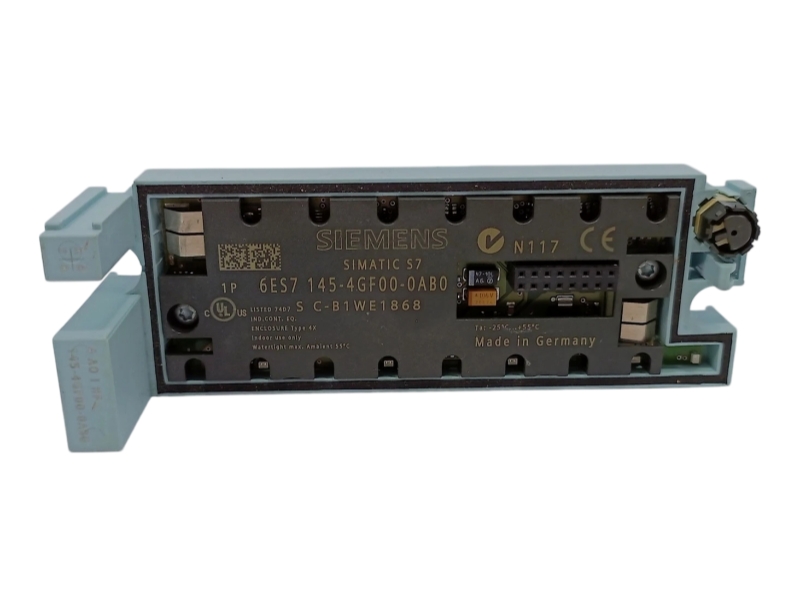

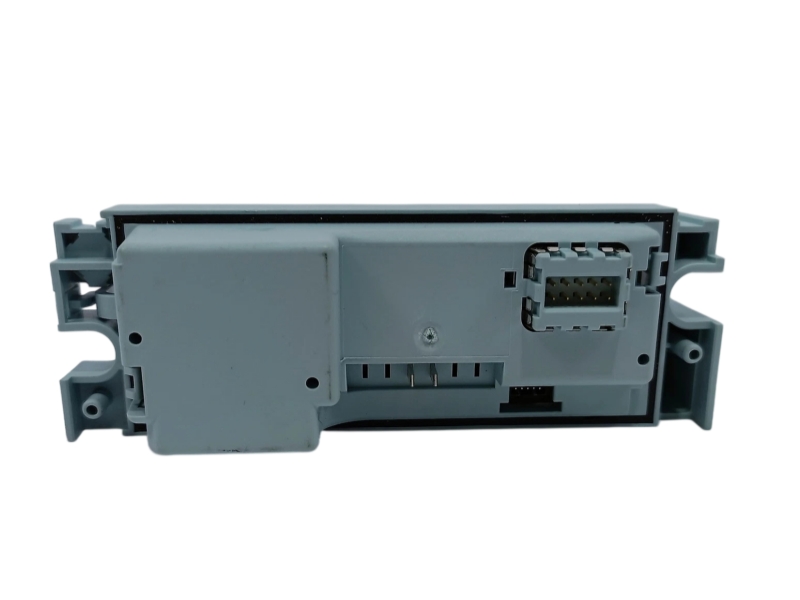

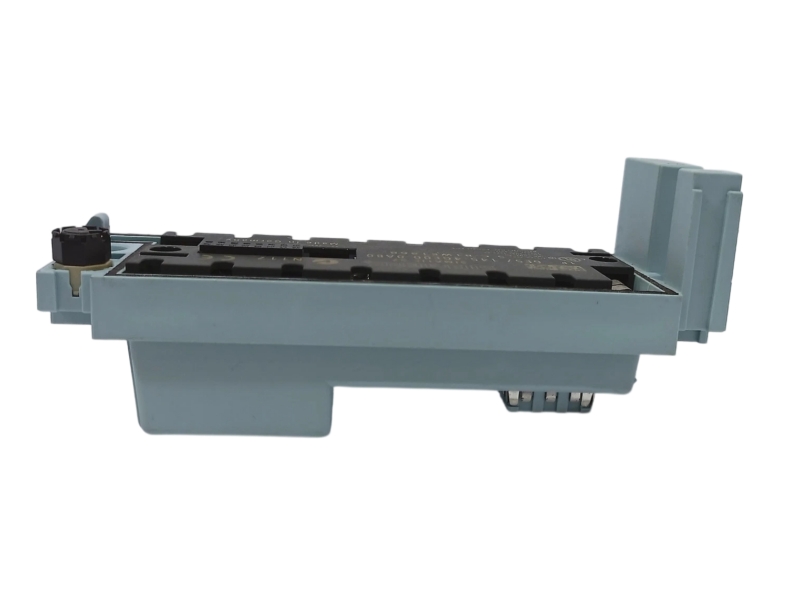

Siemens 6ES7145-4GF00-0AB0 is a SIMATIC ET 200pro High Feature analog output electronic module with four current output channels. It supports ±20 mA, 0 to 20 mA and 4 to 20 mA output ranges, channel diagnostics and wire-break detection for distributed actuator and control-loop applications.
The bus module is included with this exact order number, while the required connection module from the 6ES7194-4..00-0AA0 family must be ordered separately. Replacement planning must verify the installed ET 200pro station, output range, load wiring, connection module and STEP 7 hardware configuration.
| Field | Verified information |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7145-4GF00-0AB0 |
| Product lifecycle | PM300: Active Product |
| PLM effective date | No phase-out date stated |
| Official designation | ET 200pro 4 AO current High Feature electronic module |
| Country of origin | Germany |
| Technical characteristic | Specification |
|---|---|
| System / module | SIMATIC ET 200pro analog output electronic module |
| Output channels | 4 analog current outputs |
| Output ranges | ±20 mA; 0 to 20 mA; 4 to 20 mA |
| Maximum resolution | 15 bit |
| Resolution for 0 to 20 mA | 14 bit |
| Conversion time | 0.7 ms |
| Diagnostics | Channel diagnostics supported |
| Wire-break detection | Supported |
| Rated supply voltage | 24 V DC |
| Bus module | Included |
| Connection module | 6ES7194-4..00-0AA0; ordered separately |
| Dimensions (W × H × D) | 45 × 130 × 35 mm |
| Siemens Mall net weight | 0.183 kg |
| Country of origin | Germany |
Provides four current command signals for valves, positioners and compatible industrial actuators.
Supports standardized 0/4–20 mA and bipolar ±20 mA outputs in ET 200pro stations.
Extends rugged distributed I/O close to the process while retaining channel-level diagnostics.
Siemens lists 6ES7145-4GF00-0AB0 as PM300: Active Product. No phase-out date is stated in the exact current Siemens product listing. Compatibility review should cover the separately ordered connection module, bus module arrangement, output range, field load, firmware and ET 200pro engineering configuration.
It is a four-channel High Feature current analog output electronic module for SIMATIC ET 200pro.
The module supports ±20 mA, 0 to 20 mA and 4 to 20 mA output ranges.
Yes. Siemens states that the bus module is included with this exact product.
Yes. A suitable 6ES7194-4..00-0AA0 connection module must be ordered separately.
Siemens lists the exact order number as PM300: Active Product.
Confirm the part number, output ranges, connection module, wiring, load, firmware and ET 200pro project configuration.
