SIMATIC ET 200eco PN · Rugged Analog Output
Four configurable voltage or current outputs with M12 field connections and IP67 protection for decentralized PROFINET automation.

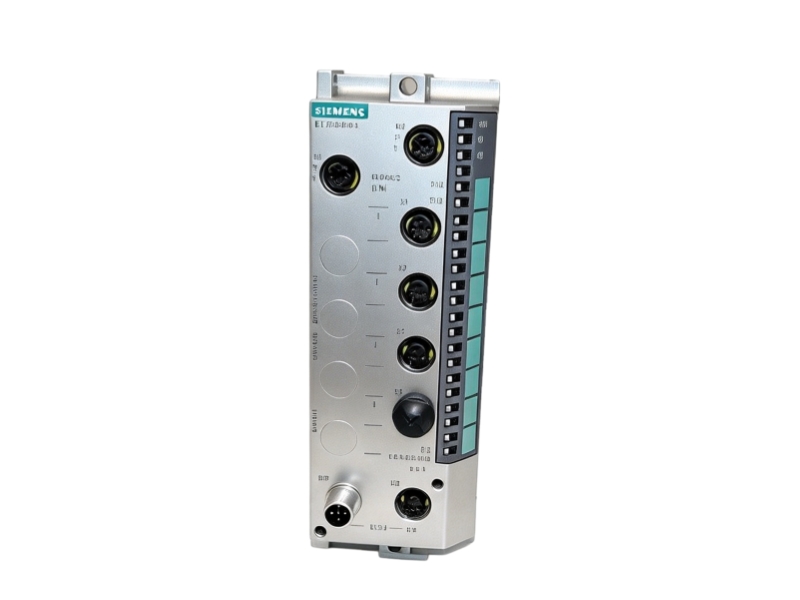

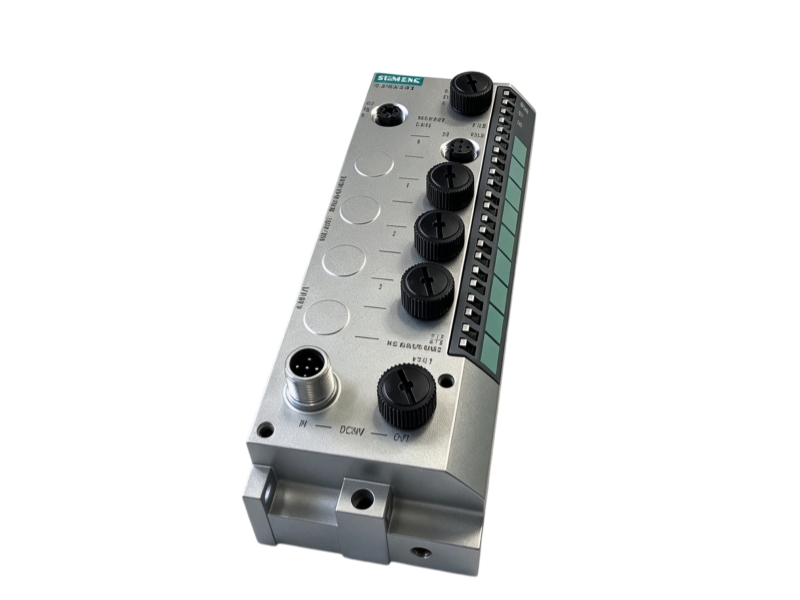

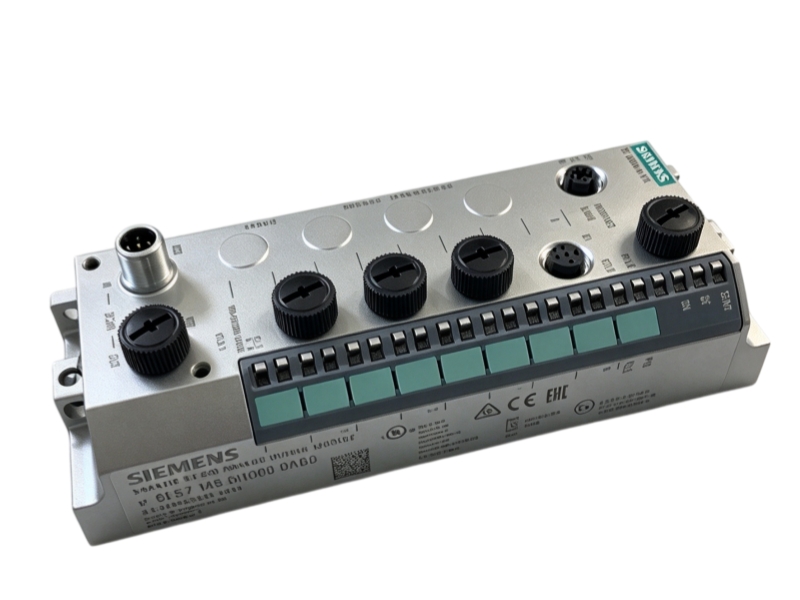

The Siemens 6ES7145-6HD00-0AB0 is a SIMATIC ET 200eco PN analog output device with four voltage or current channels and four M12 connections. Its IP67 enclosure supports machine-level installation without a conventional control cabinet. Each channel can be parameterized for voltage or current operation, while integrated diagnostics support field maintenance and commissioning.
| Commercial Check | Verified Detail |
|---|---|
| Official Siemens lifecycle | Phase Out Started; PLM effective date 2024-10-01 |
| Ordering identity | Complete MLFB: 6ES7145-6HD00-0AB0 |
| Procurement basis | Confirm the full MLFB, required output ranges, M12 actuator wiring, PROFINET configuration and replacement timing before ordering. |
| Parameter | Officially Verified Value |
|---|---|
| Article number | 6ES7145-6HD00-0AB0 |
| Product family | SIMATIC ET 200eco PN analog output device |
| Analog outputs | 4 voltage/current outputs |
| Connections | 4 × M12 |
| Output ranges | 1 to 5 V; 0 to 10 V; ±10 V; 0 to 20 mA; 4 to 20 mA; ±20 mA |
| Rated supply voltage | 24 V DC; reverse-polarity protected |
| Current consumption | Typically 280 mA |
| Voltage output protection | Short-circuit protected; maximum short-circuit current 30 mA |
| Current output no-load voltage | Maximum 20 V |
| Diagnostics | Missing supply, sensor-supply short circuit and wire-break diagnostics are parameterizable |
| Degree of protection | IP65/IP67 |
| Dimensions | 60 × 175 × 49 mm (W × H × D) |
| Weight | Approximately 930 g |
Controls valves, positioners and other analog actuators close to the machine.
Supports channel-specific voltage or current ranges for flexible field integration.
Places rugged analog outputs directly in distributed ET 200eco PN architectures.
Official Siemens lifecycle information lists 6ES7145-6HD00-0AB0 as Phase Out Started with PLM effective date 2024-10-01.
The device provides four configurable voltage or current analog outputs.
Supported ranges are 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, 4 to 20 mA and ±20 mA.
Yes. The IP65/IP67 enclosure and M12 connections support machine-level installation.
The device uses a 24 V DC rated supply with reverse-polarity protection.
Official Siemens data specifies 60 × 175 × 49 mm and approximately 930 g.
Send the full MLFB, installed hardware, required quantity and destination. We will check availability, configuration fit, inspection scope, warranty terms and global delivery options.
Submit your inquiry for Siemens 6ES7145-6HD00-0AB0.
