SIMATIC ET 200iSP · Intrinsically Safe Digital Output
Four 23.1 V DC intrinsically safe outputs with an additional H-shutdown input for hazardous-area ET 200iSP stations.

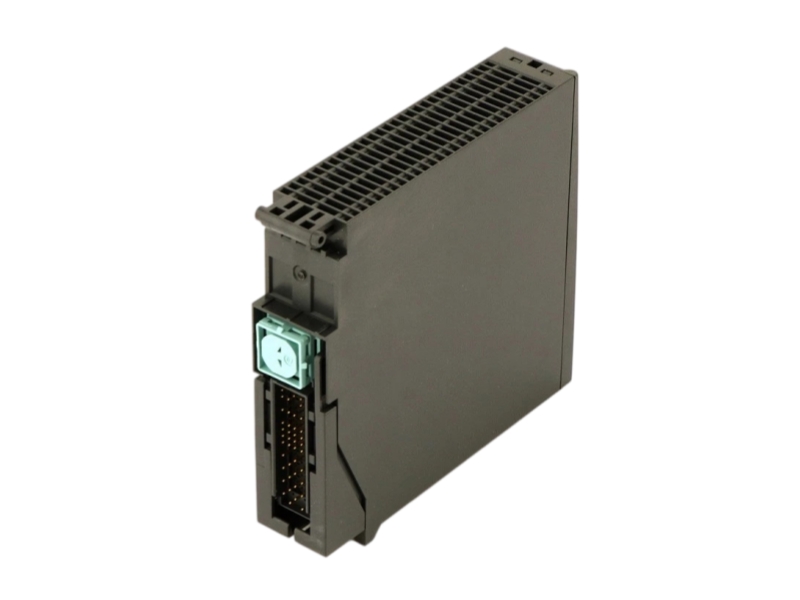

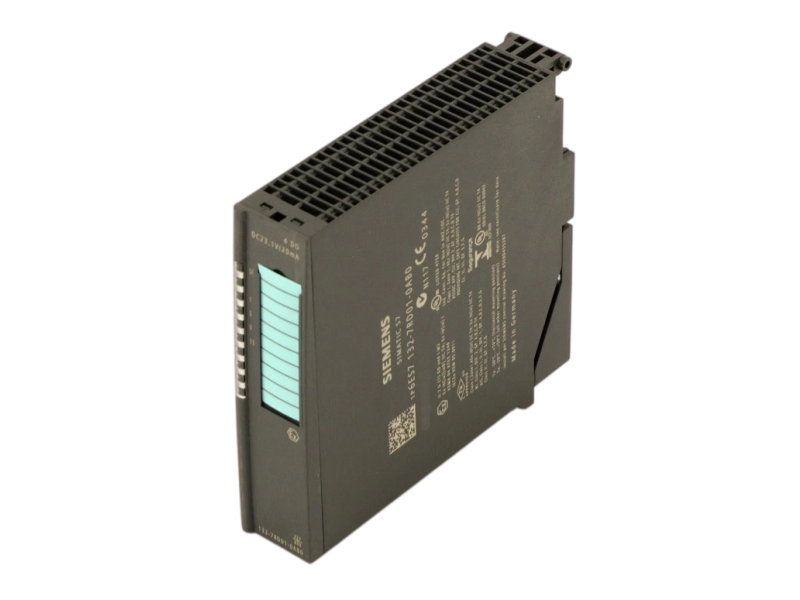

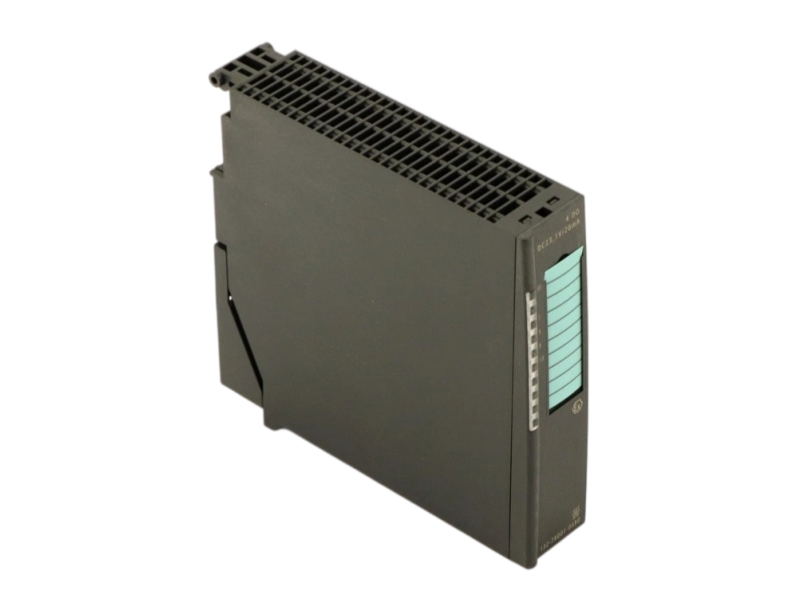

The Siemens 6ES7132-7RD01-0AB0 is a SIMATIC ET 200iSP electronic module with four intrinsically safe digital outputs rated 23.1 V DC at 20 mA. It includes an additional intrinsically safe input for H-shutdown and is intended for hazardous-area distributed I/O architectures. Transistor outputs, galvanic isolation from the backplane and load voltage, and module diagnostics support controlled field-device switching.
| Commercial Check | Verified Detail |
|---|---|
| Official Siemens lifecycle | PM300: Active Product |
| Ordering identity | Complete MLFB: 6ES7132-7RD01-0AB0 |
| Procurement basis | Confirm the exact H-shutdown variant, terminal module, Ex installation concept, actuator data and ET 200iSP configuration. |
| Parameter | Officially Verified Value |
|---|---|
| Article number | 6ES7132-7RD01-0AB0 |
| Product family | SIMATIC ET 200iSP digital electronic module |
| Digital outputs | 4 transistor outputs |
| Output rating | 23.1 V DC / 20 mA per output |
| Shutdown version | H-shutdown |
| Additional input | 1 intrinsically safe input for H-shutdown |
| Address space | Maximum 2 bytes |
| Input current from L+ | Maximum 340 mA with actuator supply |
| Backplane current | Maximum 10 mA at 3.3 V DC |
| Power loss | Typically 2.5 W |
| Isolation | Channels isolated from backplane bus and load voltage L+; no channel-to-channel isolation |
| Ex protection | Ex ib [ia Ga] IIC T4 Gb; Ex ib [ia IIIC Da] IIC T4 Gb; Ex ib [ia] I Mb |
| Compatible terminal modules | TM-IM/EM 6ES7193-7AA*0-0AA0 or TM-EM/EM 6ES7193-7CA*0-0AA0 |
| Dimensions | 30 × 129 × 136.5 mm (W × H × D) |
| Weight | Approximately 255 g |
Operates approved low-energy field actuators in ET 200iSP installations.
Uses the dedicated intrinsically safe shutdown input for coordinated output shutdown.
Integrates digital output control near process instrumentation in Ex zones.
Official Siemens product information lists 6ES7132-7RD01-0AB0 as PM300: Active Product.
It provides four intrinsically safe transistor digital outputs.
Each output is rated 23.1 V DC at 20 mA.
The module includes an additional intrinsically safe input used for H-shutdown of the outputs.
Siemens lists the 6ES7193-7AA*0-0AA0 and 6ES7193-7CA*0-0AA0 terminal-module families.
Official Siemens catalog data specifies 30 × 129 × 136.5 mm and approximately 255 g.
Send the full MLFB, installed hardware, required quantity and destination. We will check availability, configuration fit, inspection scope, warranty terms and global delivery options.
Submit your inquiry for Siemens 6ES7132-7RD01-0AB0.
Industrial Spare Parts Support
Our service process focuses on traceable identification, configuration matching, condition inspection and practical delivery planning for Siemens ET 200iSP intrinsically safe digital output spares.
We compare the complete order number, product family, label details and requested revision.
terminal module, Ex control drawing, H-shutdown logic and actuator ratings are checked against the requested application.
Installed system context and replacement requirements are reviewed before shipment.
ESD-conscious packing, shipment documentation and global delivery options are arranged.
Real workplace images show our team reviewing industrial components, checking shipment details and handling automation spares before dispatch.
Visual review of industrial modules and traceability details.
Order and packing checks performed by the handling team.
Careful handling and visible-condition review before shipment.
| Service Item | What We Check | Purchasing Value |
|---|---|---|
| MLFB verification | Complete 6ES7132-7RD01-0AB0 marking and traceability details | Avoids family-level mismatch |
| System fit | terminal module, Ex control drawing, H-shutdown logic and actuator ratings | Supports installation planning |
| Application review | Actuator current, Ex zone, shutdown logic and terminal-module order number | Protects compatibility |
| Condition inspection | Housing, terminals, contacts, label readability and visible handling condition | Provides receiving criteria |
| ESD-conscious packing | Protective materials suitable for electronic modules | Reduces handling risk |
| Global delivery support | Destination, carrier options and shipment documents | Simplifies procurement |
A clear label image and the complete article number.
Controller, interface or surrounding system order numbers.
Actuator current, Ex zone, shutdown logic and terminal-module order number.
Quantity, destination, required date and requested warranty terms.
Retain the installed hardware configuration, parameter set and wiring information. Share the surrounding system context so compatibility can be reviewed before shipment and commissioning delays can be reduced.
Send your 6ES7132-7RD01-0AB0 requirement for availability verification, configuration review, inspection scope, warranty information and global shipping support.
Include the quantity and delivery destination for an efficient response.
