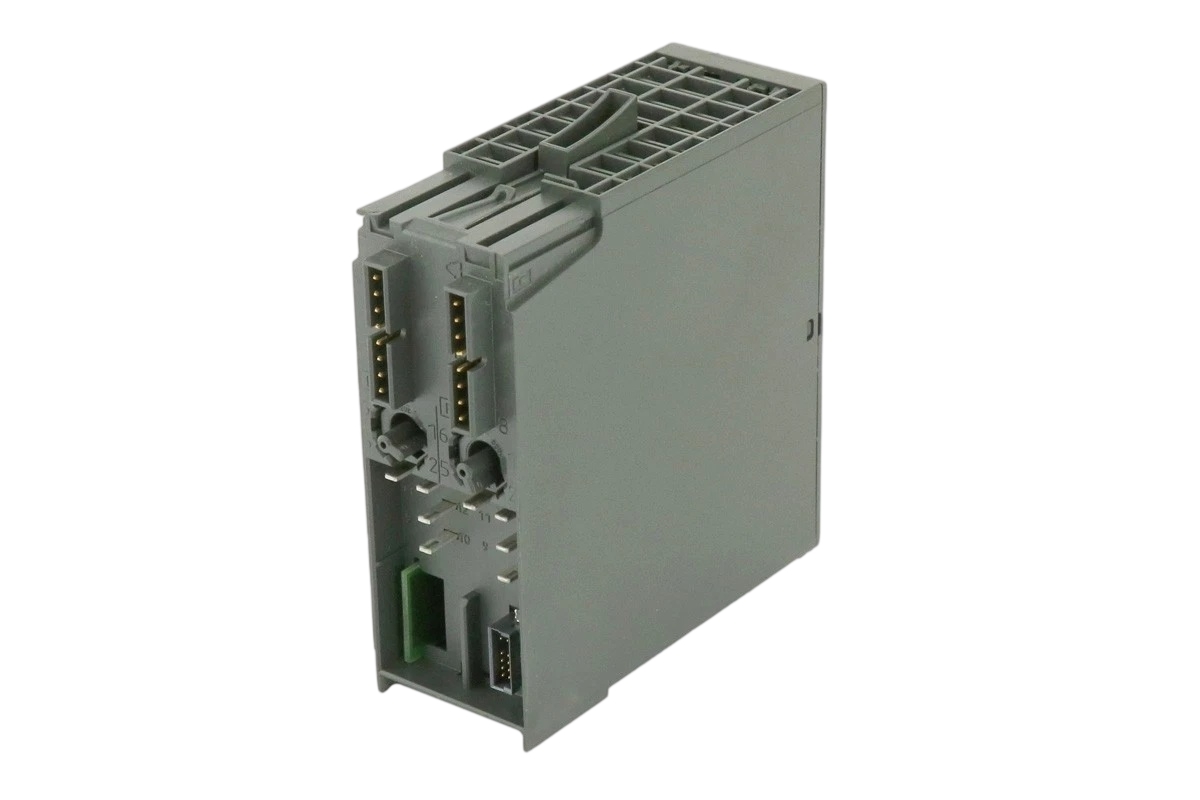

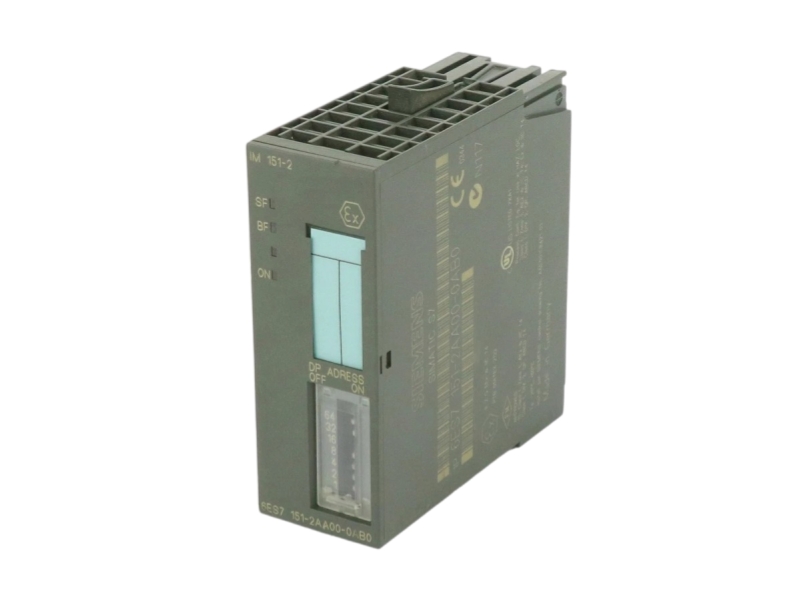

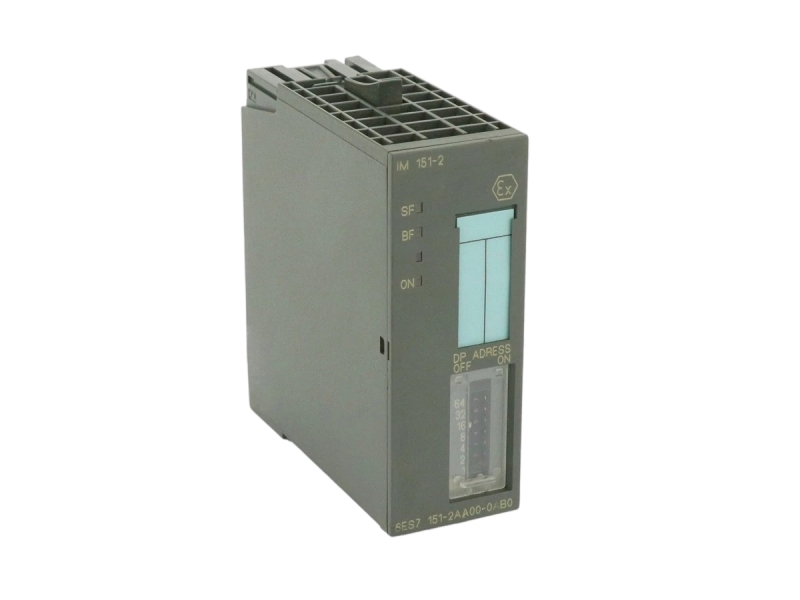

An IM151-2 interface module for ET 200iS stations, supplied with the power-bus termination module.
6ES7151-2AA00-0AB0 is a SIMATIC DP IM151-2 interface module for the ET 200iS distributed I/O system. Siemens identifies PROFIBUS DP communication and inclusion of the power-bus termination module. The module provides diagnostic indication and supports the ET 200iS station functions documented for this hardware generation.
| Official lifecycle | PM500: Discontinued Product or end of PLM & Support |
| Procurement approach | Source only after checking the ET 200iS station build, PROFIBUS parameters, terminal modules and hazardous-area documentation. |
| Parameter | Official value |
|---|---|
| Article number | 6ES7151-2AA00-0AB0 |
| Product type | SIMATIC DP IM151-2 for ET 200iS |
| Bus protocol | PROFIBUS DP |
| Included component | Power-bus termination module |
| Diagnostics | BF, SF and 24 V supply indication LEDs |
| Electrical isolation | PROFIBUS DP to electronic block; tested at 500 V DC |
| Dimensions (W x H x D) | 30 x 81 x 76 mm |
| Weight, approx. | 80 g |
| Country of origin | Germany |
Connects an ET 200iS distributed I/O station to PROFIBUS DP.
Supports compatible intrinsically safe ET 200iS station architectures.
Enables like-for-like servicing after station and approval verification.
Siemens lifecycle data lists 6ES7151-2AA00-0AB0 as PM500: Discontinued Product or end of PLM & Support. Procurement should therefore focus on exact identity, condition, approvals and a documented migration path.
It is an IM151-2 interface module for the SIMATIC ET 200iS distributed I/O system.
The documented bus protocol is PROFIBUS DP.
Siemens identifies the power-bus termination module as included.
The documented dimensions are 30 x 81 x 76 mm and the approximate weight is 80 g.
Use the applicable ET 200iS approvals and intrinsic-safety documentation, and verify the complete station configuration.
Send the complete part number, installed-system details, quantity and destination for stock verification, compatibility review, warranty terms and global delivery options.
Configuration review, condition inspection, packing and global delivery coordination for 6ES7151-2AA00-0AB0.
| Review stage | What we check | Procurement value |
|---|---|---|
| MLFB verification | Complete 6ES7151-2AA00-0AB0 suffix, label and hardware identity | Reduces substitution risk |
| System matching | IM151-2 identity, terminal modules, power-bus termination and ET 200iS station configuration | Confirms functional fit |
| Electrical review | 24 V monitoring, PROFIBUS wiring, isolation and hazardous-area installation rules | Confirms application suitability |
| Condition inspection | Housing, connectors, terminals and traceability markings | Documents offered condition |
| Protective packing | ESD protection, connector covers, moisture control and impact-resistant packing | Protects equipment in transit |
| Delivery follow-up | Quantity, destination, documents, tracking and warranty procedure | Supports planned maintenance |
Readable MLFB, serial or traceability label and installed hardware version.
Station module sequence, PROFIBUS address, GSD configuration, approvals and terminal assignments.
Supply, connectors, network media and adjacent equipment.
Quantity, destination, required date and preferred equipment condition.
Export the station configuration, record the PROFIBUS address and terminal sequence, and review hazardous-area documentation before replacing the discontinued interface module.
Send the 6ES7151-2AA00-0AB0 label, system context, quantity and destination for a configuration-focused response.
