SIMATIC ET 200S · High-Speed Analog Acquisition
Two high-speed voltage inputs, 15/16-bit resolution and isochronous capability in a compact 15 mm ET 200S electronic module.

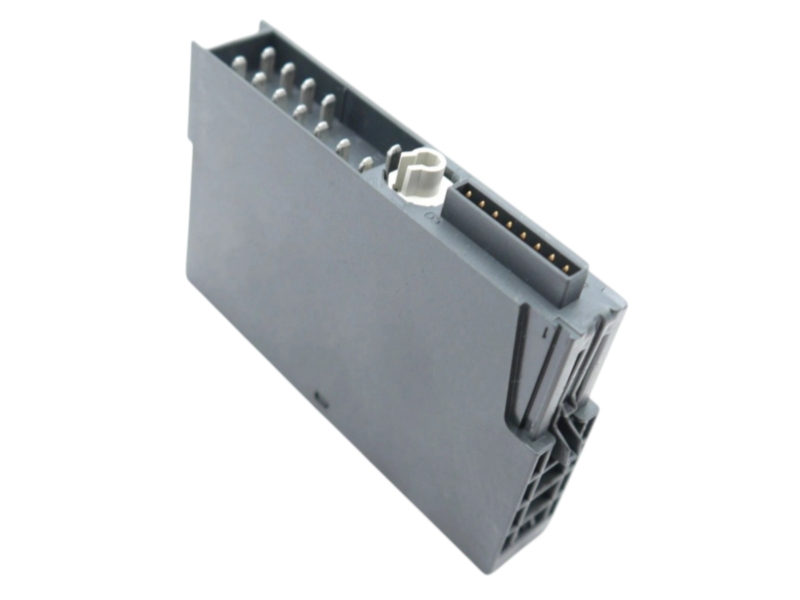

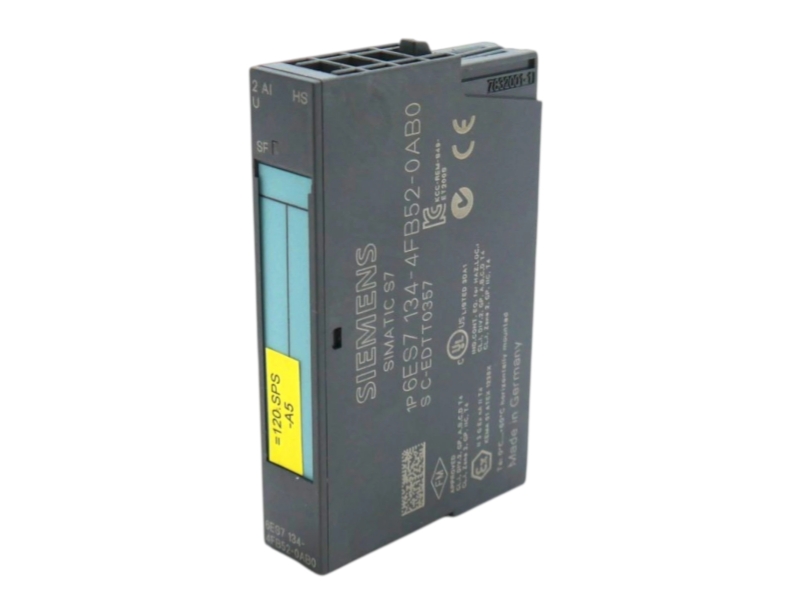

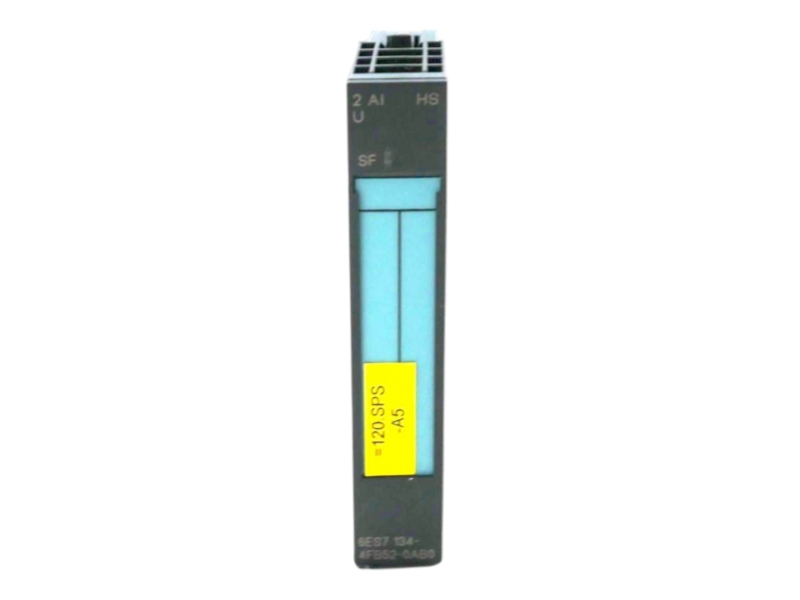

The Siemens 6ES7134-4FB52-0AB0 is a SIMATIC ET 200S electronic module for two high-speed voltage analog inputs. It accepts 1 to 5 V, ±2.5 V, ±5 V and ±10 V signals, converts each channel in 15 µs, and provides resolution up to 16 bits depending on the selected range. The 15 mm module is designed for compact distributed I/O stations where fast acquisition, deterministic timing and parameterizable smoothing are required.
| Commercial Check | Verified Detail |
|---|---|
| Official Siemens designation | Spare part |
| Ordering identity | Complete MLFB: 6ES7134-4FB52-0AB0 |
| Procurement basis | Confirm the terminal module, IM 151 interface module, signal range and hardware configuration before ordering. |
| Parameter | Officially Verified Value |
|---|---|
| Article number | 6ES7134-4FB52-0AB0 |
| Product family | SIMATIC ET 200S electronic module, 2AI U HS |
| Analog inputs | 2 voltage inputs |
| Load voltage L+ | 24 V DC; reverse-polarity protected |
| Input ranges | 1 to 5 V; ±2.5 V; ±5 V; ±10 V |
| Input resistance | 120 kΩ |
| Resolution | 15 bit for 1 to 5 V and ±2.5 V; 16 bit for ±5 V and ±10 V |
| Conversion time | 15 µs per channel |
| Cycle time, all channels | Maximum 250 µs |
| Address space | 4 bytes |
| Shielded cable length | Maximum 200 m |
| Electrical isolation | Channels isolated from backplane bus and L+; no channel-to-channel isolation; 500 V DC insulation test |
| Power loss | Typically 2 W |
| Width | 15 mm |
| Weight | Approximately 40 g |
| Diagnostics | Group fault indication by red SF LED; diagnostics supported |
| Isochronous operation | Supported |
Captures two fast-changing voltage signals for machine monitoring, test equipment and dynamic process measurements.
Supports deterministic acquisition in compatible ET 200S stations where synchronized I/O timing is required.
Fits space-limited cabinets with a 15 mm width while retaining diagnostics and configurable voltage ranges.
The current official Siemens data sheet identifies 6ES7134-4FB52-0AB0 as a spare part. Procurement should therefore include an article-number check, compatibility review and availability confirmation for the intended ET 200S station.
It provides two high-speed voltage analog inputs.
The module supports 1 to 5 V, ±2.5 V, ±5 V and ±10 V ranges.
Official data specifies 15 µs conversion time per channel and a maximum 250 µs cycle time for all channels.
Yes. Siemens documents isochronous operation and lists compatible IM 151-1 High Feature interface modules for technology functions.
The electronic module is 15 mm wide and weighs approximately 40 g.
Send the full MLFB, terminal module, IM 151 interface module, required quantity and destination. We will check availability, configuration fit, inspection scope, warranty terms and global delivery options.
Submit your inquiry for Siemens 6ES7134-4FB52-0AB0.
Industrial Spare Parts Support
Our service process focuses on traceable identification, configuration matching, condition inspection and practical delivery planning for Siemens ET 200S spares.
We compare the complete order number, product family, label details and requested revision.
Input ranges, 24 V DC supply, wiring, shielding and isolation requirements are checked.
We review the terminal module, interface module and intended ET 200S operating mode.
ESD-conscious packing, shipment documentation and global delivery options are arranged.
Real workplace images show our team reviewing industrial components, checking shipment details and handling automation spares before dispatch.
Visual review of industrial modules and traceability details.
Order and packing checks performed by the handling team.
Careful handling and visible-condition review before shipment.
| Service Item | What We Check | Purchasing Value |
|---|---|---|
| MLFB verification | Complete 6ES7134-4FB52-0AB0 marking and traceability details | Avoids family-level mismatch |
| Terminal and interface fit | Terminal module, IM 151 interface and intended operating mode | Supports installation planning |
| Signal-range review | Selected voltage range, resolution, wiring and shielding | Protects measurement compatibility |
| Condition inspection | Housing, terminals, contacts, label readability and visible handling condition | Provides practical receiving criteria |
| ESD-conscious packing | Protective materials suitable for electronic modules | Reduces transit and handling risk |
| Global delivery support | Destination, carrier options and shipment documents | Simplifies international procurement |
A clear label image and the complete article number.
Terminal module and IM 151 interface module order numbers.
Voltage ranges, channel use, timing needs and cable length.
Quantity, destination, required date and requested warranty terms.
For installed ET 200S stations, retain the current STEP 7 hardware configuration and parameter set. Share the rack context and connected signal information so compatibility can be reviewed before shipment. This helps reduce commissioning delays and prevents a voltage-range, terminal-module or interface-module mismatch.
Send your 6ES7134-4FB52-0AB0 requirement for availability verification, configuration review, inspection scope, warranty information and global shipping support.
Include the quantity and delivery destination for an efficient response.
