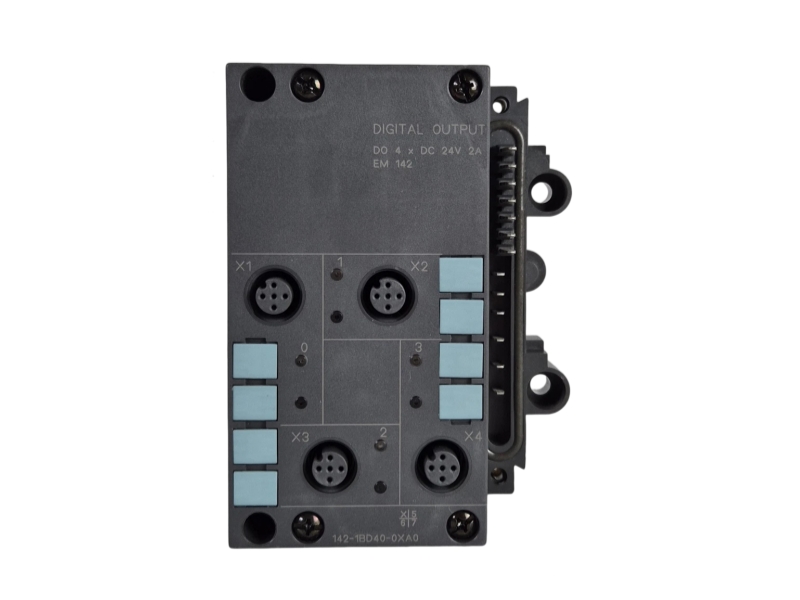

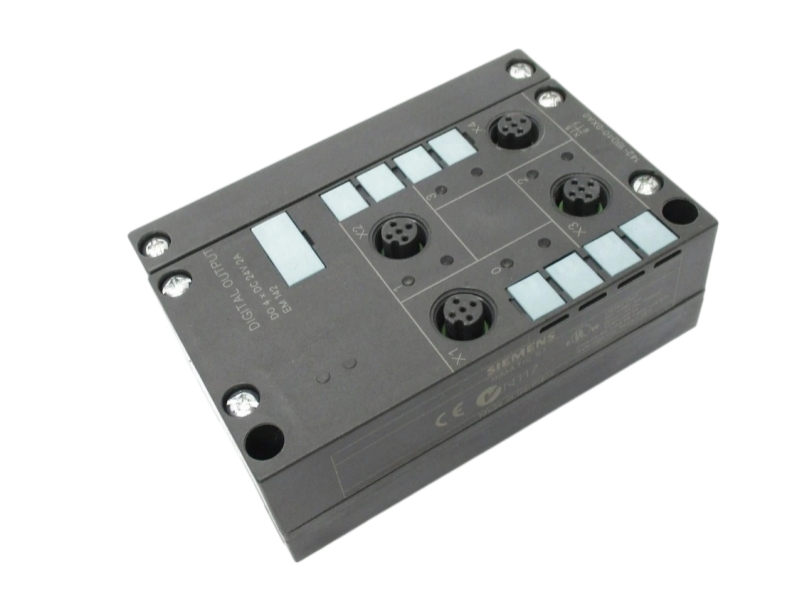

A field-mounted ET 200X expansion module with four protected 24 V DC outputs, 2 A per channel and M12 connections.

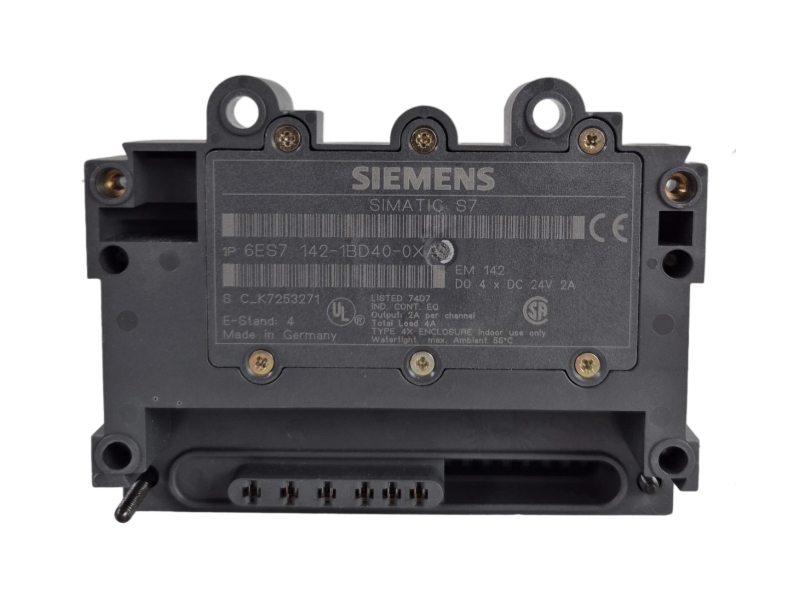

Siemens 6ES7142-1BD40-0XA0 is the SIMATIC DP EM 142 expansion module for the ET 200X distributed I/O system. It provides four digital outputs for switching 24 V DC industrial loads at up to 2 A per channel.
The module uses five-pole M12 field connectors and an IP65 housing concept for decentralized actuator wiring. Siemens documentation identifies it as a spare-part module intended for ET 200X basic modules.
| Manufacturer | Siemens |
|---|---|
| Product family | SIMATIC DP ET 200X expansion modules |
| Lifecycle | Current official lifecycle wording not confirmed |
| Country of origin | Germany |
| Parameter | Official specification |
|---|---|
| Article number | 6ES7142-1BD40-0XA0 |
| Module designation | EM 142 digital output expansion module |
| System | SIMATIC DP ET 200X |
| Digital outputs | 4 |
| Rated output voltage | 24 V DC |
| Rated output current | 2 A per channel |
| Field connection | Five-pole M12 connectors |
| Output protection | Electronic short-circuit protection |
| Typical power loss | 2.1 W |
| Residual current at signal 0 | Maximum 0.5 mA |
| Lamp load | Maximum 10 W |
| Switching frequency | Up to 100 Hz with resistive load; 0.5 Hz with inductive load; 10 Hz with lamp load |
| Protection rating | IP65 |
| System scope | Specified for ET 200X basic modules |
Switch valves, contactors, indicators and other 24 V DC loads close to the machine through an ET 200X station.
Use the IP65 and M12 construction where decentralized field wiring is preferred over long cabinet cable runs.
Restore a matching EM 142 output position after verifying the installed basic module, connector coding and load data.
Siemens documentation retrieved for this exact model identifies it as a spare part, but a current official PLM lifecycle phrase was not available in the consulted Siemens source. No Active, Classic, Discontinued or other lifecycle status is inferred.
It is a Siemens SIMATIC ET 200X EM 142 expansion module with four 24 V DC digital outputs.
Siemens specifies a rated output current of 2 A per channel at 24 V DC.
The module uses five-pole M12 connectors for decentralized field wiring.
Yes. Siemens specifies electronic short-circuit protection for the outputs.
Confirm the exact MLFB, ET 200X basic module, output loads, M12 wiring, sealing and revision.
Send the exact model, quantity, hardware status and destination for stock verification and an application-focused compatibility check.
