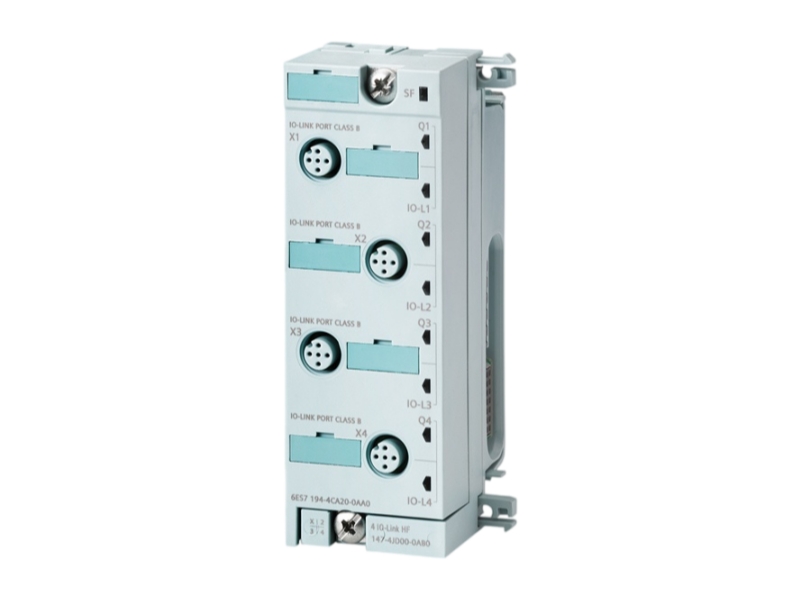

A rugged decentralized communication module with four simultaneously controllable IO-Link ports, channel diagnostics and an included bus module.

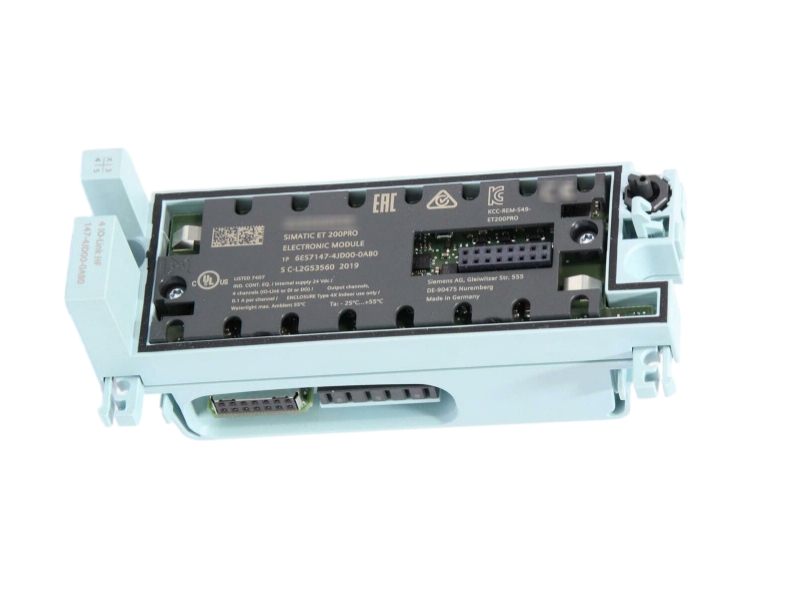

Siemens 6ES7147-4JD00-0AB0 is a SIMATIC DP electronic module for the ET 200pro distributed I/O system. It combines four IO-Link High Feature ports with channel-level diagnostics, allowing intelligent sensors and actuators to exchange cyclic process data, parameters and diagnostic information close to the machine.

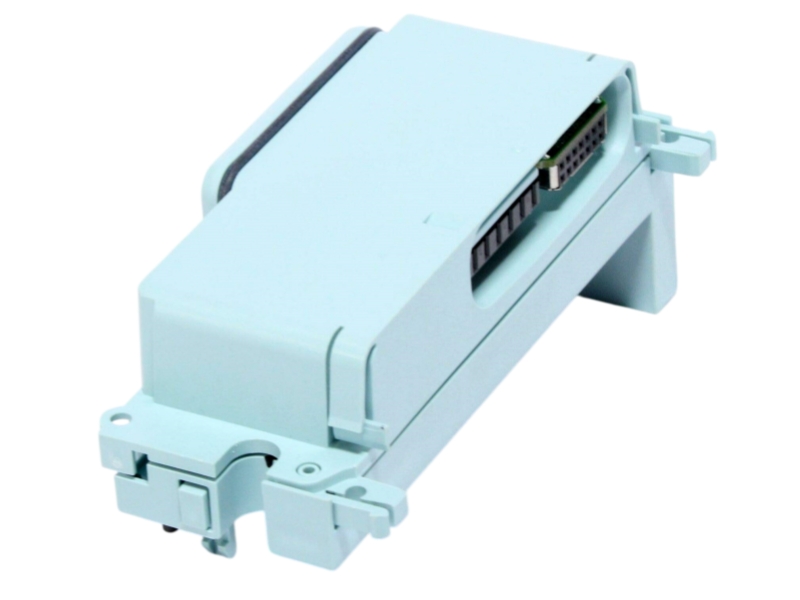

The supplied bus module supports integration into an ET 200pro station. The separate connection module IO, article number 6ES7194-4CA20-0AA0, must be ordered according to the required installation configuration.
| Manufacturer | Siemens |
|---|---|
| Product family | IO-Link master modules for SIMATIC ET 200pro |
| Lifecycle | PM300: Active Product |
| Country of origin | Germany |
| Parameter | Official specification |
|---|---|
| Article number | 6ES7147-4JD00-0AB0 |
| Module type | ET 200pro 4 IO-Link High Feature electronic module |
| Hardware / firmware | Function status FS03; firmware V1.2.x; firmware update supported |
| Number of IO-Link ports | 4; all four ports can be controlled simultaneously |
| Operating modes | IO-Link, DI or DQ; DQ output up to 100 mA |
| IO-Link protocol | Versions 1.0 and 1.1 |
| Transmission rates | COM1 4.8 kBd; COM2 38.4 kBd; COM3 230.4 kBd |
| Process data | Up to 32 bytes input and 32 bytes output per port and per module |
| Device parameter memory | 2 kB per port |
| Supply voltage | 24 V DC; reverse-polarity protection |
| Power loss | Typically 2.6 W |
| Diagnostics | Diagnostic alarm and readable diagnostic information; channel-level wire-break and short-circuit monitoring |
| Port wiring | Port types A and B; type A supports 3-core connection; maximum unshielded cable length 20 m |
| Protection rating | IP65 / IP67 |
| Dimensions | 45 × 130 × 35 mm |
| Weight | Approx. device weight 150 g; Siemens Mall listed net weight 0.181 kg |
| Included / separate item | Bus module included; connection module IO 6ES7194-4CA20-0AA0 ordered separately |
Connect IO-Link sensors, actuators and hubs while exchanging process values, parameters and diagnostics through the ET 200pro station.
Use the IP65/IP67 construction close to conveyors, packaging lines, handling systems and modular production equipment.
Channel diagnostics, readable alarms and device parameter handling support faster fault isolation and repeatable replacement work.
Siemens lists 6ES7147-4JD00-0AB0 as PM300: Active Product. Availability should still be confirmed against the required quantity, hardware status and delivery destination at the time of inquiry.
It is a Siemens SIMATIC ET 200pro four-port IO-Link High Feature master module with channel diagnostics.
Yes. Siemens specifies that all four IO-Link ports can be controlled simultaneously.
The module supports IO-Link 1.0 and 1.1 at COM1, COM2 and COM3 transmission rates.
The bus module is included, but connection module IO 6ES7194-4CA20-0AA0 must be ordered separately.
Confirm the exact MLFB, station configuration, port wiring, firmware, project requirements and physical condition.
Send the exact model, quantity, hardware status and destination for stock verification and an application-focused compatibility check.
Email Sales WhatsApp SalesOur service team supports identification, compatibility review, sourcing coordination, inspection planning and global delivery for automation maintenance projects.
We compare the complete Siemens article number, ET 200pro system context, hardware status, firmware expectations, connection-module requirement and application notes supplied with the inquiry. This reduces the risk of receiving a visually similar but electrically or functionally different module.
Before shipment, the order scope can be aligned around module condition, label evidence, connector areas, packaging and included accessories. Photo or nameplate evidence may be requested when it materially helps confirm the exact unit.
Our commercial team coordinates destination, quantity, transport preference and documentation needs for worldwide deliveries. Packing arrangements are selected to protect sensitive automation hardware through warehouse handling and international transit.
Customers receive a clear request for the technical information needed to evaluate fit, rather than a generic model-only response. This supports maintenance teams that must compare installed hardware, engineering records and plant shutdown schedules.
| Stage | How it helps your order |
|---|---|
| 1. Inquiry | Send 6ES7147-4JD00-0AB0, quantity, destination and available nameplate or installed-system details. |
| 2. Review | We check the exact MLFB, requested condition, ET 200pro fit and separate connection-module needs. |
| 3. Confirmation | Availability, lead time, inspection scope, warranty terms and delivery plan are confirmed before order processing. |
| 4. Dispatch | Protective packing and shipment documents are coordinated for the destination and chosen transport method. |
Share the exact quantity, installed ET 200pro configuration and delivery destination for an availability and compatibility review.
