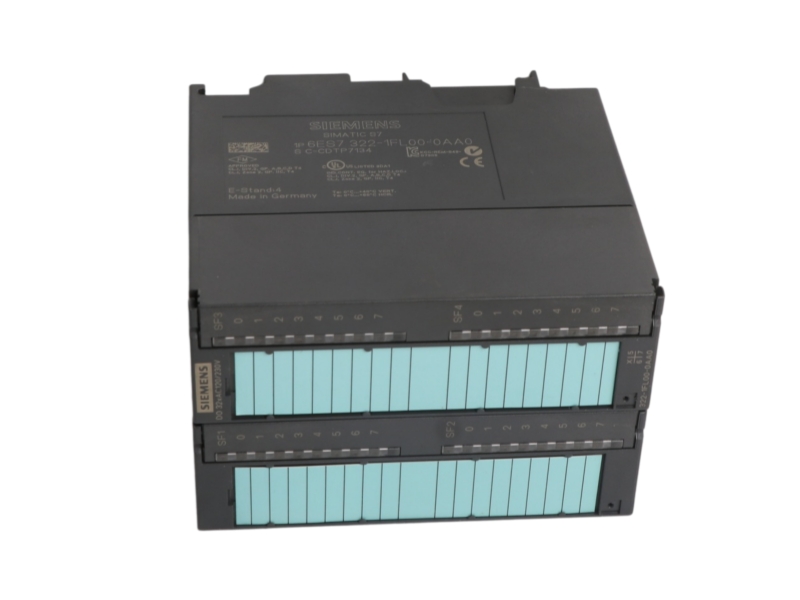

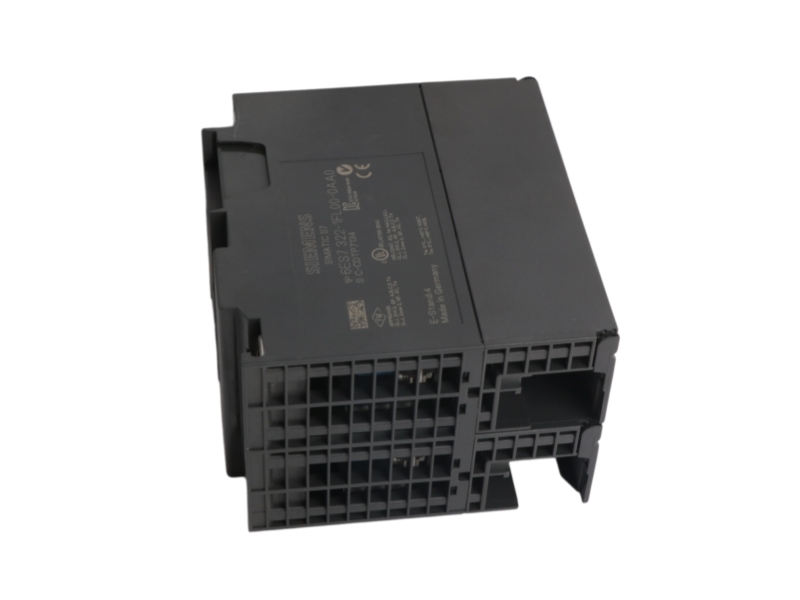

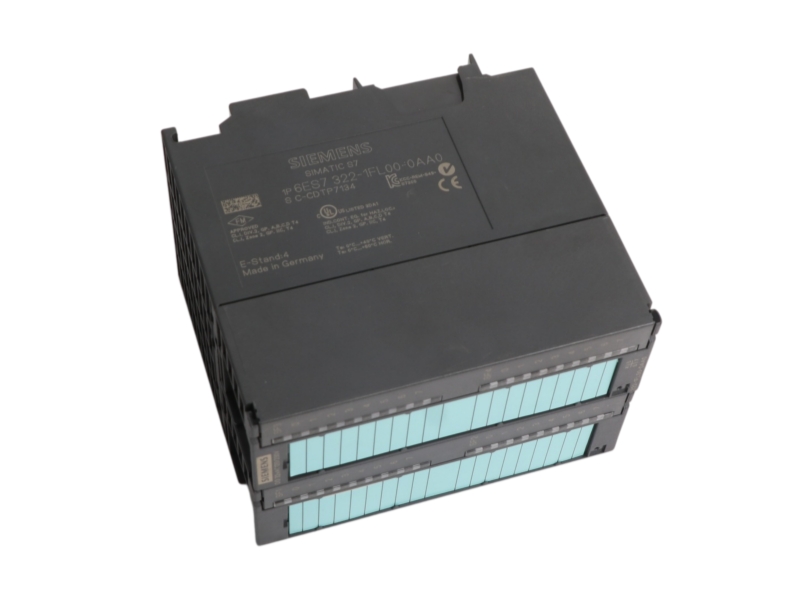

A double-width S7-300 output module providing 32 electrically isolated 120/230 V AC channels rated at 1 A.
Siemens 6ES7322-1FL00-0AA0 is a SIMATIC S7-300 SM 322 digital output module for controlling alternating-current loads. The module provides 32 outputs, electrically isolated and fused in groups of eight, with a rated load voltage of 120/230 V AC and a rated output current of 1 A.
Its double-width construction and grouped fault indication make it suitable for high-density control of AC contactors, solenoids, starters, fractional-horsepower motors and signal lamps in S7-300 installations.
| Manufacturer | Siemens |
|---|---|
| Product family | SM 322 digital output modules |
| Lifecycle | Current official lifecycle wording not confirmed |
| Country of origin | Germany |
| Parameter | Official specification |
|---|---|
| Article number | 6ES7322-1FL00-0AA0 |
| Module type | SM 322 digital output module |
| Digital outputs | 32 |
| Electrical grouping | Outputs fused and electrically isolated in groups of 8 |
| Rated load voltage | 120/230 V AC |
| Permissible load-voltage range | 79 to 264 V AC |
| Permissible frequency range | 47 to 63 Hz |
| Rated output current | 1 A |
| Load resistance | 48 Ω to 4 kΩ |
| Lamp load | Maximum 5 W |
| Switching frequency | Up to 100 Hz resistive; 0.5 Hz inductive; 10 Hz lamp load |
| Group indication | Blown-fuse indication for each group and SF group-error display |
| Mechanical format | Double-width S7-300 module |
| Front connection | Two 20-pole front connectors ordered separately |
| Typical power loss | 25 W |
Switch AC solenoids, contactors, starters, small motors and signal lamps from an S7-300 station.
Consolidate 32 field outputs where grouped isolation and fuse indication are important for maintenance.
Use as an exact-code replacement in established S7-300 systems after load, connector and project checks.
A current Siemens PLM lifecycle phrase for the complete model was not confirmed in the official sources retrieved for this edit. The page therefore does not label the module Active, Classic, Discontinued or Obsolete; availability must be checked against the exact MLFB.
It is a Siemens SIMATIC S7-300 SM 322 module with 32 digital AC outputs.
The rated load voltage is 120/230 V AC, with a documented permissible range of 79 to 264 V AC.
The 32 outputs are fused and electrically isolated in groups of eight.
Siemens specifies two 20-pole front connectors, which are ordered separately.
Confirm the exact MLFB, AC loads, group wiring, fuse condition, connectors, rack space and project configuration.
Send the exact model, quantity, hardware status and destination for stock verification and an application-focused compatibility check.
Email SalesWhatsApp SalesOur service team supports identification, compatibility review, sourcing coordination, inspection planning and global delivery for automation maintenance projects.
We compare the complete Siemens article number, the installed system context, hardware revision, electrical requirements, interface arrangement and application notes supplied with the inquiry. This reduces the risk of receiving a visually similar but electrically or functionally different module.
Before shipment, the order scope can be aligned around module condition, label evidence, connector areas, packaging and included accessories. Photo or nameplate evidence may be requested when it materially helps confirm the exact unit.
Our commercial team coordinates destination, quantity, transport preference and documentation needs for worldwide deliveries. Packing arrangements are selected to protect sensitive automation hardware through warehouse handling and international transit.
Customers receive a clear request for the technical information needed to evaluate fit, rather than a generic model-only response. This supports maintenance teams that must compare installed hardware, engineering records and plant shutdown schedules.
| Stage | How it helps your order |
|---|---|
| 1. Inquiry | Send 6ES7322-1FL00-0AA0, quantity, destination and available nameplate or installed-system details. |
| 2. Review | We check the exact MLFB, requested condition, S7-300 rack fit, AC load data and front-connector requirements. |
| 3. Confirmation | Availability, lead time, inspection scope, warranty terms and delivery plan are confirmed before order processing. |
| 4. Dispatch | Protective packing and shipment documents are coordinated for the destination and chosen transport method. |
Share the exact quantity, installed S7-300 rack and AC output wiring and delivery destination for an availability and compatibility review.
