15 mm power module for monitored 24–48 V DC load-voltage groups in ET 200S stations.

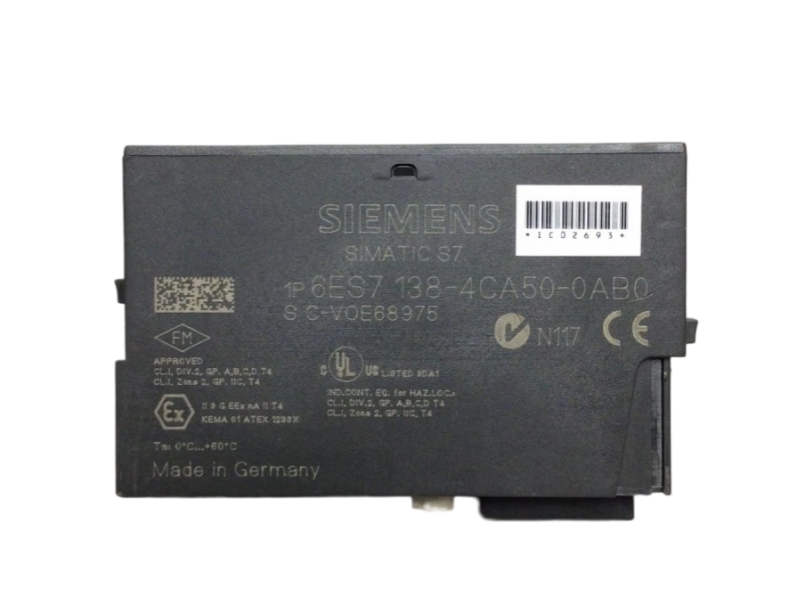

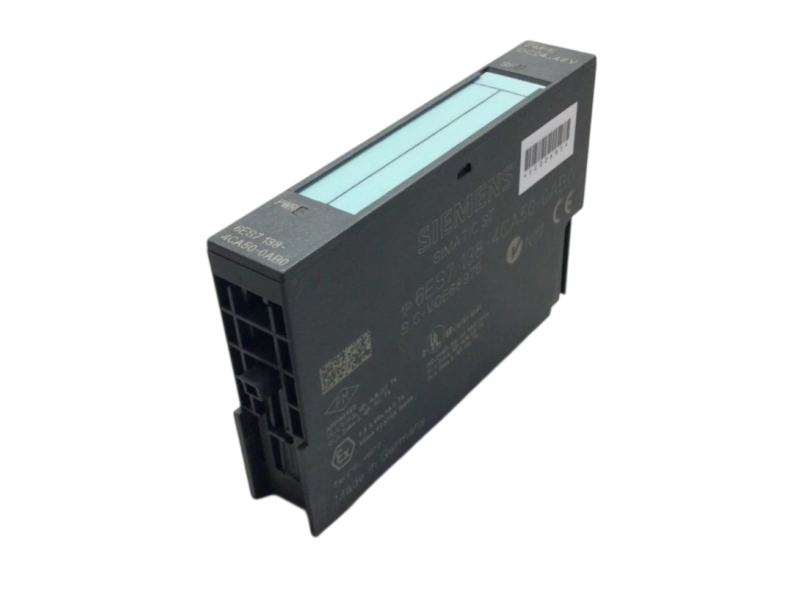

Siemens 6ES7138-4CA50-0AB0 is the SIMATIC DP PM-E DC24..48V power module for ET 200S. It supplies and monitors a load-voltage group while maintaining electrical isolation from the backplane bus and adjacent power-module groups.
This article is handled as an ET 200S spare part under Product Cancellation. Engineering checks must cover terminal-module selection, circuit-breaker protection, current carrying capacity and the complete station power architecture.
| Article number | 6ES7138-4CA50-0AB0 |
| Manufacturer | Siemens |
| Lifecycle | Product Cancellation |
| Lifecycle milestone | PM410 set on 01 October 2023 for ET 200S components |
| Supply handling | Spare-part supply; verify current availability before quotation |
| Product designation | PM-E DC24..48V power module |
| System | SIMATIC DP · ET 200S |
| Module width | 15 mm |
| Rated load voltage | 24 to 48 V DC |
| Reverse-polarity protection | Yes |
| Overvoltage protection | No |
| Permitted circuit breakers | Tripping characteristic B or C |
| Current carrying capacity | Maximum 10 A up to 60 °C |
| Short-circuit protection | No |
| Electrical isolation | Yes: load voltage to backplane bus and between power modules |
| Insulation test voltage | 500 V DC |
| No-load current from L+ | Maximum 12 mA |
| Power dissipation | Typically 500 mW |
| Parameter length | 3 bytes |

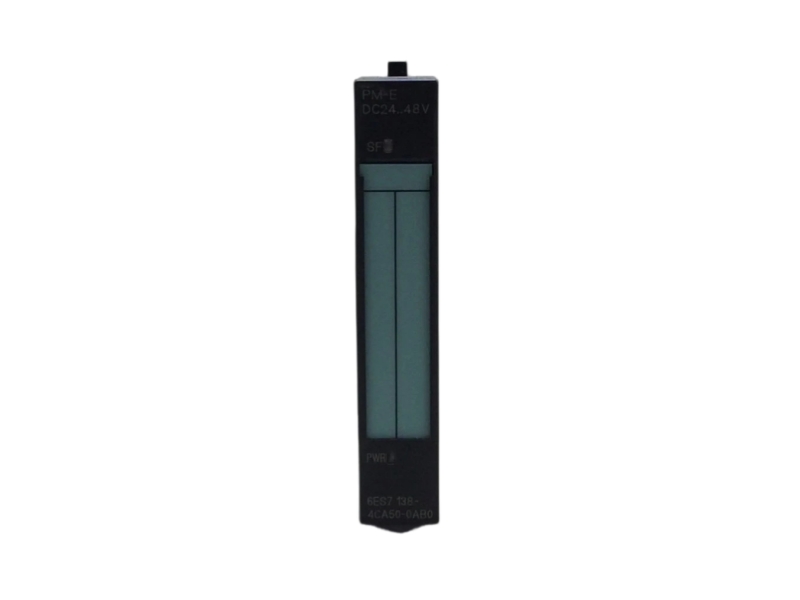

| Diagnostics and indication | Diagnostics available; red SF and green PWR LEDs |
| Approximate weight | 35 g |
The module monitors the applied load voltage; external protection and the 10 A current budget remain part of the station design.
Siemens lists 6ES7138-4CA50-0AB0 under Product Cancellation. PM410 for ET 200S components was set on 01 October 2023; supply is therefore handled as spare-part availability, not as Active or Discontinued.
It is the Siemens PM-E DC24..48V power module for ET 200S.
The official manual specifies a rated load voltage of 24 to 48 V DC.
The module carries a maximum of 10 A at ambient temperatures up to 60 °C.
No. External protection using a characteristic B or C circuit breaker is required.
Diagnostic information is readable, with a red SF LED and green PWR LED.
Confirm the terminal module, voltage, current budget, protective device and ET 200S spare-part availability.
Send the complete nameplate and ET 200S power-group configuration for compatibility, supply, global delivery and warranty verification.
Technical identity checks, power-group review, supply coordination and international delivery for 6ES7138-4CA50-0AB0.
We compare 6ES7138-4CA50-0AB0 with the installed ET 200S station and terminal-module reference.
Load voltage, 10 A current budget, circuit protection and potential-group arrangement are reviewed.
Condition, packaging, documentation, delivery options and warranty terms are aligned with the confirmed article.
Full Siemens nameplate, ET 200S station photographs, terminal-module code, voltage, current demand, quantity and destination.
Confirm the 24–48 V DC range, 15 mm terminal module, protective device and available group current before energizing.
Share the complete ET 200S power-group configuration for a documented compatibility and supply response.
