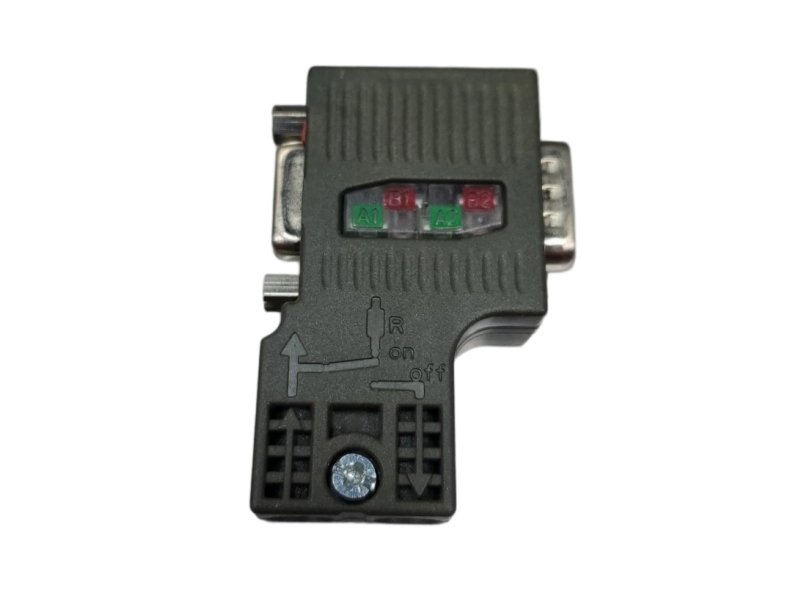

90-degree RS485 PROFIBUS connector with integrated terminating resistor and PG programming socket.

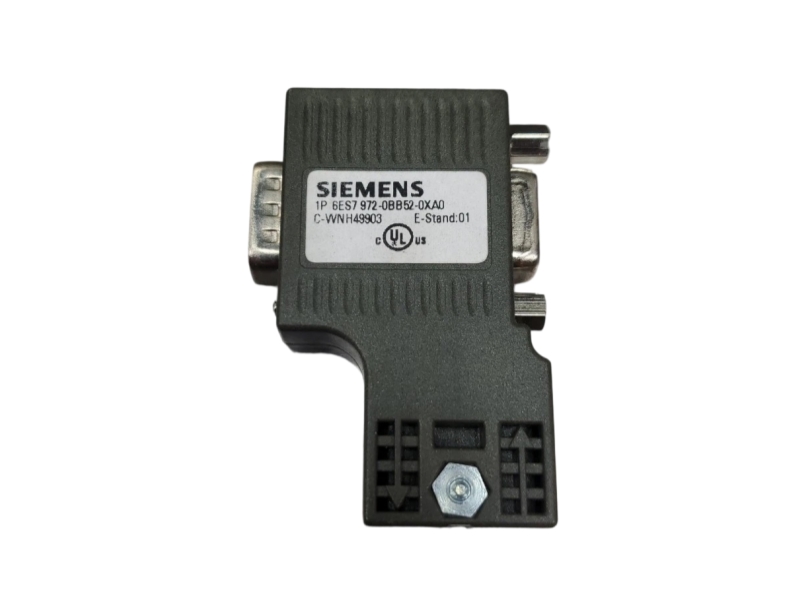

Siemens 6ES7972-0BB52-0XA0 is a SIMATIC DP PROFIBUS RS485 bus connector with FastConnect insulation-displacement technology, a 90-degree cable outlet and an integrated PG socket. It links PROFIBUS stations to the bus cable at rates up to 12 Mbit/s.
The connector includes an integrated switchable terminating resistor and screw locking. Procurement checks should verify the exact suffix, cable type, connector clearance, PG-access requirement and network termination position.
| Article number | 6ES7972-0BB52-0XA0 |
| Manufacturer | Siemens |
| Lifecycle | PM300: Active Product |
| Lifecycle milestone | Current Siemens lifecycle classification for this exact article |
| Supply handling | Active catalog product; verify stock and delivery before quotation |
| Product designation | PROFIBUS connector |
| Product family | RS485 bus connector |
| Network system | SIMATIC DP · PROFIBUS |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s |
| Cable outlet | 90 degrees |
| Cable connection | FastConnect insulation-displacement terminals |
| PG connection socket | Yes |
| Device connection | 9-pin Sub-D connector |
| PROFIBUS cable connections | 2 |
| Terminating resistor | Integrated; switchable by slide switch |
| Locking mechanism | Screwed joint |
| Enclosure material | Plastic |
| Dimensions (W × H × D) | 15.8 × 59 × 35.6 mm |
| Operating temperature | -25 to +60 °C |
| Storage and transport temperature | -40 to +70 °C |
| Degree of protection | IP20 |
| Current catalog net weight | 0.045 kg |
The connector is suitable for supported PROFIBUS devices; the terminating-resistor switch must match its physical position in the bus segment.
Siemens classifies 6ES7972-0BB52-0XA0 as PM300: Active Product. Availability, connector clearance and exact network fit should still be checked for each procurement request.
It is a Siemens SIMATIC DP RS485 PROFIBUS FastConnect bus connector.
Yes. The exact 0BB52 version includes a PG programming connection socket.
The official data sheet specifies PROFIBUS DP rates up to 12 Mbit/s.
Two-core PROFIBUS FastConnect cable uses integrated insulation-displacement terminals.
Yes. The resistor combination is integrated and switched with a slide switch.
Verify the full suffix, cable type, outlet angle, PG-socket need, clearance and termination position.
Send the complete network device list and cable information for compatibility, supply, global delivery and warranty verification.
Technical identity checks, cable review, supply coordination and international delivery for 6ES7972-0BB52-0XA0.
We compare 6ES7972-0BB52-0XA0 with the installed connector, node interface and PROFIBUS cable.
FastConnect cable, 90-degree clearance, PG access and terminating-resistor position are reviewed.
Condition, packaging, documentation, delivery options and warranty terms are aligned with the confirmed article.
Full Siemens marking, connector photographs, cable type, network device, baud rate, quantity and destination.
Confirm the exact 0BB52 suffix, PG-socket requirement, FastConnect cable and termination position before installation.
Share the complete PROFIBUS connection details for a documented compatibility and supply response.
