Four-output, 15 mm potential distributor for ET 200S power and signal-group arrangements.

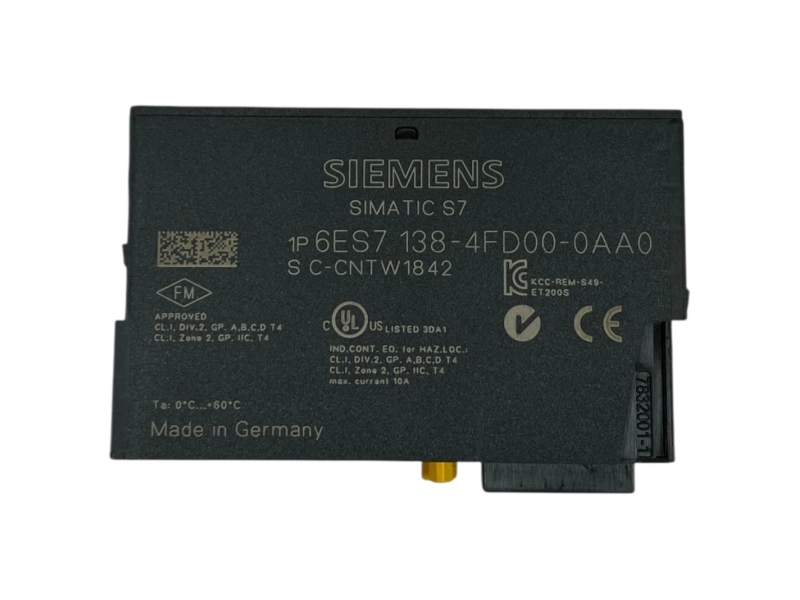

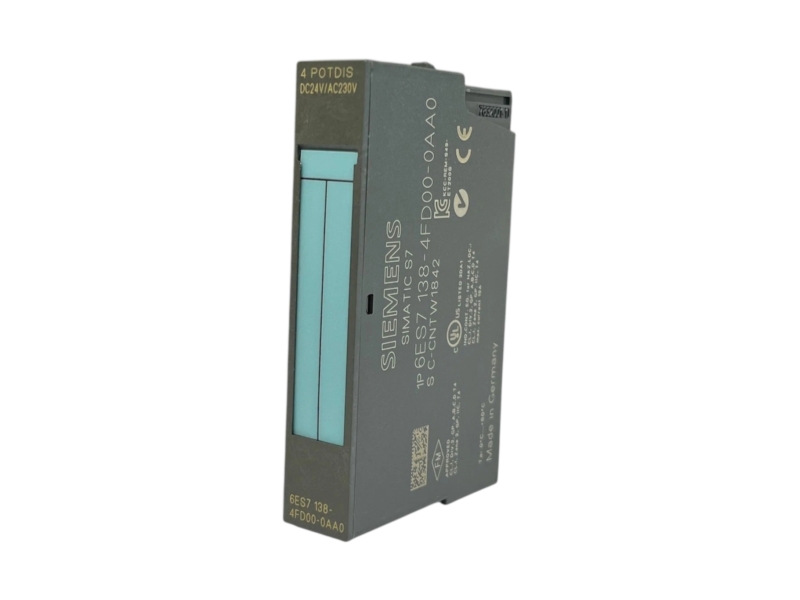

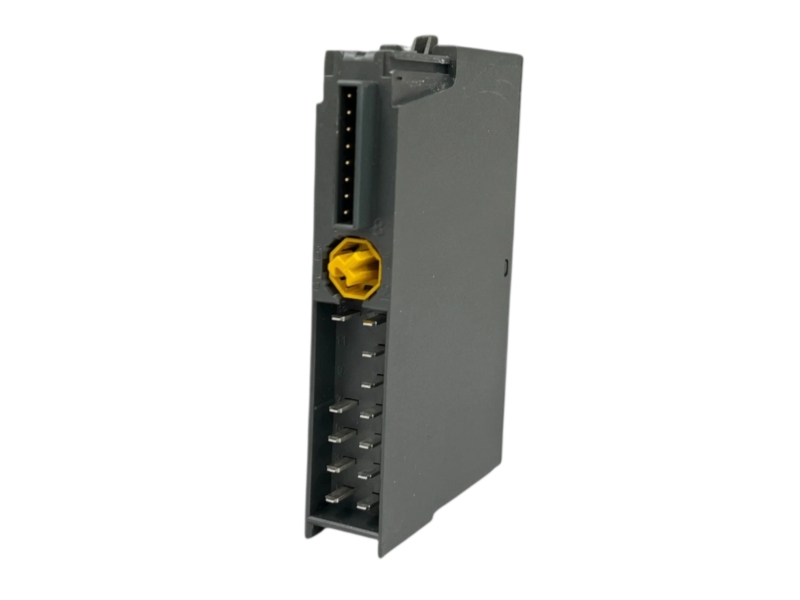

Siemens 6ES7138-4FD00-0AA0 is the SIMATIC DP 4POTDIS potential distributor module for ET 200S. The module provides four potential outputs in a 15 mm format and distributes load potential from the associated power module within an engineered ET 200S station.
It is a spare-part article under Product Cancellation. Replacement planning must verify the terminal module, voltage range, current budget, conductor method and total ET 200S station configuration.
| Article number | 6ES7138-4FD00-0AA0 |
| Manufacturer | Siemens |
| Lifecycle | Product Cancellation |
| Lifecycle milestone | PM410 set on 01 October 2023 for ET 200S components |
| Supply handling | Spare-part supply; verify current availability before quotation |
| Product designation | 4POTDIS potential distributor module |
| System | SIMATIC DP · ET 200S |
| Module width | 15 mm |
| Number of outputs | 4 |
| Rated load voltage | 24 to 48 V DC; 24 to 230 V AC |
| Total output current | Maximum 10 A per module |
| Cable length | Unshielded: maximum 600 m; shielded: maximum 1000 m |
| Electrical isolation | No between channels; yes between channels and backplane bus |
| Permissible potential difference | 75 V DC or 240 V AC between supply voltage and backplane bus |
| Insulation test level | 500 V DC or 1500 V AC |
| Short-circuit protection | No; protection possible through PM-E or externally |
| Diagnostic interrupt | No |
| Dimensions (W × H × D) | 15 × 81 × 52 mm, excluding terminal-module variation |
| Approximate module weight | 33 g |
| Current catalog net weight | 0.039 kg |
The total current available to 4POTDIS is reduced by the currents of modules located between the PM-E power module and the distributor.
Siemens lists 6ES7138-4FD00-0AA0 under Product Cancellation. For ET 200S components, PM410 was set on 01 October 2023; the system is therefore available only as a spare part. This status is not described as Active or Discontinued.
It is the Siemens 4POTDIS potential distributor module for ET 200S.
The module provides four potential-distribution outputs.
The official manual specifies 24–48 V DC and 24–230 V AC.
The total current of the outputs is limited to 10 A per module.
No. Protection can be provided by PM-E or an external protective device.
Confirm the article number, ET 200S terminal module, conductor method, voltage, current budget and spare-part availability.
Send the complete nameplate and ET 200S configuration for compatibility, supply, global delivery and warranty verification.
Technical identity checks, terminal-module review, supply coordination and international delivery for 6ES7138-4FD00-0AA0.
We compare 6ES7138-4FD00-0AA0 with the installed ET 200S station and terminal-module reference.
Voltage range, 10 A current budget, terminal method and protective-device arrangement are reviewed.
Condition, packaging, documentation, delivery options and warranty terms are aligned with the confirmed spare part.
Full Siemens nameplate, ET 200S station photographs, terminal-module code, voltage, current demand, quantity and destination.
Confirm the 15 mm terminal module, conductor method, PM-E position and available current before energizing the replacement.
Share the complete ET 200S configuration for a documented compatibility and supply response.
