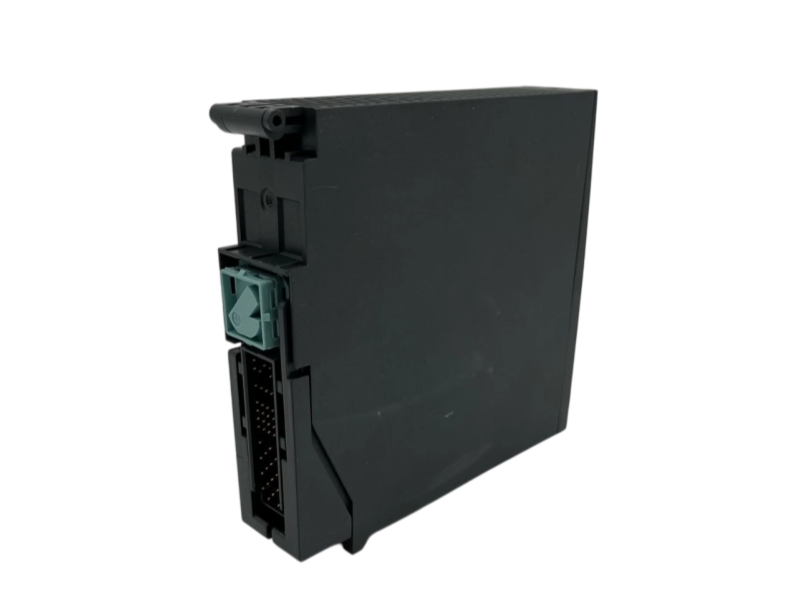

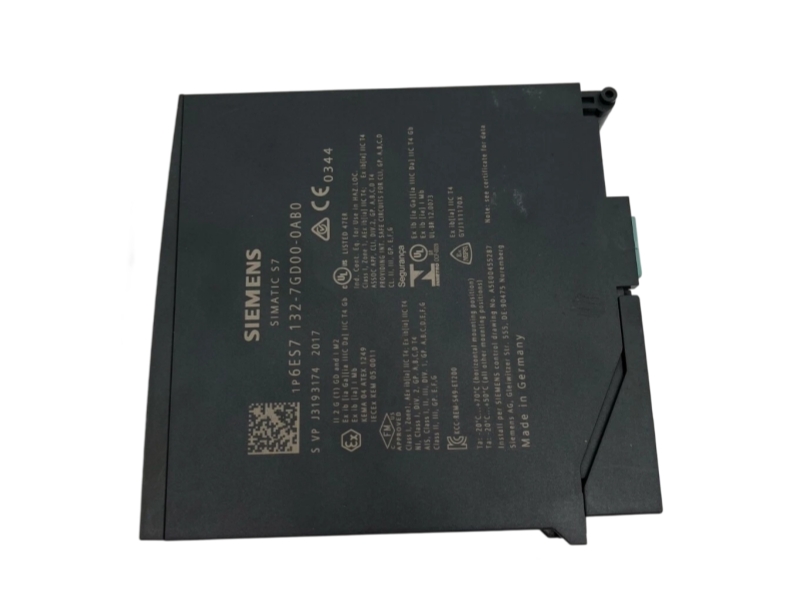

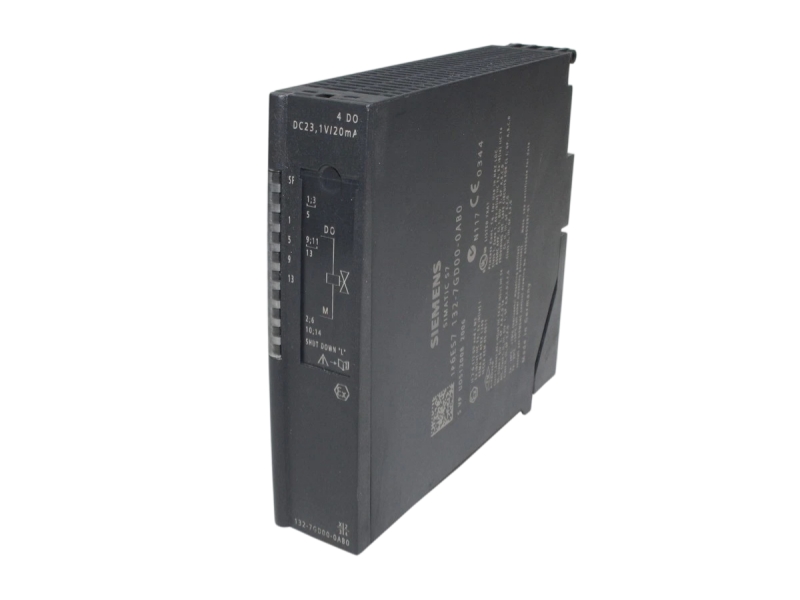

The Siemens 6ES7132-7GD00-0AB0 is an intrinsically safe SIMATIC electronic module for the ET 200iSP distributed I/O system. It provides four transistor digital outputs rated 23.1 V DC/20 mA and includes an intrinsically safe input for “L”-shutdown. Siemens documents diagnostic functions, short-circuit protection and hazardous-area approvals for gas, dust and mining applications.
| Official lifecycle wording | Current official lifecycle wording not confirmed |
| Procurement note | Confirm current Siemens availability, exact article number, hardware status, firmware, hazardous-area approval requirements and terminal accessories before ordering. |
| Manufacturer | Siemens |
| Complete article number | 6ES7132-7GD00-0AB0 |
| Product designation | 4DQ 23.1 V DC/20 mA |
| Product type | ET 200iSP digital output electronic module |
| Product version | SHUT DOWN “L” |
| HW functional status | 7 |
| Firmware version | V3.0.0 |
| Output technology | Transistor |
| Number of digital outputs | 4; plus 1 intrinsically safe input for L shutdown |
| No-load voltage Uao | 23.1 V DC |
| Rated output current for signal “1” | 20 mA |
| Current consumption, typical | 290 mA |
| Load-voltage current, maximum | 340 mA with actuator supply |
| Power loss, typical | 2.5 W |
| Address space per module | Maximum 2 bytes |
| Short-circuit protection | Yes |
| Output delay, 0 to 1 | Maximum 2 ms |
| Output delay, 1 to 0 | Maximum 1.5 ms |
| Switching frequency, resistive load | Maximum 100 Hz |
| Switching frequency, inductive load | Maximum 2 Hz |
| Maximum cable length | 500 m, shielded or unshielded |
| Diagnostics function | Yes; parameterizable diagnostic alarm |
| Wire-break diagnosis | Yes; R > 10 kΩ, I < 100 µA |
| Short-circuit diagnosis | Yes |
| Ex(i) protection | Yes; IECEx KEM 05.0011 |
| ATEX marking | II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb; II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb; I M2 Ex ib [ia] I Mb |
| Degree of protection | IP30 |
| Electrical connection | Screw/spring-type terminal |
| Mounting | Front mounting and rail mounting |
| Dimensions (W × H × D) | 30 × 129 × 136.5 mm |
| Approximate weight | 255 g |
Controls suitable low-power actuators in approved intrinsically safe ET 200iSP installations.
Provides four diagnostic-capable transistor outputs close to field devices in distributed process automation.
Supports the documented “L”-shutdown arrangement through an additional intrinsically safe input.
Verify the complete MLFB, ET 200iSP station, terminal module, actuator voltage and current, Ex(i) entity parameters, shutdown wiring, hazardous-area certificates, configuration software and installed hardware/firmware status.
Request clear nameplate, terminal-area and installed-station photographs. Confirm quantity, condition, terminal accessories, inspection evidence, documentation, warranty terms, packing method and delivery destination.
The current Siemens technical data sheet confirms the exact 6ES7132-7GD00-0AB0 product identity and technical specifications. A current official Siemens lifecycle label was not confirmed, so no lifecycle conclusion is inferred from other ET 200iSP output variants.
It is a Siemens SIMATIC ET 200iSP intrinsically safe four-channel digital output electronic module.
Siemens specifies four transistor outputs at 23.1 V DC with a 20 mA rated signal-current value.
It identifies this exact product version and its additional intrinsically safe shutdown input; the field circuit must follow Siemens documentation.
Yes. The official data lists diagnostics, parameterizable diagnostic alarms, wire-break detection and short-circuit detection.
The exact data sheet lists ATEX, IECEx and other approvals; verify the required certificate and installation conditions for the project.
Confirm the MLFB, terminal module, entity parameters, actuator load, shutdown wiring, certificates, hardware status and firmware.
Send the full order code, quantity, destination, ET 200iSP station details, actuator data and hazardous-area documentation for availability and compatibility review.
Exact-product identification, intrinsically safe circuit review, inspection planning, sourcing coordination and global delivery support for ET 200iSP maintenance projects.
We compare the complete 6ES7132-7GD00-0AB0 article number, 4DQ 23.1 V DC/20 mA designation, “L”-shutdown version, ET 200iSP station, terminal module and available actuator information supplied with the inquiry.
This reduces the risk of confusing the module with “H”-shutdown versions, different output voltages or currents, or standard non-intrinsically-safe output modules.
The agreed inspection scope can cover nameplate identity, enclosure, terminal area, contacts, status-label area, hardware marking and included accessories.
We can align visible-condition evidence, hazardous-area documents, requested certificates, packing expectations, warranty terms and destination-specific shipping requirements before dispatch.
The full MLFB, output rating, shutdown concept, terminal arrangement and ET 200iSP project context are checked together.
Procurement and engineering teams can align the exact photographs, markings, documents and accessories needed for approval.
Condition, lead time, warranty, protective packing, transport preference and destination are reviewed before shipment planning.
| Stage | Order support |
| 1. Inquiry | Send 6ES7132-7GD00-0AB0, quantity, destination and available nameplate or installed-station evidence. |
| 2. Compatibility review | We compare the ET 200iSP station, output rating, terminal module, actuator load, Ex(i) parameters, shutdown wiring, hardware status and firmware. |
| 3. Commercial alignment | Availability, condition, lead time, inspection evidence, documentation, warranty and delivery expectations are confirmed. |
| 4. Packing and dispatch | Protective packing and shipment documentation are coordinated for the destination and selected transport method. |
Share the exact quantity, ET 200iSP configuration, terminal module, actuator details, hazardous-area documentation and destination for an availability and compatibility review.
