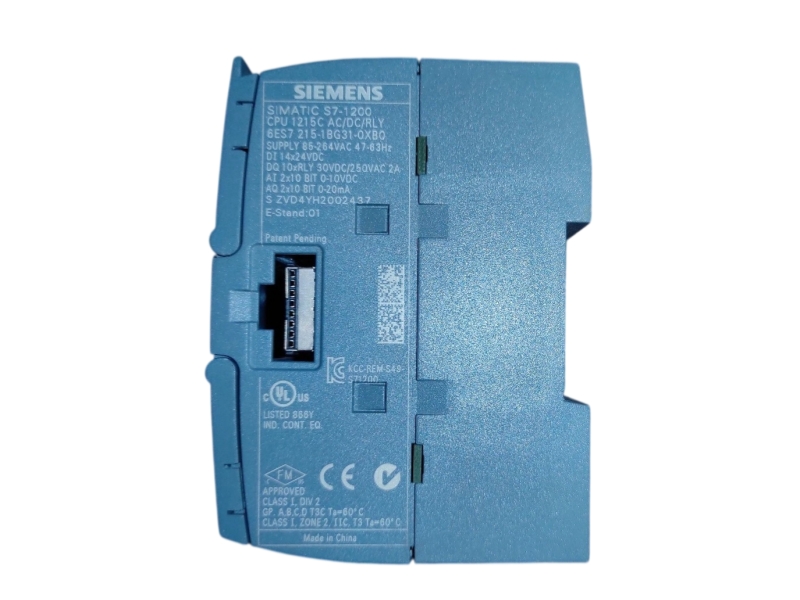

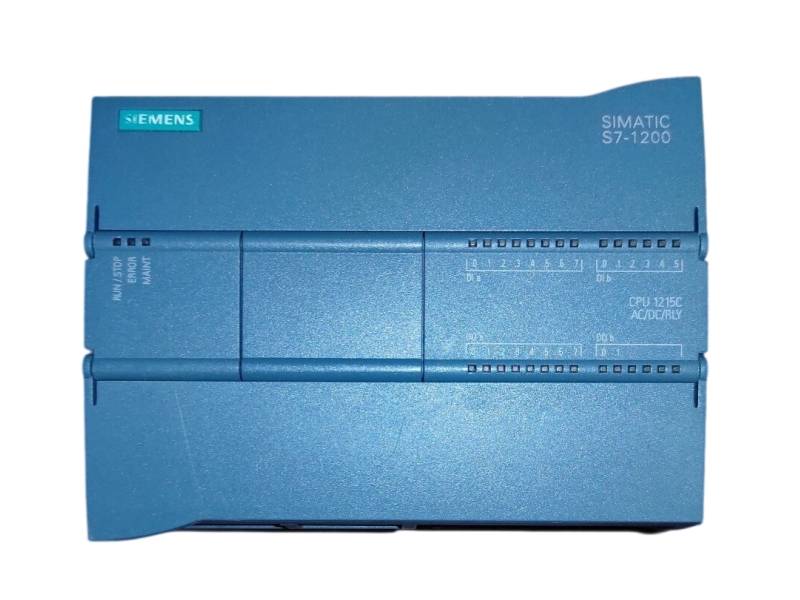

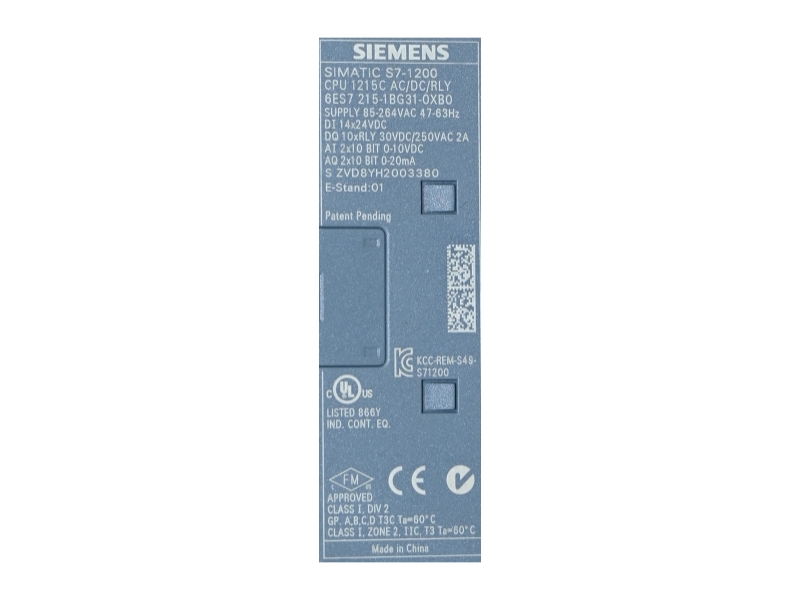

The Siemens 6ES7215-1BG31-0XB0 is a SIMATIC S7-1200 CPU 1215C compact controller with an AC power supply, 24 V DC inputs and relay outputs. It integrates dual PROFINET ports, digital and analog I/O, and 100 KB program/data memory for compact machine and process automation.
| Official lifecycle wording | Current official English lifecycle wording not confirmed |
| Procurement note | Confirm the exact 6ES7215-1BG31-0XB0 article number, installed firmware, STEP 7 project requirements, I/O load, communication topology and successor strategy before ordering. |
| Manufacturer | Siemens |
| Complete article number | 6ES7215-1BG31-0XB0 |
| Product designation | CPU 1215C AC/DC/relay |
| Automation system | SIMATIC S7-1200 |
| Power supply | 85–265 V AC, 47–63 Hz |
| Integrated digital inputs | 14 × 24 V DC |
| Integrated digital outputs | 10 relay outputs, 2 A |
| Integrated analog inputs | 2 × 0–10 V DC |
| Integrated analog outputs | 2 × 0–20 mA DC |
| PROFINET interfaces | 2 ports |
| Program/data memory | 100 KB |
| Integrated load memory | 4 MB |
| Engineering package | STEP 7 V11 SP2 or higher |
| Rated input current | 100 mA at 120 V AC; 50 mA at 240 V AC |
| Backplane-bus output current | Maximum 1,600 mA at 5 V DC |
| Typical power loss | 12 W |
| Bit operation time | Typically 0.085 µs |
| Word operation time | Typically 1.7 µs |
| Floating-point operation time | Typically 2.5 µs |
| Net weight | Approximately 514 g |
Combines processing, onboard I/O and network communication for compact automation cells.
Uses two integrated PROFINET ports for controller, HMI and distributed-device communication.
Supports local digital and analog signals without requiring every function to be added externally.
Verify the complete MLFB, AC supply, relay load ratings, analog signal ranges, PROFINET topology, expansion modules, signal board, STEP 7 version and installed firmware before replacement.
Request nameplate and terminal photographs, installed-project information and firmware evidence. Confirm condition, included terminal blocks, inspection scope, warranty, packing and destination before dispatch.
Siemens officially confirms the exact 6ES7215-1BG31-0XB0 CPU 1215C configuration and technical data. The current portal did not expose an unambiguous English lifecycle phrase for this exact order code, so no status is inferred from later CPU 1215C variants.
It is a Siemens SIMATIC S7-1200 CPU 1215C compact controller with AC supply, DC inputs and relay outputs.
The exact configuration includes 14 digital inputs, 10 relay outputs, two analog inputs and two analog outputs.
The CPU has two integrated PROFINET ports.
Siemens specifies STEP 7 V11 SP2 or higher for this hardware generation.
Not automatically. Verify firmware, project migration, wiring, memory, dimensions and feature differences before replacement.
Send the exact MLFB, firmware, project version, expansion modules, supply, I/O requirements, quantity and destination.
Send the full order code, quantity, destination and installed-system details for availability, configuration and compatibility review.
Exact CPU identification, project-context review, inspection planning, sourcing coordination and global delivery support for S7-1200 maintenance.
We compare the complete 6ES7215-1BG31-0XB0 MLFB, CPU 1215C AC/DC/relay configuration, firmware, STEP 7 project version, expansion modules and PROFINET requirements supplied with the inquiry.
This reduces the risk of confusing this 100 KB hardware generation with later CPU 1215C variants or different DC/DC configurations.
The agreed inspection scope can cover nameplate identity, enclosure, terminal areas, PROFINET ports, status indicators, firmware evidence and included terminal blocks.
We align visible-condition evidence, requested documentation, compatibility questions, warranty terms, protective packing and destination-specific shipping requirements before dispatch.
The MLFB, CPU generation, firmware, STEP 7 version, I/O load and PROFINET topology are assessed together.
Procurement teams can define required photographs, markings, terminal blocks, documents and functional evidence.
Condition, lead time, warranty, protective packing, transport preference and destination are reviewed before shipment.
| Stage | Order support |
| 1. Inquiry | Send 6ES7215-1BG31-0XB0, quantity, destination and available nameplate or installed-system evidence. |
| 2. Compatibility review | We compare the CPU generation, firmware, STEP 7 project, signal board, expansion modules, I/O loads and PROFINET topology. |
| 3. Commercial alignment | Availability, condition, lead time, inspection evidence, documentation, warranty and delivery expectations are confirmed. |
| 4. Packing and dispatch | Protective packing and shipment documentation are coordinated for the destination and selected transport method. |
Share the exact quantity, installed configuration, compatibility details and destination for an availability and procurement review.
