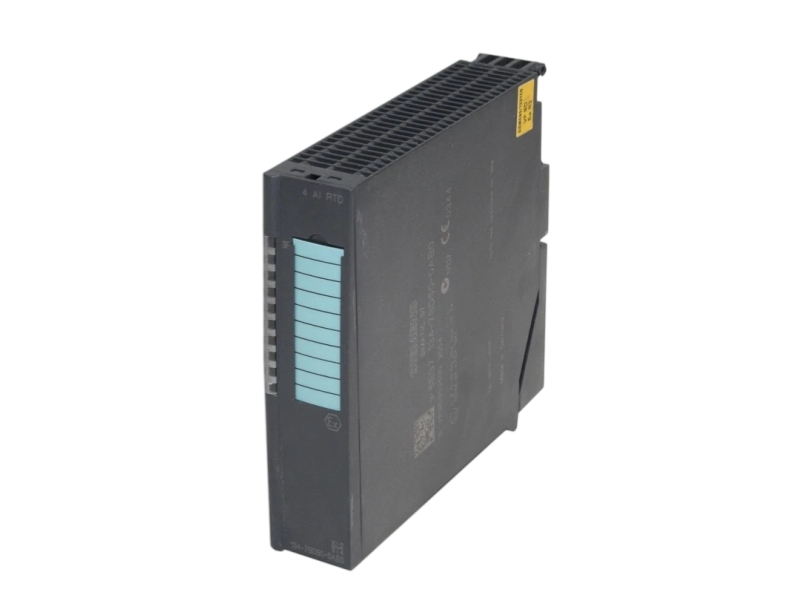

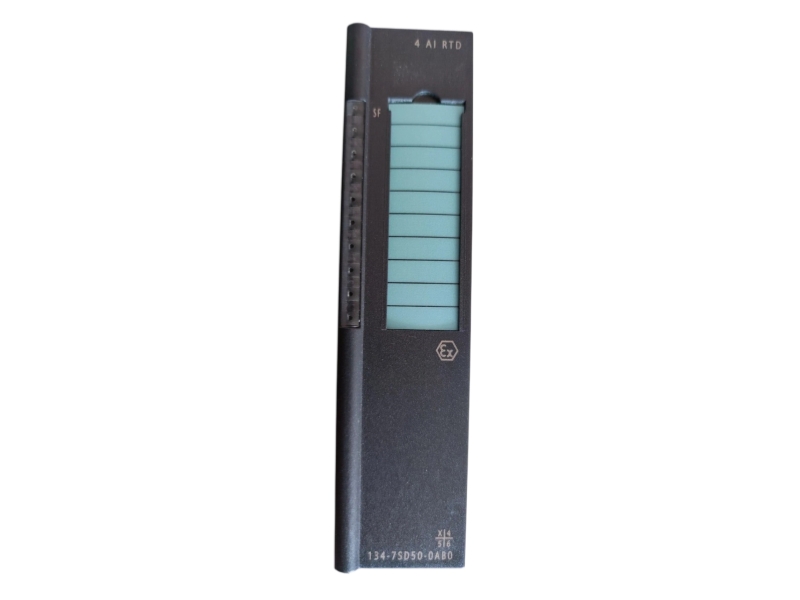

ET 200iSP four-channel analog electronic module for resistance-temperature measurement.
Siemens 6ES7134-7SD50-0AB0 is an ET 200iSP analog electronic module identified as 4 AI RTD for resistance-temperature measurement. Official Siemens documentation identifies four inputs and use with the ET 200iSP terminal modules TM-IM/EM 6ES7193-7AA**-0AA0 or TM-EM/EM 6ES7193-7CA**-0AA0. The Siemens intrinsic-safety control drawing publishes electrical entity parameters for each input and governs installation in applicable hazardous-area systems. Procurement should verify the exact order code, terminal module, sensor type, measuring range, wiring method, channel assignment, intrinsic-safety calculation, control drawing revision, project configuration and installed product version before replacement.
| Field | Verified Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
| Field | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7134-7SD50-0AB0 |
| Product Type | ET 200iSP analog electronic module 4 AI RTD |
| Product Family | SIMATIC ET 200iSP |
| Number of Inputs | 4 |
| Measurement Application | Resistance thermometers |
| Compatible Terminal Module | TM-IM/EM 6ES7193-7AA**-0AA0 or TM-EM/EM 6ES7193-7CA**-0AA0 |
| Maximum Open-Circuit Voltage per Input | Uo/Voc 5.9 V DC |
| Maximum Short-Circuit Current per Input | Io/Isc 24 mA |
| Maximum Output Power per Input | Po 36 mW |
| Maximum External Capacitance | Co/Ca 43 µF for Groups A,B / IIC; 1000 µF for Groups C-G / IIB |
| Maximum External Inductance | Lo/La 50 mH for Groups A,B / IIC; 200 mH for Groups C-G / IIB |
| Documented Product Version | 03 in the ET 200iSP operating instructions |
| Country of Origin | GERMANY |
| Application Area | Product-Specific Guidance |
|---|---|
| System Fit | SIMATIC ET 200iSP distributed I/O stations using the documented terminal modules. |
| System Role | Acquires four resistance-temperature measurement signals for process control. |
| Typical Applications | Temperature monitoring in process installations, including appropriately engineered hazardous-area systems. |
| Maintenance Use | Exact 4 AI RTD replacement where sensor wiring and intrinsic-safety design must be preserved. |
| Configuration Importance | Terminal module, RTD type, range, wiring, entity parameters and project configuration must match. |
A current Siemens lifecycle designation for the exact order code 6ES7134-7SD50-0AB0 was not confirmed in the official documents used for this page. No Active, phase-out, cancellation or discontinuation classification is asserted. Replacement review should focus on the terminal module, product version, RTD configuration, channel wiring, intrinsic-safety parameters, control drawing and ET 200iSP project.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Structured verification, inspection, documentation and delivery support for 6ES7134-7SD50-0AB0.
Our workflow begins with exact model and suffix verification against the purchase request and available product label. For this 4 AI RTD module, the team compares the ET 200iSP station, terminal module, product version, RTD sensor type, measuring range, channel wiring, intrinsic-safety calculation, control drawing and project configuration. Compatibility is reviewed for the installed system without promising automatic interchangeability.
| Service Stage | What Stockoems Checks |
|---|---|
| 1. Model and suffix verification | The complete 6ES7134-7SD50-0AB0 order code, manufacturer label and visible hardware details are compared. |
| 2. Condition confirmation | Condition, connectors, housing, included items, seals and visible handling marks are reviewed from available evidence. |
| 3. Technical compatibility review | ET 200iSP station, terminal module, RTD sensor type, measuring range, channel wiring, product version, entity parameters, control drawing and project configuration are compared. |

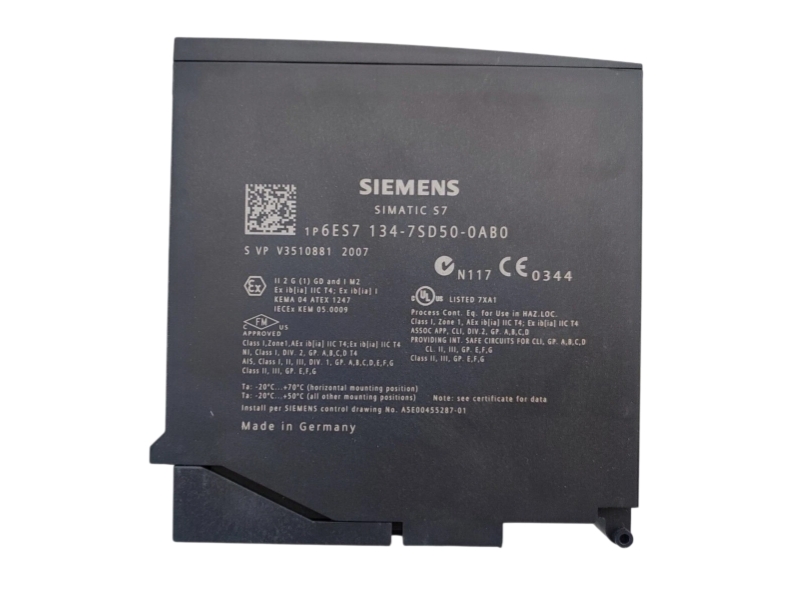

| 4. Product and label photo confirmation | Readable product, nameplate, connector and packaging photographs can be coordinated before shipment. |
| 5. Protective packaging | Antistatic and impact-protective materials are selected to protect the electronic module, contacts, housing and terminal interface. |
| 6. Worldwide shipping | Available worldwide shipping options are reviewed after destination, quantity and packaging scope are confirmed. |
| 7. Shipment tracking | Tracking details and shipment records are provided for the agreed logistics method. |
| 8. Customs documentation | Commercial invoices, packing information and available customs documentation are prepared for the shipment. |
| 9. Written warranty terms | The applicable one-year commercial warranty scope is documented before order completion. |
| 10. Return authorization | Return conditions and authorization steps are explained in writing before approval. |
| 11. After-sales response | Questions about received condition, documentation and installation evidence are handled through a traceable service channel. |
The service team coordinates label review, Siemens-document comparison, terminal and contact inspection, antistatic packaging, logistics communication and after-sales records. Procurement teams can compare the requested code with readable module and terminal evidence. Engineers should provide the ET 200iSP station configuration, terminal module, product version, RTD details, wiring, entity-parameter calculation, control drawing revision and project file. Unverified inventory quantities and fixed delivery dates are not promised; commercial timing is reviewed after exact scope confirmation.
