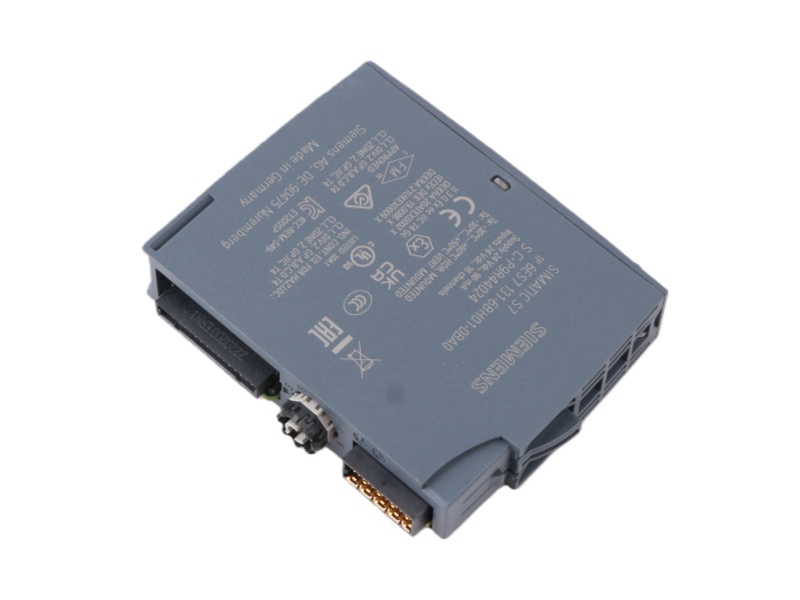

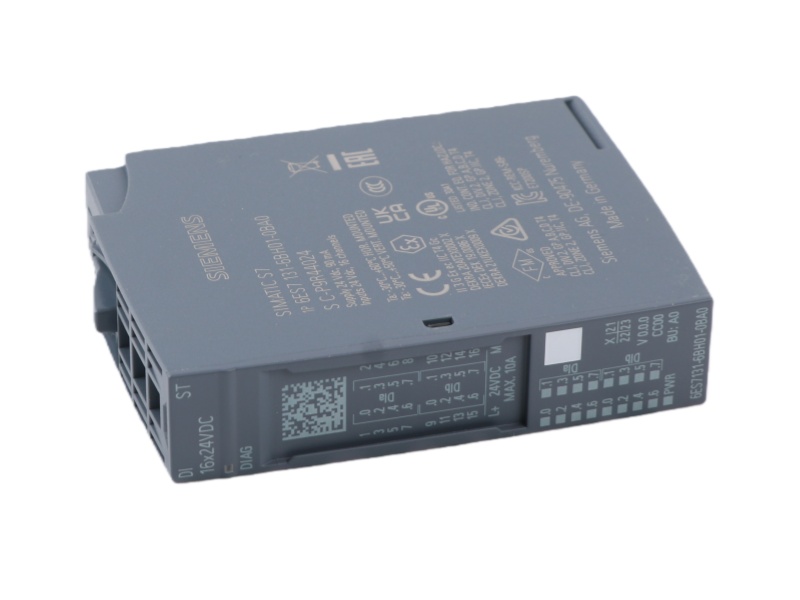

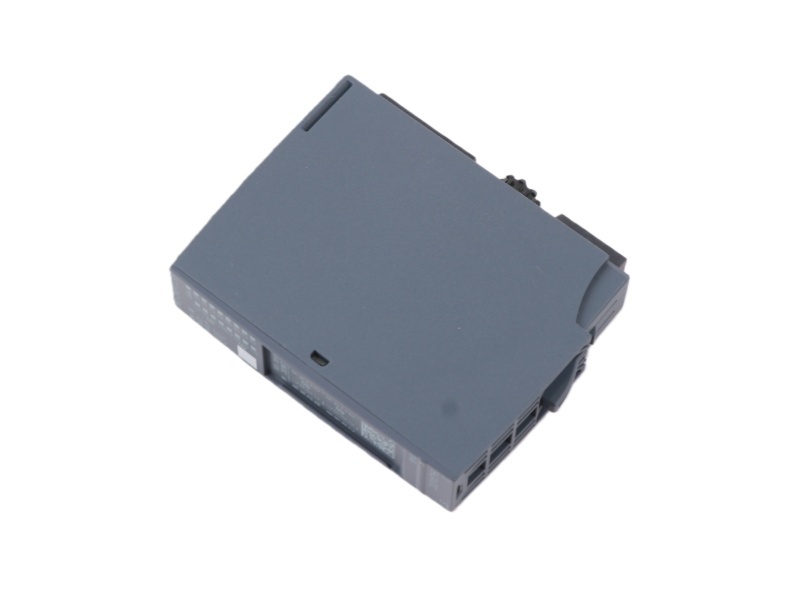

The 6ES7131-6BH01-0BA0 Siemens Digital input module is a high-density digital input module from the SIMATIC ET 200SP series, providing sixteen 24V DC standard input channels in a compact form factor. Designed for industrial automation systems requiring substantial digital signal acquisition, this module complies with IEC 61131 Type 3 specifications and features sink input (PNP) functionality. It demonstrates excellent space efficiency while maintaining full diagnostic capabilities, making it particularly suitable for applications where control cabinet space is limited but channel count requirements are high.

Engineered with advanced technical characteristics, the SIMATIC ET 200SP 6ES7131-6BH01-0BA0 Siemens operates within a wide supply voltage range of 19.2 to 28.8V DC and incorporates reverse polarity protection for enhanced system security. With a maximum current consumption of 90 mA and typical power loss of 1.7W, the module achieves efficient energy utilization. The adjustable input delay time ranging from 0.05 to 20 milliseconds allows it to be optimized for various application scenarios, whether requiring fast response for critical signals or filtering for noisy environments.

The diagnostic capabilities of the Siemens 6ES7131-6BH01-0BA0 DI 16x 24V DC Standard provide comprehensive monitoring for wire breaks and supply voltage anomalies, enabling proactive maintenance and reducing system downtime. Supporting I&M data functions from I&M0 to I&M3, the module facilitates detailed device information management and maintenance documentation. These features make it particularly valuable in applications where operational reliability and quick fault identification are critical to maintaining production continuity.

Compatible with BU-type A0 BaseUnits and identified by color code CC00, the sink input Siemens 6ES7131-6BH01-0BA0 ensures correct installation and seamless integration into ET 200SP distributed I/O systems. The module is fully supported by Siemens engineering tools including STEP 7 TIA Portal from version V14 and PCS 7 from version V8.1 SP1, streamlining configuration and commissioning processes. The combination of high channel density, robust construction, and comprehensive diagnostics makes the Siemens 6ES7131-6BH01-0BA0 an ideal solution for modern industrial automation systems requiring reliable processing of multiple digital signals with advanced monitoring capabilities.
