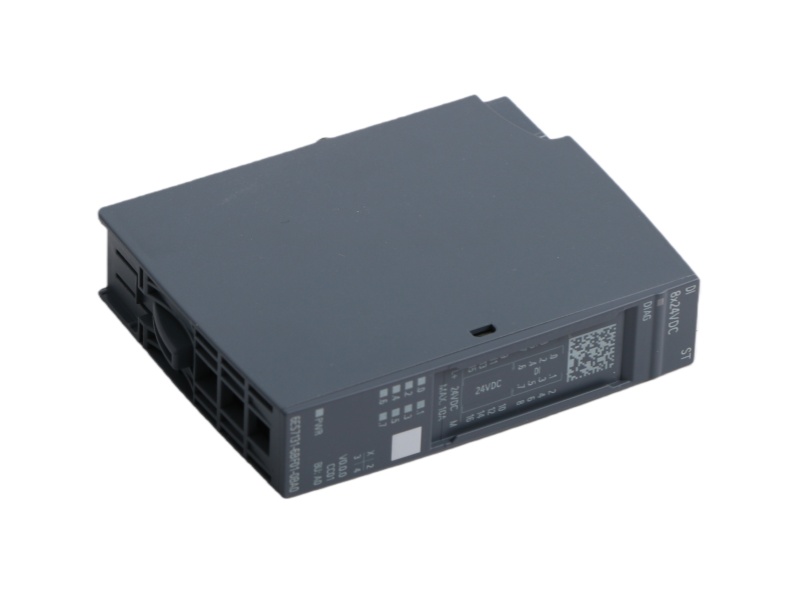

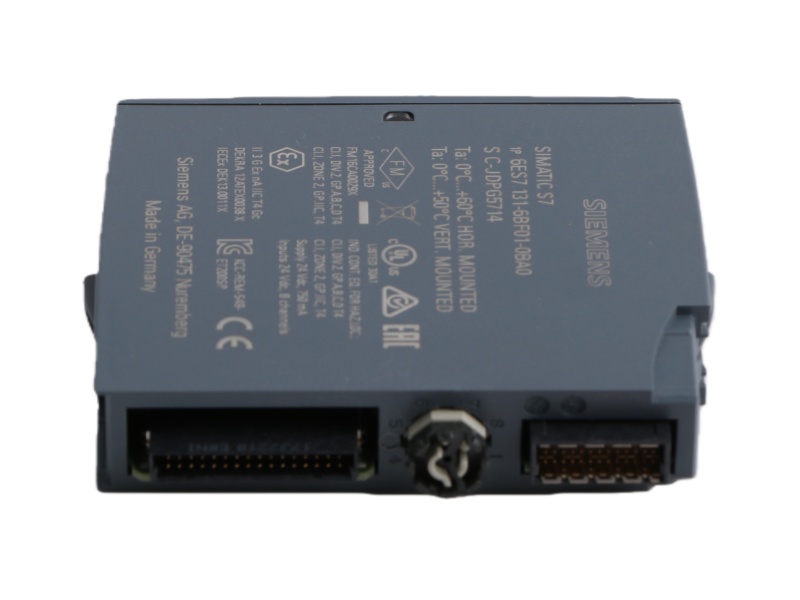

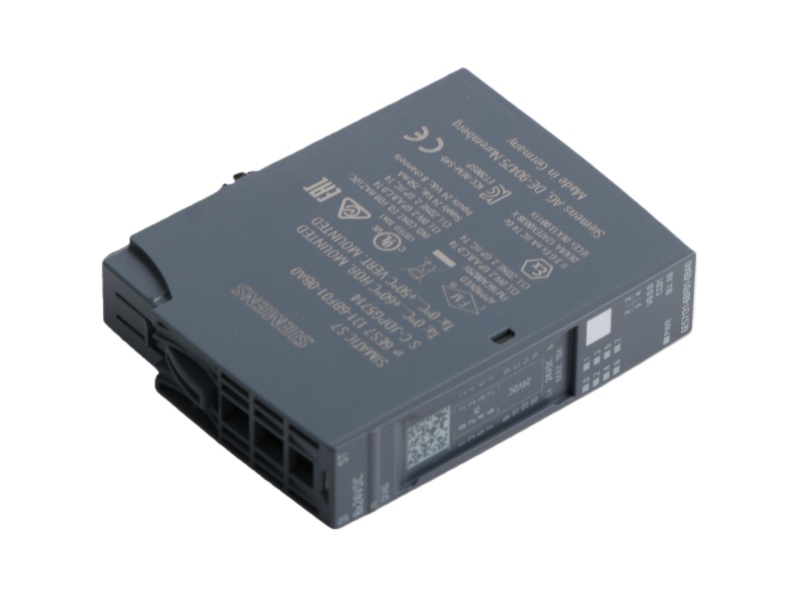

Siemens 6ES7131-6BF01-0BA0 Digital Input Module

Inquiry now

6ES7131-6BF01-0BA0 Product datasheet

Model number:	6ES7131-6BF01-0BA0	Module Type：	Digital Input Module
Manufacture:	Siemens	Condition：	Brand New
Range of Product:	SIMATIC ET 200SP	Lead time：	In Stock
Weight:	0.95 kg	HS CODE：	8537101190
Dimension:	2.5 cm x 5.1 cm x 83.8 cm	MOQ:	1
Product Origin:	GERMANY	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

6ES7131-6BF01-0BA0 Functional Description

The 6ES7131-6BF01-0BA0 Siemens SIMATIC ET 200SP is a digital input module belonging to the SIMATIC ET 200SP distributed I/O system, providing eight standard 24V DC input channels. Designed for industrial automation applications, this module complies with IEC 61131 Type 3 specifications and features sink input (PNP) functionality, ensuring broad compatibility with various field sensors and devices. It is engineered for reliable operation in demanding industrial environments, offering stable signal acquisition for control and monitoring purposes.

With its adjustable input delay time ranging from 0.05 to 20 milliseconds, the Digital input module 6ES7131-6BF01-0BA0 Siemens provides flexibility for different application requirements, allowing optimization for either fast response or noise immunity. The module operates within a wide supply voltage range of 19.2 to 28.8V DC and incorporates reverse polarity protection, enhancing system reliability. These technical characteristics make it suitable for diverse automation scenarios where consistent performance is crucial.

The comprehensive diagnostic capabilities of the Siemens 6ES7131-6BF01-0BA0 24V DC power supply represent a significant advantage, continuously monitoring for short-circuits in sensor supply, wire breaks, and supply voltage anomalies. This proactive fault detection enables quick troubleshooting and reduces system downtime. The Siemens 6ES7131-6BF01-0BA0 supports I&M data functions (I&M0 to I&M3) for detailed device information storage and retrieval, facilitating maintenance and documentation processes.

Compatible with BaseUnit type A0 and identified by color code CC01, the DI 8x 24V DC Standard Siemens 6ES7131-6BF01-0BA0 ensures correct installation and seamless integration into ET 200SP stations. The module is supported by major engineering tools including STEP 7 TIA Portal from version V14 and PCS 7 from version V8.1 SP1, simplifying configuration and commissioning. The robust design and advanced features of it make it an ideal choice for modern industrial automation systems requiring reliable digital input processing with comprehensive diagnostics.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

SIEMENS	6ES7 212-1HE40-0XB0	SIEMENS	6ES7 522-1BH10-0AA0	SIEMENS	3RW5980-0HF00
SIEMENS	6ES7 972-0BB52-0XA0	SIEMENS	6ES7 322-1HF10-0AA0	SIEMENS	7KM3220-0BA01-1DA0
SIEMENS	6ES7 135-7TD00-0AB0	SIEMENS	6AV6 644-0AB01-2AX0	SIEMENS	6GK5116-0BA00-2AC2
SIEMENS	6GK5005-0BA00-1AB2	SIEMENS	6ES7 331-7PF01-0AB0	SIEMENS	6EP1961-3BA21
SIEMENS	6ES7 155-5AA01-0AB0	SIEMENS	6ES7 138-4CA01-0AA0	SIEMENS	6ES7 131-1BL12-0XB0
SIEMENS	6ES7 132-4BD32-0AA0	SIEMENS	6ES7 307-1EA00-0AA0	SIEMENS	6ED1055-1CB00-0BA0
SIEMENS	6ES7 134-4GB11-0AB0	SIEMENS	6GK5004-1BD00-1AB2	SIEMENS	6SE7031-7HH84-1HJ0
SIEMENS	6GK5 204-2BC10-2AA3	SIEMENS	6AV6 641-0BA11-0AX1	SIEMENS	6EP1336-3BA00
SIEMENS	6ES7 193-4DL10-0AA0	SIEMENS	6AV2181-8XP00-0AX0	SIEMENS	6GK5101-1BB00-2AA3
SIEMENS	6GK1500-3AA00	SIEMENS	6ES7 313-5BF03-0AB0	SIEMENS	6ES7 133-1BL11-0XB0

Digital Input Module

The Digital Input Module is an 8-channel digital input module for the SIMATIC ET 200SP system, providing reliable 24V DC signal acquisition in industrial automation environments. This standard module complies with IEC 61131 Type 3 specifications and features sink input (PNP) functionality with adjustable input delay from 0.05 to 20 ms for application flexibility.

Compatible with BU-type A0 BaseUnits and identified by color code CC01, the module integrates comprehensive diagnostics monitoring for sensor supply short-circuits, wire breaks, and supply voltage issues. These diagnostic capabilities significantly enhance system reliability and facilitate quick troubleshooting, thereby minimizing potential downtime in production environments.

The module's robust design ensures stable performance in demanding industrial applications while supporting seamless integration with SIMATIC control systems. This combination of features makes the Digital Input Module an ideal solution for various automation applications requiring reliable digital input processing with advanced diagnostic functionality.
