Siemens 6ED1052-1FB08-0BA0 LOGO! 230RCE Logic Module

Inquiry now

LOGO! 230RCE · COMPACT LOGIC CONTROL

Siemens 6ED1052-1FB08-0BA0

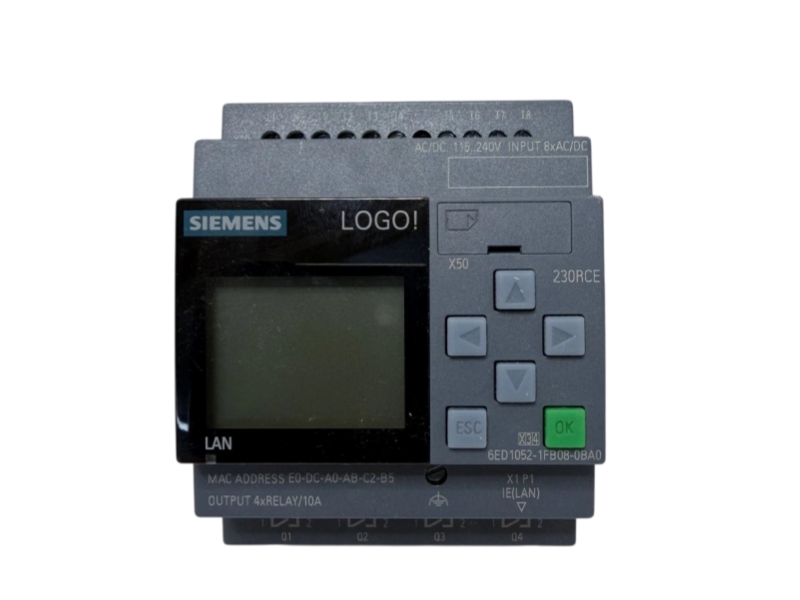

LOGO! 230RCE Logic Module with Display

Siemens 6ED1052-1FB08-0BA0 is a LOGO! 230RCE logic module with an integrated display, eight digital inputs and four relay outputs. The catalogue identifies the 115 V/230 V supply and I/O version, a program capacity of 400 blocks, Ethernet communication and an integrated web server. The unit supports modular expansion, data logging, user-defined web pages and standard microSD cards. Siemens lists this exact article as discontinued, so replacement planning should preserve the full suffix and installed project details. Stockoems coordinates condition evidence, compatibility requirements and shipment options for customers sourcing this specific module.

Commercial Status

Original newIn stockWith 1 year warrantyOfficial Life Cycle: Discontinued

Condition, availability and warranty are Stockoems commercial information, not promises made by Siemens. Worldwide shipping options are reviewed against the destination and order requirements.

Key Product Information

Manufacturer: Siemens

Complete Part Number: 6ED1052-1FB08-0BA0

Series: LOGO! 230RCE

Product Type: Logic module with display

Digital Inputs: 8

Digital Outputs: 4 relay outputs

Program Capacity: 400 blocks

Communication Interface: Ethernet

Supply / I/O Version: 115 V / 230 V / relay

Expansion: Modularly expandable

Web Server: Integrated

Official Life Cycle: Discontinued

Inputs, Logic and Relay Outputs

Match the field wiring and application program to the exact LOGO! version.

Digital inputs · field signals
Eight digital inputs form the base input configuration. Verify the installed signal wiring and voltage requirements for the 230RCE version before replacement.
Logic and display · local control
The module combines a display with a program capacity of 400 blocks. Review the application in the appropriate LOGO! Soft Comfort engineering environment.
Relay outputs and Ethernet · control and access
Four relay outputs provide the documented output configuration. Ethernet, the integrated web server and data logging support the configured application; relay loads and protection must be checked separately.

Application Planning

Typical project scenarios to assess with the responsible automation engineer include:

Compact machine sequences using digital inputs and relay outputs.
Lighting or ventilation control projects with suitable electrical interfaces and validated programs.
Small automation installations using Ethernet access and configured web pages.
Maintenance of an installed LOGO! 230RCE project requiring this exact discontinued article.

Compatibility and Revision Notice

Compare the complete article number and suffix, installed program, engineering software, expansion modules, input wiring and relay load requirements. This 230RCE version must not be treated as a low-voltage LOGO! variant. The official description specifies LOGO! Soft Comfort V8 or higher; verify the actual project and device revision before commissioning. Installation and electrical work require qualified personnel.

Product Questions

01 / What is 6ED1052-1FB08-0BA0?

It is the Siemens LOGO! 230RCE logic module with display, eight digital inputs and four relay outputs. The complete 0BA0 suffix identifies the requested article.

02 / Does this module have relay or transistor outputs?

Siemens specifies four relay outputs for this exact article. Review the connected load and protection requirements rather than assuming the characteristics of a transistor-output version.

03 / Which communication and storage features are listed?

The catalogue lists Ethernet, an integrated web server, data logging, user-defined web pages and support for standard microSD cards. Card inclusion must be agreed in the supplied order scope.

04 / Which engineering software is specified?

The official description specifies LOGO! Soft Comfort V8 or higher and states that older projects are executable. Check the installed program, device revision and any expansion modules before a replacement is commissioned.

05 / Is 6ED1052-1FB08-0BA0 discontinued?

Yes. Siemens lists PM500: Discontinued Product or end of PLM & Support, with the end of product lifecycle dated 1 October 2022. The manufacturer listing says the product is no longer available. Stockoems stock and warranty terms are separate commercial information.

06 / What condition and warranty does Stockoems offer?

Stockoems lists this product as Original new and In stock, with the commercial offer With 1 year warranty. Confirm the supplied unit, order scope and written warranty terms before purchase. These are Stockoems commercial terms, not a manufacturer warranty promise.

Request This Logic Module

Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.

Email: sales6@apterpower.com
WhatsApp: +86 18159889985

Email Sales WhatsApp Sales

STOCKOEMS PROCUREMENT SUPPORT

From Part Identification to After-Sales Care

For Siemens 6ED1052-1FB08-0BA0, purchasing review starts with the complete LOGO! article number and continues through condition evidence, engineering checks, shipment preparation and written support terms.

Identify the Offered Unit

Technician checking an automation module label beside equipment shelves

Careful identification supports a clear and consistent purchasing record.

01 / Model and Condition Evidence

Model and suffix verification: compare the complete article number on the inquiry, quotation and product label.

Condition confirmation: review the offered condition and visible housing, connectors, seals and packaging. Disclose any inspection limitations.

Product and label photo confirmation: request clear photographs of the actual offered unit before order approval.

Review the Engineering Requirement

02 / Technical Compatibility Review

For this LOGO! logic module, record the installed article suffix, program and device revision. Review the 230RCE electrical version, relay outputs, expansion modules, Ethernet settings and LOGO! Soft Comfort project with the responsible engineer.

Visual inspection does not establish electrical performance or program compatibility. Any testing scope must be agreed and documented. Stockoems coordinates product information; qualified site personnel retain responsibility for electrical installation, application validation and commissioning.

Two team members checking an industrial component together in the warehouse

Technical and purchasing teams benefit from reviewing the same product evidence.

Prepare, Dispatch and Support

Protective Packaging
Plan protective wrapping, connector protection, cushioning and a suitable outer carton. Use anti-static handling and packaging where the component requires it. Check the packed item against the agreed order scope.
Worldwide Shipping and Shipment Tracking
Coordinate available transport options with the destination country and shipment requirements. Share tracking information after dispatch. Transit schedules are confirmed for the order rather than promised as a universal delivery time.
Customs Documentation
Prepare the commercial invoice, packing details and available supporting documents as agreed. Align consignee information and customs requirements before shipment; destination clearance remains subject to the applicable process.
Written Warranty Terms and Return Authorization Process
The Stockoems commercial offer is With 1 year warranty. Review written coverage, exclusions, claim evidence and return conditions before purchase. A return requires authorization before shipment back to the seller.
After-Sales Response
Send the order details, label photographs and issue description so the team can review the case and coordinate follow-up. No repair outcome, response deadline or replacement availability is assumed without confirmation.

A Coordinated Purchasing Process

Stockoems brings part identification, condition evidence, packing requirements, logistics coordination and after-sales communication into one order discussion. Keeping these checks aligned helps direct users, purchasing teams and engineers evaluate the same offer. Product condition, stock availability and warranty remain Stockoems commercial information, separate from Siemens technical specifications.

Industrial Supplier Screening FAQ

How can a direct user identify a qualified industrial automation supplier?

Ask for the full part number, legible label photographs, disclosed condition and written warranty terms for the actual unit. Compare these with the installed equipment record. A supplier should identify the scope of its checks and disclose any missing evidence.

What should procurement teams verify before payment?

Check the legal seller identity, quotation consistency, actual product photographs, order scope, packaging responsibilities, shipping terms and return authorization procedure. Be cautious about changing bank details, unexplained substitutions or pressure to pay before the offered unit is identified.

What evidence should an engineer request for this logic module?

Request legible label and terminal photographs, the device revision, order-scope details and the documented basis for project compatibility review. Compare the installed program, wiring and expansion modules. Application validation and commissioning remain the responsibility of qualified site personnel.

Which warning signs deserve further investigation?

Unreadable or inconsistent labels, recycled catalogue photographs presented as actual stock, unsupported manufacturer authorization claims, guaranteed compatibility without project details and refusal to provide written warranty or return terms are warning signs.

How are after-sales questions handled?

Provide the order number, complete part number, label photographs and a clear description of the issue. Stockoems reviews the supplied information and coordinates the next steps. Obtain return authorization before sending a unit back; the agreed written terms govern warranty handling.

Discuss Your Order Requirements

Send the complete part number, quantity, destination and available label photographs. Include the installed revision and any site-specific compatibility requirements.

Email: sales6@apterpower.com
WhatsApp: +86 18159889985

Email Sales WhatsApp Sales
