A 15-inch widescreen industrial flat panel with resistive single-touch operation, 1366 × 768 resolution, DisplayPort and VGA.

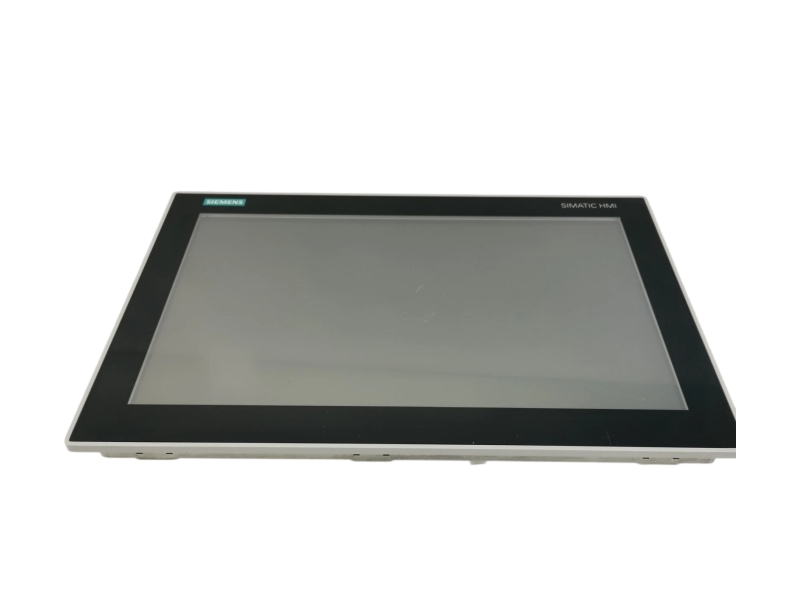

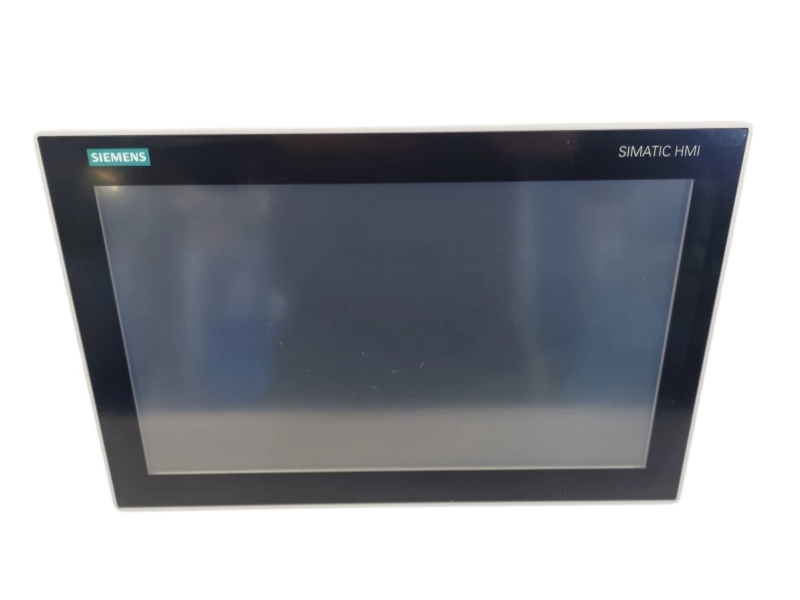

Siemens 6AV7862-2BD00-0AA0 is the SIMATIC IFP1500 Basic industrial flat panel. The official Siemens catalog specifies a 15-inch-class 16:9 TFT display with LED backlighting, analog-resistive single-touch input and 1366 × 768 resolution. DisplayPort and VGA interfaces support connection to an industrial computer at a standard distance of up to 5 m, while 24 V DC power and panel or VESA mounting support machine and cabinet visualization applications.
| Order code | 6AV7862-2BD00-0AA0 |
|---|---|
| Official catalog description | SIMATIC IFP1500 Basic Flat Panel, 15-inch touch display |
| Lifecycle evidence | PM300: Active Product |
| Procurement action | Confirm the complete -0AA0 suffix, video interface, touch technology, mounting method and cable length. |
| Parameter | Official value |
|---|---|
| Product type | SIMATIC IFP1500 Basic Flat Panel |
| Display technology | TFT with LED backlighting |
| Screen format | 15-inch class / 15.6 in, 16:9 |
| Resolution | 1366 × 768 pixels |
| Color depth | 16 million colors |
| Touch technology | Analog-resistive single-touch screen |
| Video interfaces | DisplayPort and VGA |
| Standard connection length | Up to 5 m from the computer unit |
| Rated supply | 24 V DC |
| Permissible supply range | 20.4 to 28.8 V DC |
| Backlight MTBF at 25 °C | 50,000 h |
| Backlight dimming | 0 to 100% |
| Mounting | Built-in front mounting or VESA 100 × 100 |
| Orientation | Landscape or portrait |
| Net weight | 5.603 kg |
Confirm the panel cutout or VESA mounting, 24 V DC power, DisplayPort or VGA cabling, touch connection, cable length and portrait or landscape orientation before installation.
Verify all characters and the complete -0AA0 suffix.
Confirm screen size, 1366 × 768 resolution and panel cutout.
Verify analog-resistive single-touch operation suits the application.
Check DisplayPort or VGA source compatibility and cable length.
Confirm 20.4–28.8 V DC and panel or VESA installation.
Request clear display, rear-label, connector and enclosure photos.
It is a Siemens SIMATIC IFP1500 Basic industrial flat panel with a resistive single-touch display.
The official Siemens datasheet specifies 1366 × 768 pixels.

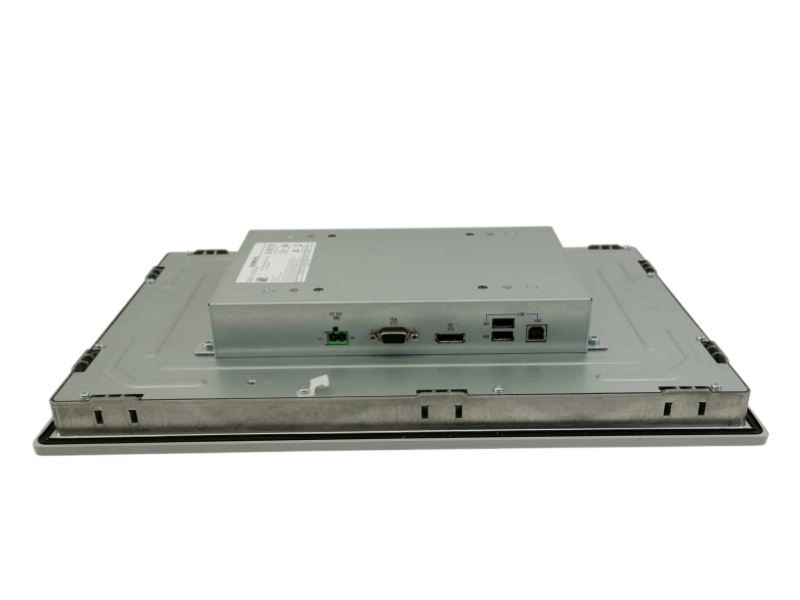

Siemens lists DisplayPort and VGA interfaces for connection to the computer unit.
Yes. The official data supports portrait and landscape installation, including VESA 100 × 100 mounting.
Match the full order code, panel cutout or VESA pattern, 24 V DC supply, touch type, video interface and cable length.
Send the complete 6AV7862-2BD00-0AA0 order code, quantity, hardware or firmware details, destination and required delivery date. Our team can review visible condition, configuration fit, warranty terms and global shipping options before quotation.
For 6AV7862-2BD00-0AA0, our service workflow focuses on traceable identification, practical compatibility review, careful handling and clear communication from enquiry through dispatch.
We translate the requested 6AV7862-2BD00-0AA0 order code, industrial flat panel role and interface requirements into a clear sourcing brief.
Visible labels, packaging details and supplied accessories can be checked against the purchase requirement.
Industrial components are handled, protected and prepared for shipment with attention to condition and documentation.
We check the entire Siemens article number, including every suffix, before matching available units.
Display size, touch technology, video interface, mounting, power supply and cable length are reviewed against the target industrial PC.
Available photos, labels, accessories and packaging can be reviewed before the order is finalized.
Export packing, destination details, shipping options and delivery expectations are coordinated clearly.
Warranty scope is stated with the quotation so buyers can compare commercial risk and coverage.
Email and WhatsApp channels support fast clarification of quantities, revisions and urgent replacement needs.
