Verified product identity, system fit and procurement checks
Product Overview
The Siemens 6AV3627-1LK00-1AX0 is a SIMATIC HMI OP27 operator panel with a 5.7-inch STN color display and membrane-key operation. Siemens product data identifies a 240 x 320 pixel display, eight colors, 24 function keys and multiple serial communication interfaces for established automation systems. The panel uses a 24 V DC supply and was configured with ProTool. Because this is a legacy HMI platform, procurement review should include the complete suffix, existing project backup, configuration-software version, controller protocol, cable pinout, panel cutout, connector condition and firmware or hardware revision before replacement or restoration.
Commercial Status
Product Condition
Original new
Availability
In stock
Official Lifecycle
No named lifecycle status stated in the reviewed exact official data sheet
Warranty
With 1 year warranty
Shipping
Worldwide shipping options available
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
Manufacturer
Siemens
Complete Part Number
6AV3627-1LK00-1AX0
Product Type
SIMATIC HMI OP27 key operator panel
Display
5.7-inch STN color LCD, 8 colors
Resolution
240 x 320 pixels
Control Elements
Membrane keys
Function Keys
24; 18 with LEDs
Rated Supply
24 V DC
Rated Current
0.3 A
Interfaces
1 x TTY, 2 x RS232, 1 x RS422, 1 x RS485
Maximum Transfer Rate
12 Mbit/s
Operating System
RMOS
Processor
x86, 33 MHz
Configuration Software
ProTool Version 3.1 or higher
Degree of Protection
Front IP65; rear IP20
Dimensions
296 x 192 x 59 mm
Net Weight
1.85 kg
Country of Origin
Germany

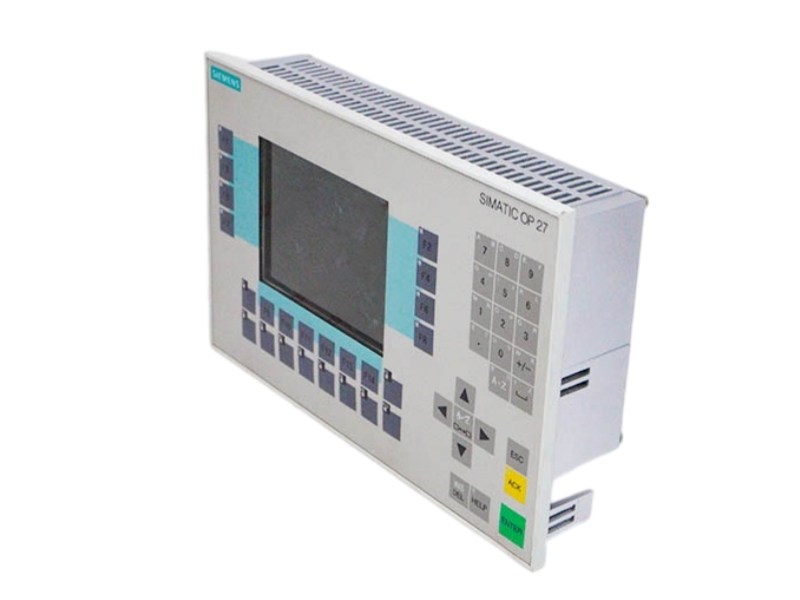

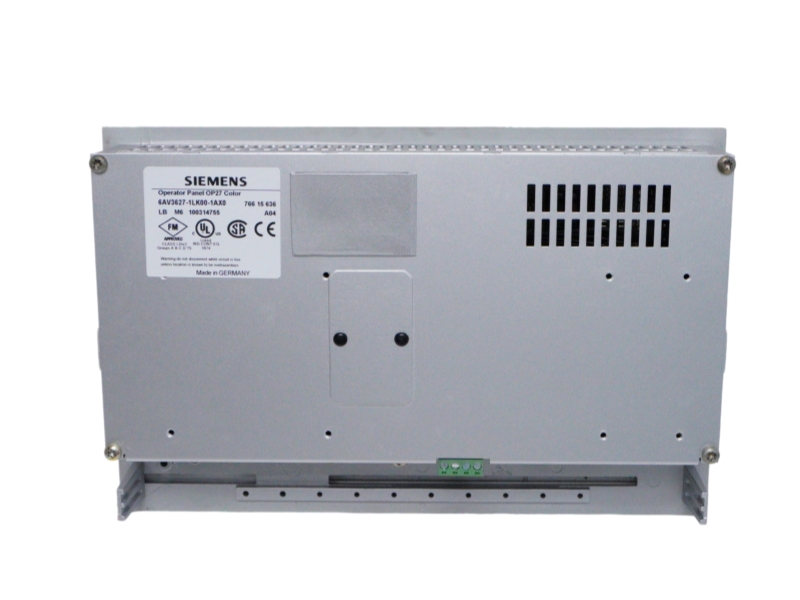

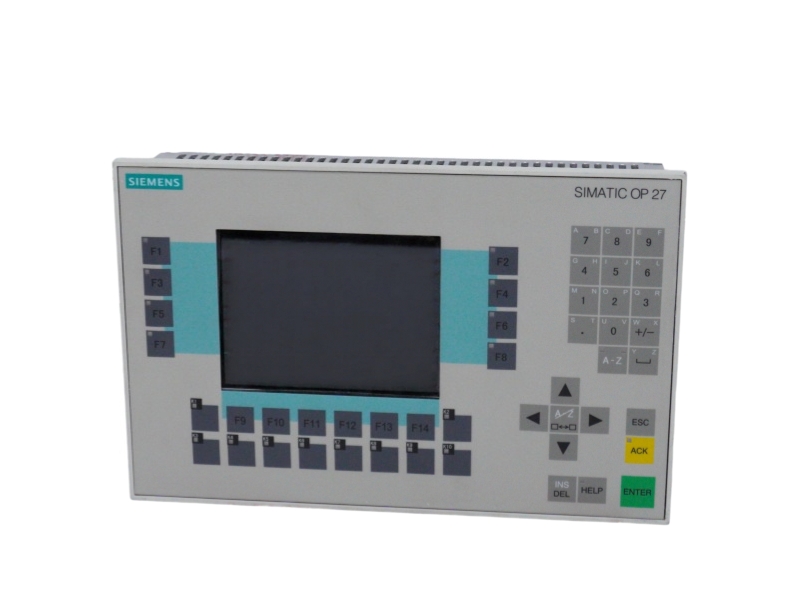

Product Photo Evidence
System Fit and Applications
System Fit
SIMATIC and supported legacy controller connections defined in the original OP27 project
System Role
Local machine operation, alarm viewing, status display and keyed command entry
Typical Applications
Production machinery, operator stations, process visualization and verified legacy HMI replacement
Critical Checks
Complete suffix, project backup, ProTool version, controller protocol, cable pinout, 24 V supply, panel cutout, firmware and hardware revision
Compatibility and Procurement Checks
Confirm the exact OP27 suffix, project backup, ProTool version, controller protocol, serial interface, cable pinout, 24 V supply, panel cutout and installed revision. A visually similar OP27 or later panel is not guaranteed to accept the same project or wiring.
Lifecycle Note
The reviewed exact Siemens product data sheet describes 6AV3627-1LK00-1AX0 as available in exchange only but does not state one of the named lifecycle classifications required for this page. No lifecycle status is inferred. Preserve the original project and verify software, cable and controller compatibility.
Frequently Asked Questions
What does 6AV3627-1LK00-1AX0 identify?
It identifies a Siemens SIMATIC HMI OP27 key operator panel with an STN color display.
What display is provided?
The official data sheet states a 5.7-inch, 240 x 320 pixel STN display with eight colors.
Which operator controls are included?
The panel uses membrane keys and has 24 function keys, including 18 with LEDs.
Which interfaces are documented?
The official data lists TTY, RS232, RS422 and RS485 interfaces, with up to 12 Mbit/s where applicable.
What is the official lifecycle status?
The exact data sheet says available in exchange only but does not state a named lifecycle classification, so no lifecycle label is inferred.
What should be checked before replacement?
Verify the suffix, project backup, ProTool version, controller protocol, cabling, supply, cutout and hardware revision.
