A 5.7-inch blue STN keypad operator panel with MPI, PROFIBUS DP, serial and CF-card support.
Siemens 6AV6542-0BB15-2AX0 is the SIMATIC HMI OP170B operator panel with a 5.7-inch blue STN display, 320 × 240 pixel resolution and membrane keyboard. The panel provides 24 function keys, including 18 keys with LEDs.
The OP170B supports MPI and PROFIBUS DP communications, serial printer or controller connections, CF-card storage and configuration with ProTool/Lite V5.2 SP2 or later or WinCC flexible Compact 2004 or later.
| Official Product Record | |
|---|---|
| Complete order number | 6AV6542-0BB15-2AX0 |
| Manufacturer | Siemens |
| Product type | SIMATIC OP170B Operator Panel |
| Product family | SIMATIC HMI OP170B |
| Commercial status | Spare Part |
| Parameter | Official specification |
|---|---|
| Display | 5.7-inch STN, 4 blue levels |
| Resolution | 320 × 240 pixels |
| Backlight MTBF | 50,000 h at 25 °C |
| Control elements | Membrane keyboard |
| Function keys | 24; 18 with LEDs |
| System keys | 35 |
| Processor | RISC 32-bit, 66 MHz |
| User memory | 768 KB Flash / RAM |
| Interfaces | Optional TTY, 2 × RS232, 1 × RS422, 1 × RS485 |
| Maximum RS485 rate | 12 Mbit/s |
| Removable storage | 1 × CF card slot |
| Operating system | Windows CE |
| Configuration software | ProTool/Lite V5.2 SP2 or higher; WinCC flexible Compact 2004 or higher |
| Front / rear protection | IP65 / IP20 |
| Typical power input | 6 W |
| Rated current consumption | 0.25 A |
| Dimensions | 240 × 252 × 45 mm |
| Weight | 0.9 kg |

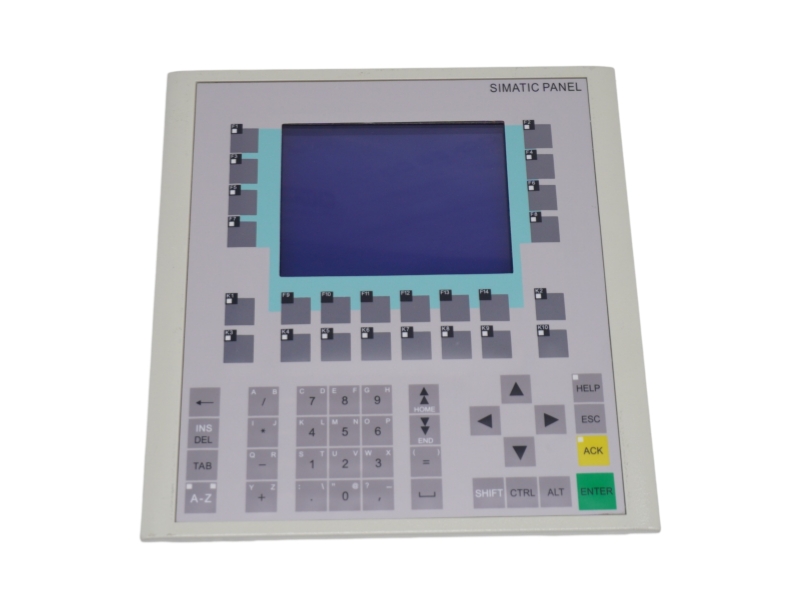

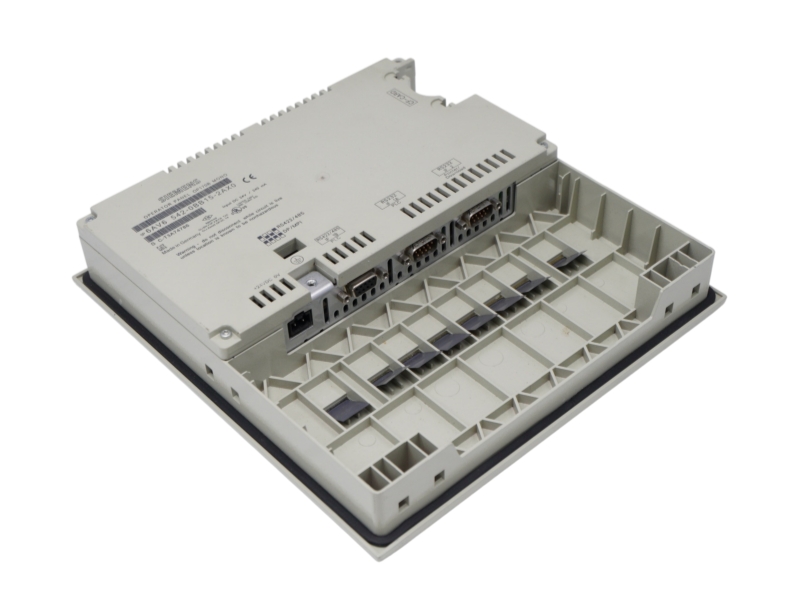

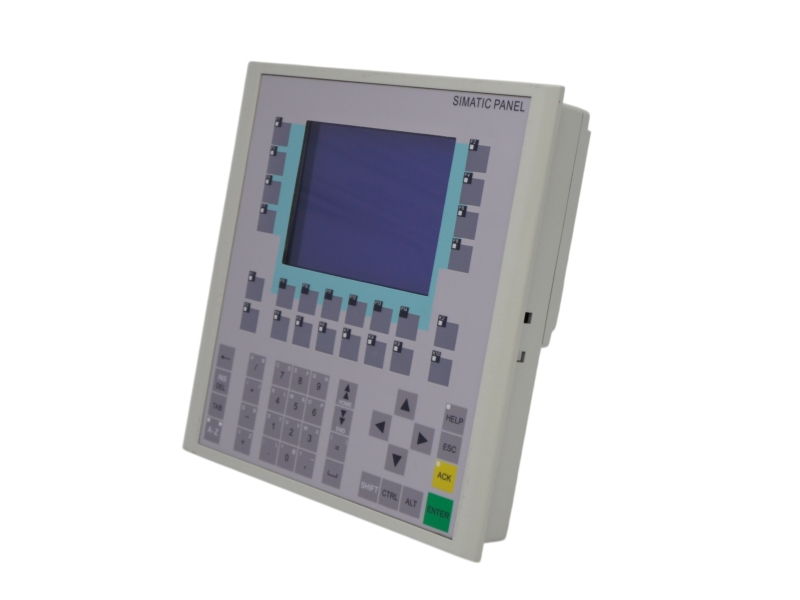

Use three current images to record identity, connection points and overall condition.
|
 . |
|
| Application | Product role |
|---|---|
| Machine operator station | Displays process values, alarms, recipes and configurable operator screens. |
| SIMATIC controller networks | Connects to S7-200 and S7-300/400 over MPI or PROFIBUS DP. |
| Legacy HMI replacement | Supports OP170B maintenance when project software, interfaces and panel cutout are matched. |
The Siemens product data sheet marks 6AV6542-0BB15-2AX0 as a Spare Part. Procurement should preserve the exact panel variant, project backup, communication settings and physical mounting dimensions.
It uses a 5.7-inch STN display with four blue levels and 320 × 240 pixel resolution.
Siemens specifies ProTool/Lite V5.2 SP2 or higher or WinCC flexible Compact 2004 or higher.
Confirm the order number, cutout, serial and MPI/DP connections, project file, CF-card backup and configured drivers.
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
Panel identity review, project and interface checks, visual condition documentation, protected packing and delivery coordination.
Panel IdentificationOrder number, revision, display and keypad condition are recorded. |
Project ReadinessConfiguration software, project backup, CF card and communications are reviewed. |
Protected LogisticsFront membrane, display, rear ports and mounting edges are protected. |
| Stage | Review item | Procurement value |
|---|---|---|
| Identity | Label, front panel, rear label and revision | Confirms the exact OP170B variant |
| Project fit | Project file, software version, drivers and CF backup | Supports restoration on the replacement panel |
| Installation | Panel cutout, power and interface cables | Reduces mechanical and communication mismatch |
The review covers the 5.7-inch STN display, membrane keyboard, LED function keys, MPI/PROFIBUS DP port, RS232/RS422/RS485 interfaces, CF-card slot, panel cutout, ProTool or WinCC flexible project and configured controller drivers.
| Packing | Anti-static or impact protection appropriate to the supplied product, with reinforced outer packing |
| Condition record | Label and physical-condition photographs retained with the supply record |
| Delivery | Trackable international shipment to the confirmed destination |
| Warranty | Terms stated in the quotation for the specific offered item |
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
